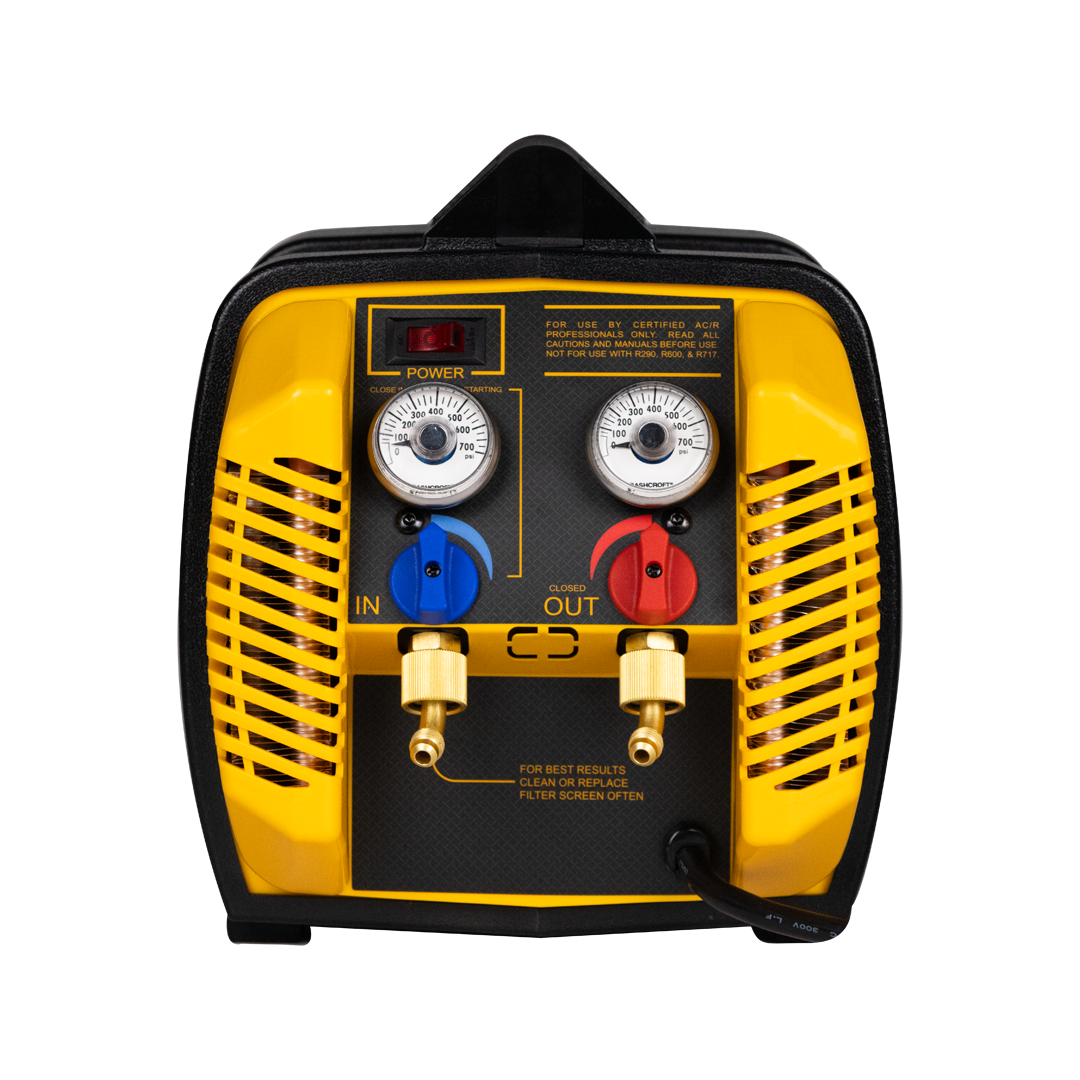

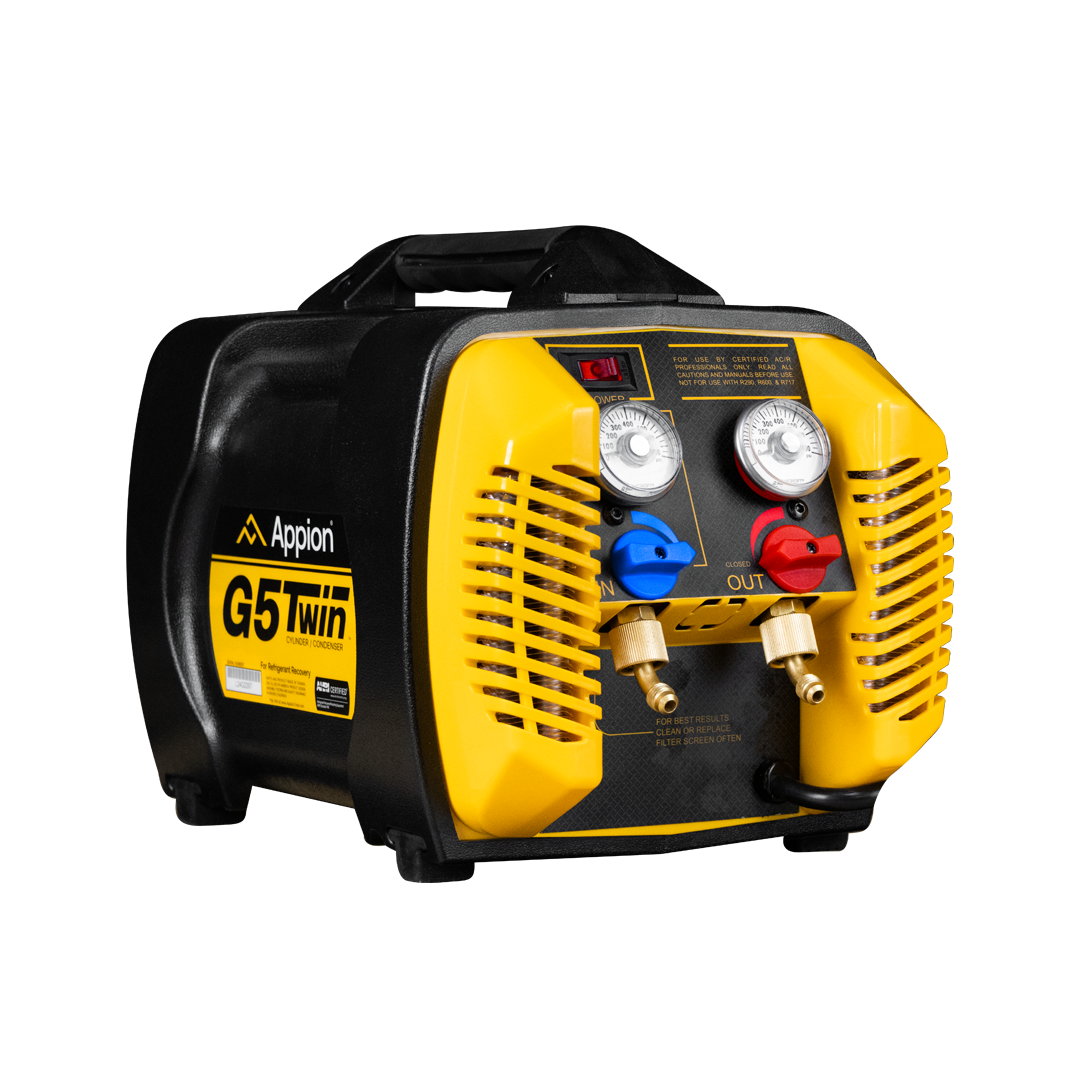

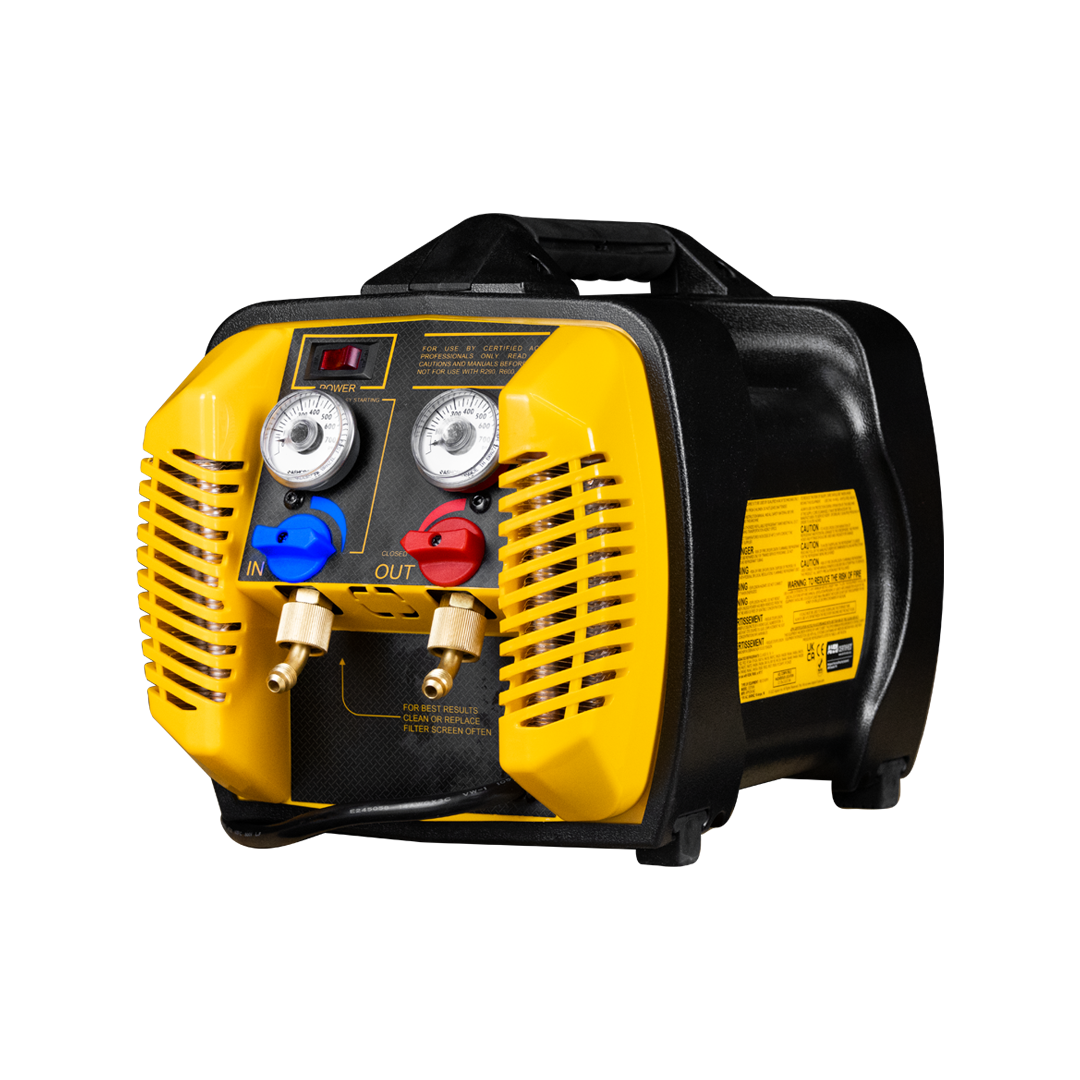

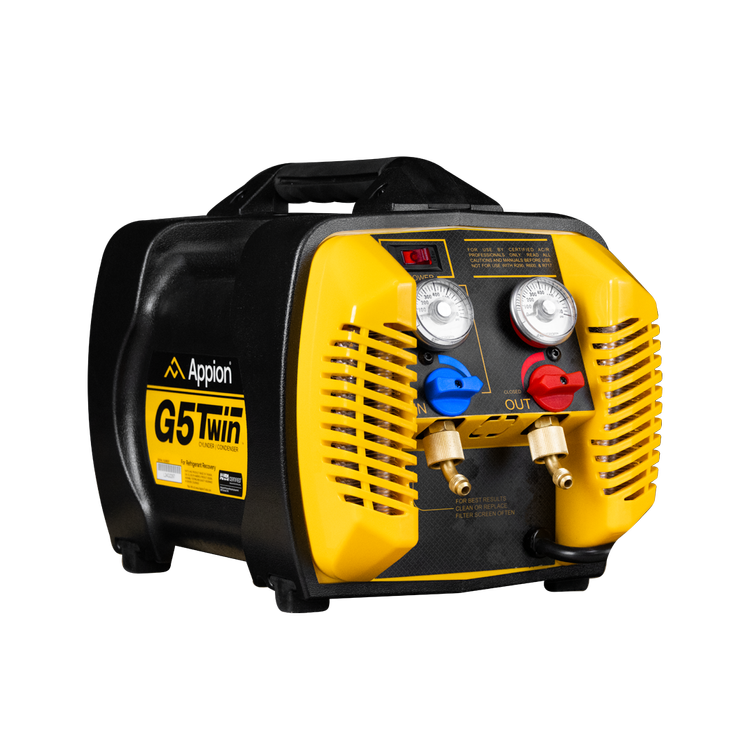

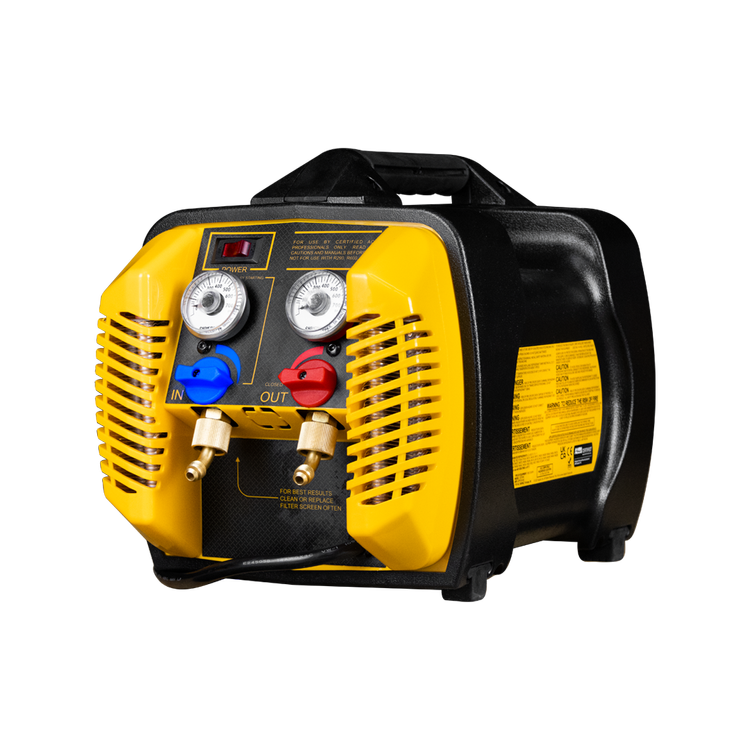

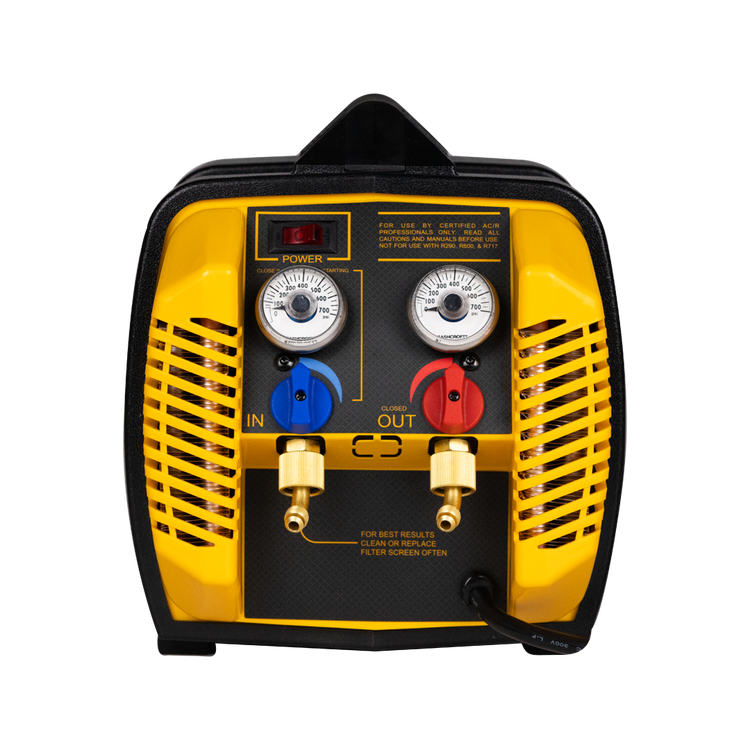

Left side view of the Appion G5Twin refrigerant recovery machine Right side view of the Appion G5Twin refrigerant recovery machine Front view of the Appion G5Twin recovery machine showing gauges and controls Appion G5Twin product packaging box Appion G5Twin product specifications chart
360° Product View G5Twin in motion

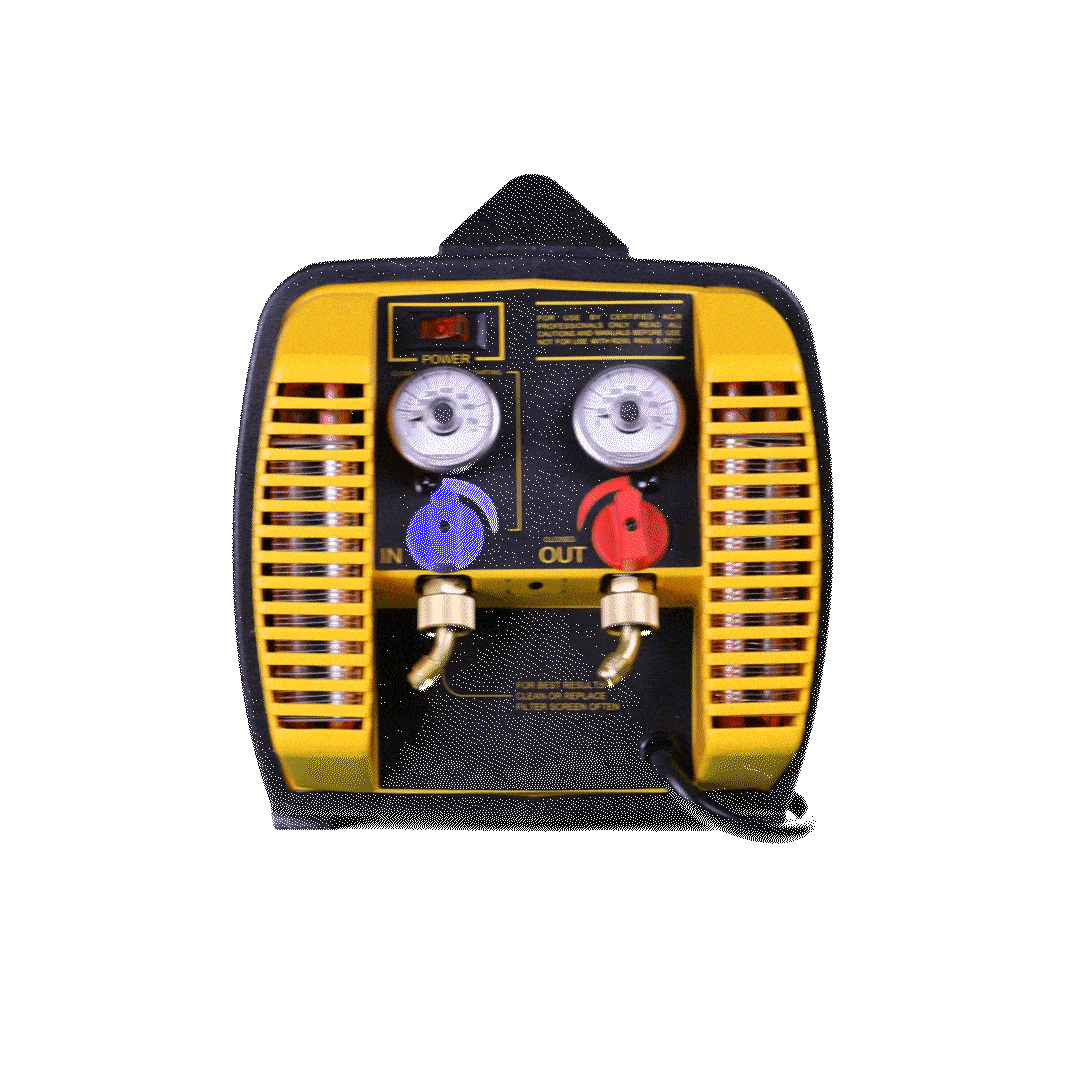

Rotating 360 degree view of the Appion G5Twin refrigerant recovery machine

Appion HVAC/R Tools

G5TWIN - Refrigerant Recovery Machine

Ultra-fast, high-volume refrigerant recovery for professional HVAC/R technicians. Compact, powerful and built for serious commercial and industrial recovery work.

Available exclusively through your local distributor
SKU G5TWIN
UPC 818369010000
Weight 10.9 kg / 10,886 g
Power 240 VAC, 60 Hz, 10 Amps
Dimensions 289.6 x 261.6 x 238.8 mm / 11.4 x 10.3 x 9.4 in.
Build Twin cylinders, twin condensers and refrigerant-isolated crankcase
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

G5TWIN

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Ultra-fast recovery

High-volume refrigerant recovery without the bulk.

At only 10.9 kg, the G5Twin is designed to give technicians serious recovery performance in a compact and portable machine. It is built for liquid and vapour recovery across demanding HVAC/R service work and is designed for use with all common refrigerants, including R-454B.

  • Up to 4x faster certified recovery rates compared to other units within its class.
  • Designed for common refrigerants, including R-454B and modern A2L refrigerants.
  • Pumps liquid and vapour without throttling for efficient field recovery.
  • Twin cylinders, twin condensers and turbine fan cooling with over 700 CFM airflow.

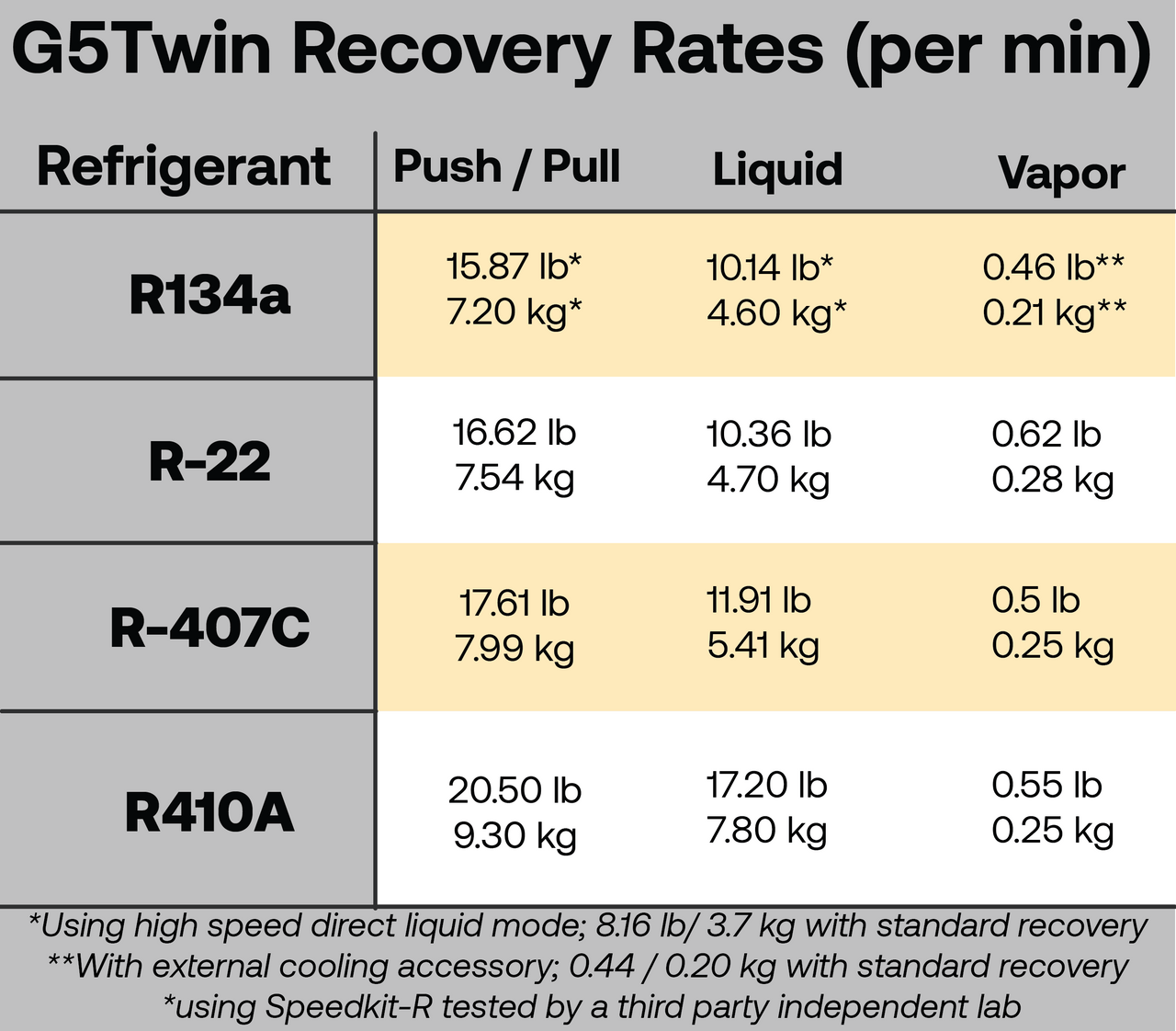

Certified recovery rates

R410A Vapour 0.25 kg/min (0.55 lb/min)
R410A Liquid 7.80 kg/min (17.20 lb/min)
R134a Vapour 0.21 kg/min (0.46 lb/min)
R134a Liquid 4.60 kg/min (10.14 lb/min)

*Rates based on AHRI rating references displayed on the source product page.

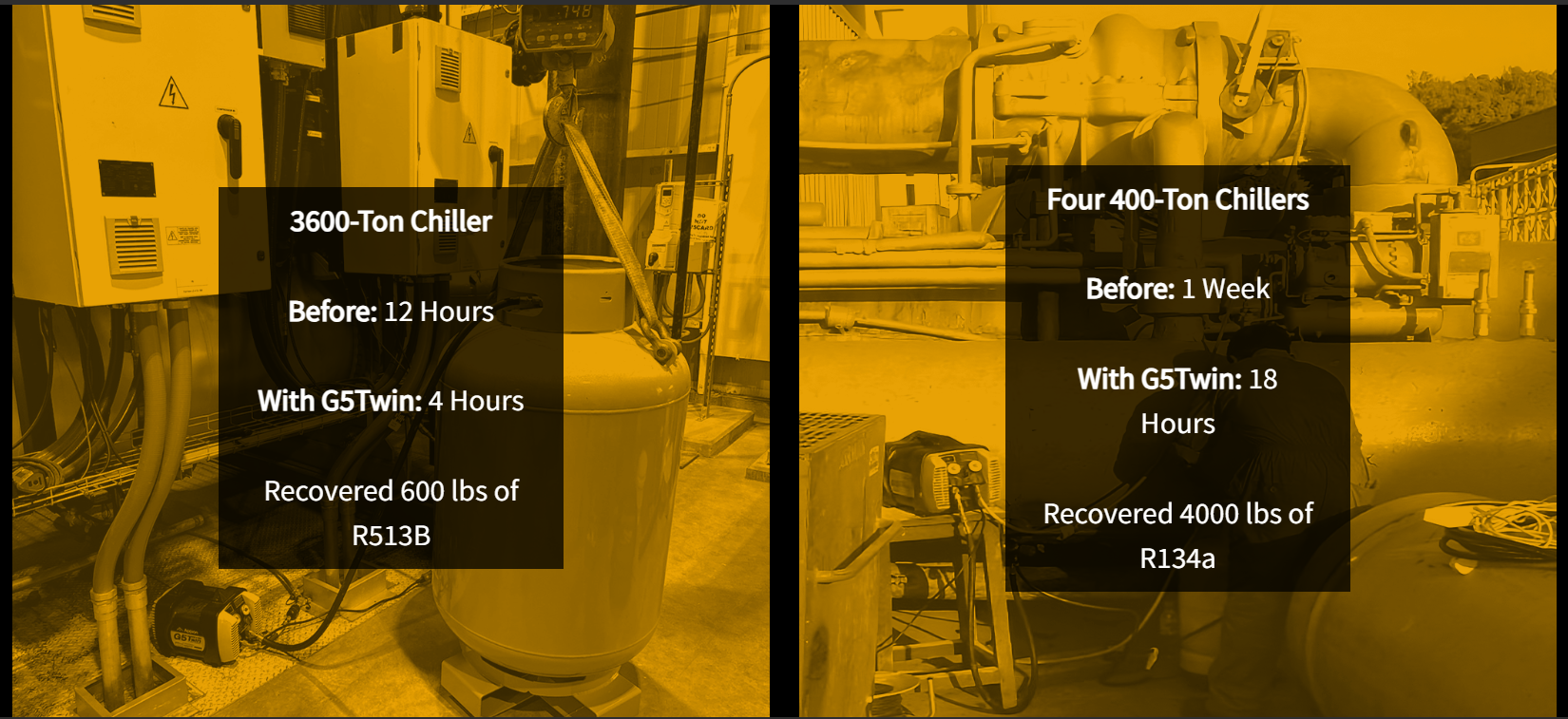

G5Twin refrigerant recovery comparison showing reduced recovery time on large chiller jobs

Refrigerant-isolated crankcase

Built to avoid the weakness of many oil-less recovery machines.

Many oil-less recovery machines depend on oil trapped in the refrigerant to lubricate internal components. The G5Twin is designed differently, with an isolated crankcase that helps protect internal parts during demanding recovery work.

That design helps the G5Twin handle tough recovery conditions while keeping the machine compact, fast and practical for everyday trade use.

Find a Distributor

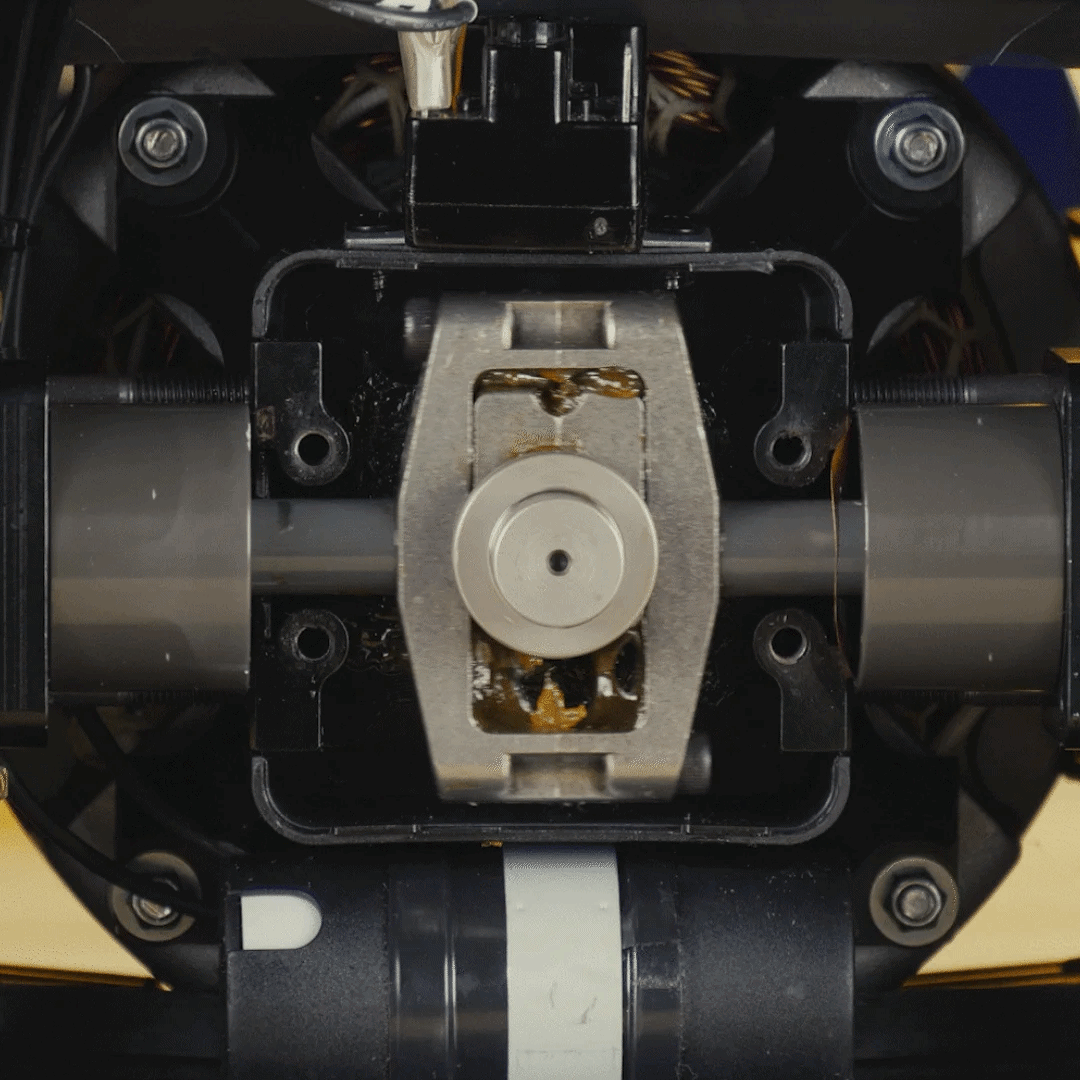

Animated internal view of the Appion G5Twin refrigerant isolated crankcase

Compatible parts & repair kits

Linked G5Twin parts from Omni Tools.

Click any compatible repair kit or replacement part below to open its product page.
G5Twin Rebuild Kit View Part G5Twin (Z) Face Plate Assembly View Part G5Twin 1/4" Angled Fitting Retrofit Kit View Part G5Twin 230V Motor Start Capacitor View Part G5Twin 230V Motor Start Relay View Part G5Twin Front Ball Valve Seat Kit View Part G5Twin Inlet Filter Fitting View Part G5Twin Knob Kit View Part G5 Face Plate Label Lower View Part G5Twin Face Plate Label Top View Part G5Twin Side Label View Part G5Twin Warning Label View Part G5Twin/G1Single Motor Support Bracket View Part

Useful information & technical bulletins

Official Appion PDFs for the G5Twin.

Manufacturer resources and technical bulletins are linked below. US-only certification forms and foreign-language manuals have been left out so this stays useful for Australian customers.

Useful information

Operation Manual Open PDF AHRI Certification Information Open PDF Product Brochure Open PDF Industrial-Commercial Brochure Open PDF Weight, Speed, Reliability Advantage Open PDF Rate Comparisons Open PDF

Technical & safety bulletins

Safely Handling AC/R Tools Open PDF A2L Refrigerant Recovery Open PDF A2L System Evacuation Open PDF A3 Refrigerant Danger Safety Warning Open PDF Refrigerant Storage Container Safety Open PDF Hazards of Using 80% Shut Off Switches Open PDF Why You Should Use Inline Filter Driers Open PDF Protecting Gauges from High Pressure Surges Open PDF Preventing Voltage Drops Through Extension Cords Open PDF Non-Condensables in Refrigerant Recovery Open PDF Preventing Damage to Hose Gaskets and Seals Open PDF
