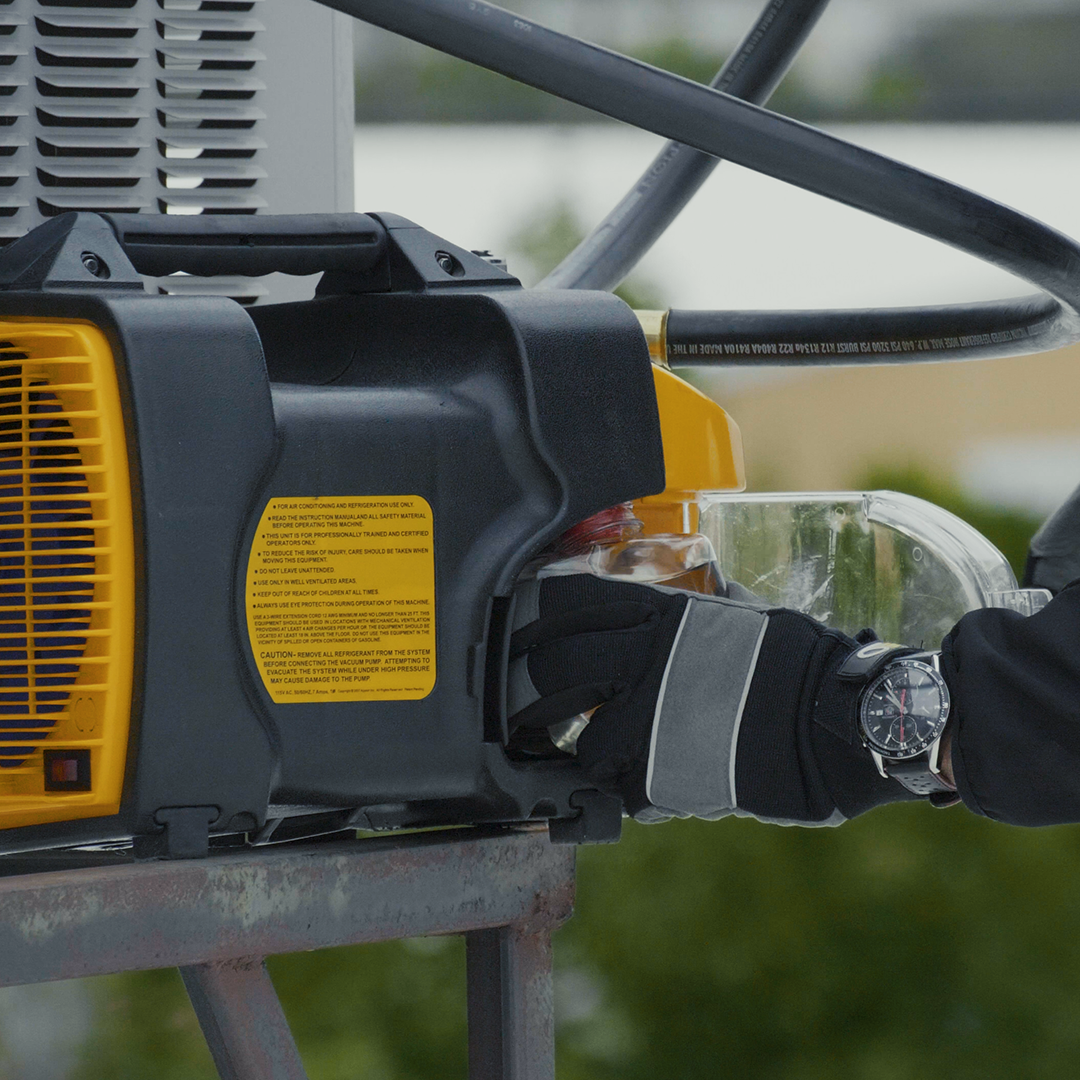

Left side view of the Appion TEZ8 vacuum pump Right side view of the Appion TEZ8 vacuum pump TEZ8 vacuum pump in use on an HVAC/R system Appion TEZ8 product packaging box Appion TEZ8 labelled parts diagram Appion TEZ8 product specifications chart
360° Product View TEZ8 in motion.

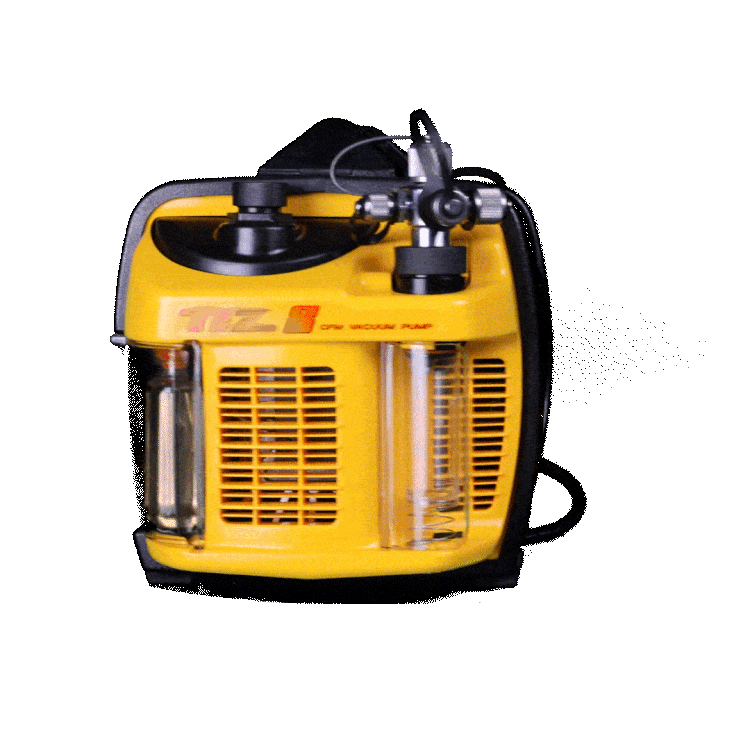

Labelled Appion TEZ8 features including TEZOM cartridge and multi-port input tree

Appion HVAC/R Tools

TEZ8 - 8CFM Vacuum Pump

Two-stage vacuum pump with 5-Second Oil Change™ for fast, clean and efficient AC/R system evacuation.

Available exclusively through your local distributor
SKU TEZ8
UPC 818369010024
Weight 12.7 kg / 12,701 g
Power 240 VAC, 60 Hz, 10 Amps
Flow 8 CFM / 227 L/min @ 60 Hz
Ultimate Vacuum <20 microns
Dimensions 362 x 231.8 x 260.4 mm / 14.25 x 9.125 x 10.25 in.
Inlet Port Fittings 1/4 in., 3/8 in. (x2), 1/2 in.
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

TEZ8

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Two-stage vacuum pump

Fast evacuation with 5-Second Oil Change™.

The TEZ8 was designed from the ground up with the needs of an AC/R technician in mind. From the high-flow Multi-Port Input Tree to the 5-Second Oil Change™, every aspect of the TEZ8 is built for faster evacuation.

  • Field-proven to outperform larger, belt-driven pumps by hours or days.
  • Up to 32 times the flow of single-input pumps through the Multi-Port Input Tree.
  • TEZOM™ cartridge makes it easier to monitor oil condition and change oil on the fly.
  • Debris catch tube helps protect the pump and automatically relieves positive pressure.
  • Two-stage exhaust system, anti-suckback technology and 10-blade turbine fan cooling.

Key performance specs

Free Air Displacement 8 CFM / 227 L/min
Ultimate Vacuum <20 microns
Input Tree 1/4, 3/8 x2, 1/2 in.
Oil Management 5-Second Oil Change™

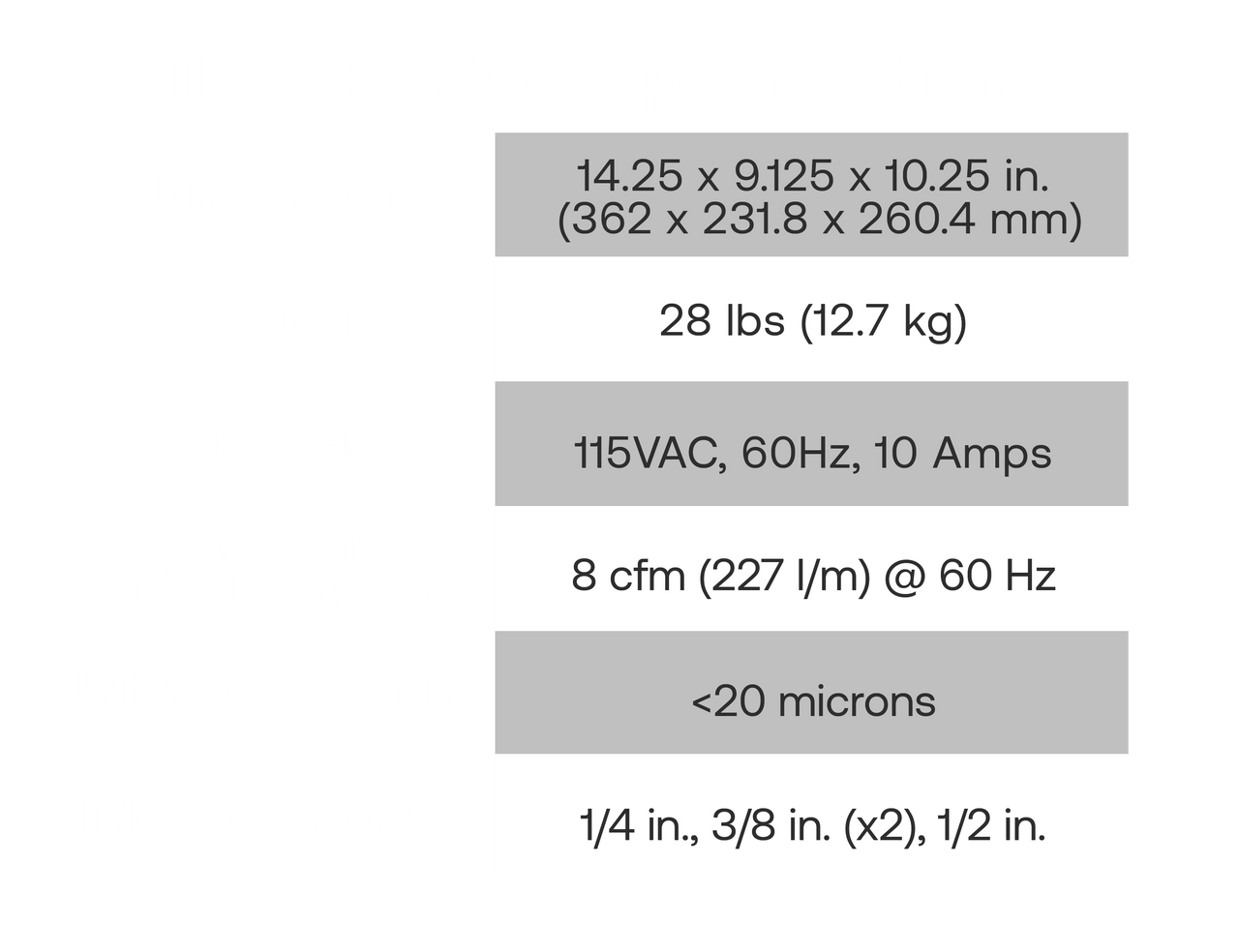

*Specs shown using the TEZ8 product specifications chart and source product page.

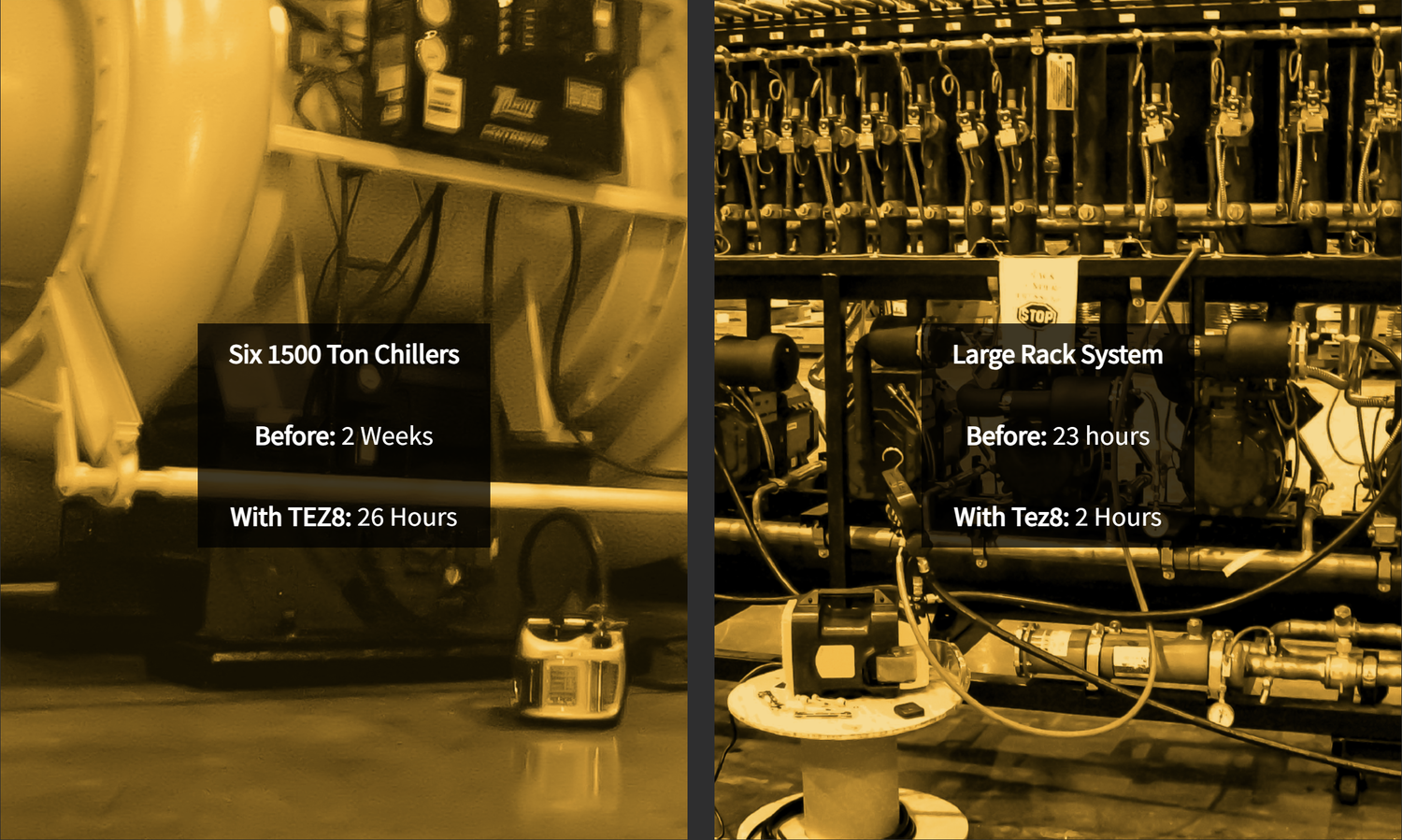

TEZ8 evacuation performance comparison showing faster evacuation on large AC/R work

Clearly visible results

TEZOM™ makes oil condition easy to monitor.

The TEZOM™ cartridge makes it easy to monitor the condition of the oil, while on-the-fly oil changes help remove moisture and dirt from the pump during evacuation work.

With clean oil and full flow, the TEZ8 can help technicians save time, reduce downtime and complete evacuation jobs more efficiently.

The TEZ8 also uses a debris catch tube, two-stage exhaust system, anti-suckback technology and a 10-blade turbine fan that blasts over 700 CFM of cooling air across the pump and oil.

Find a Distributor
Appion TEZ8 labelled parts and TEZOM oil system

Compatible parts & repair kits

Linked TEZ8 parts from Omni Tools.

Click any compatible repair kit or replacement part below to open its product page.
TEZ8 Capacitor View Part TEZ8 Case Left Side Panel (TEZOM side) with Support Feet & Bottom Case Bolts View Part TEZ8 Debris Tube Door View Part TEZ8 Exhaust Chamber Assembly View Part TEZ8 External Repair Kit View Part TEZ8 Front Panel Label View Part TEZ8 Front Panel Port Cover View Part TEZ8 Front Panel w/ Labels View Part TEZ8 Internal Rebuild Kit View Part TEZ8 Motor Support Bracket View Part TEZ8 Oil Port Shipping Cover View Part TEZ8 Side Label View Part TEZ8 TEZOM Cartridge Support Bracket View Part TEZ8 Tezom Door View Part TEZ8 Warning Label View Part TEZ8 Oil Line Kit View Part

Useful information & technical bulletins

Official Appion PDFs for the TEZ8.

TEZ8 product PDFs and safety/technical bulletins from Appion. Foreign-language PDFs and non-PDF video links have been left out.

Useful information

TEZ8 Manual Open PDF Product Brochure Open PDF The TEZ Advantage Open PDF

Technical & safety bulletins

Safely Handling AC/R Tools Open PDF A2L Refrigerant Recovery Open PDF A2L System Evacuation Open PDF A3 Refrigerant Danger Safety Warning Open PDF Refrigerant Storage Container Safety Open PDF Hazards of Using 80% Shut Off Switches Open PDF Why You Should Use Inline Filter Driers Open PDF Protecting Gauges from High Pressure Surges Open PDF Preventing Voltage Drops Through Extension Cords Open PDF Non-Condensables in Refrigerant Recovery Open PDF Preventing Damage to Hose Gaskets and Seals Open PDF

Ready to source the TEZ8?

Find your nearest authorised distributor.

Omni Tools supports Appion products across Australia through local distributors, service information and warranty pathways.

Find a Distributor Contact Omni Tools
