Appion HVAC/R Tools

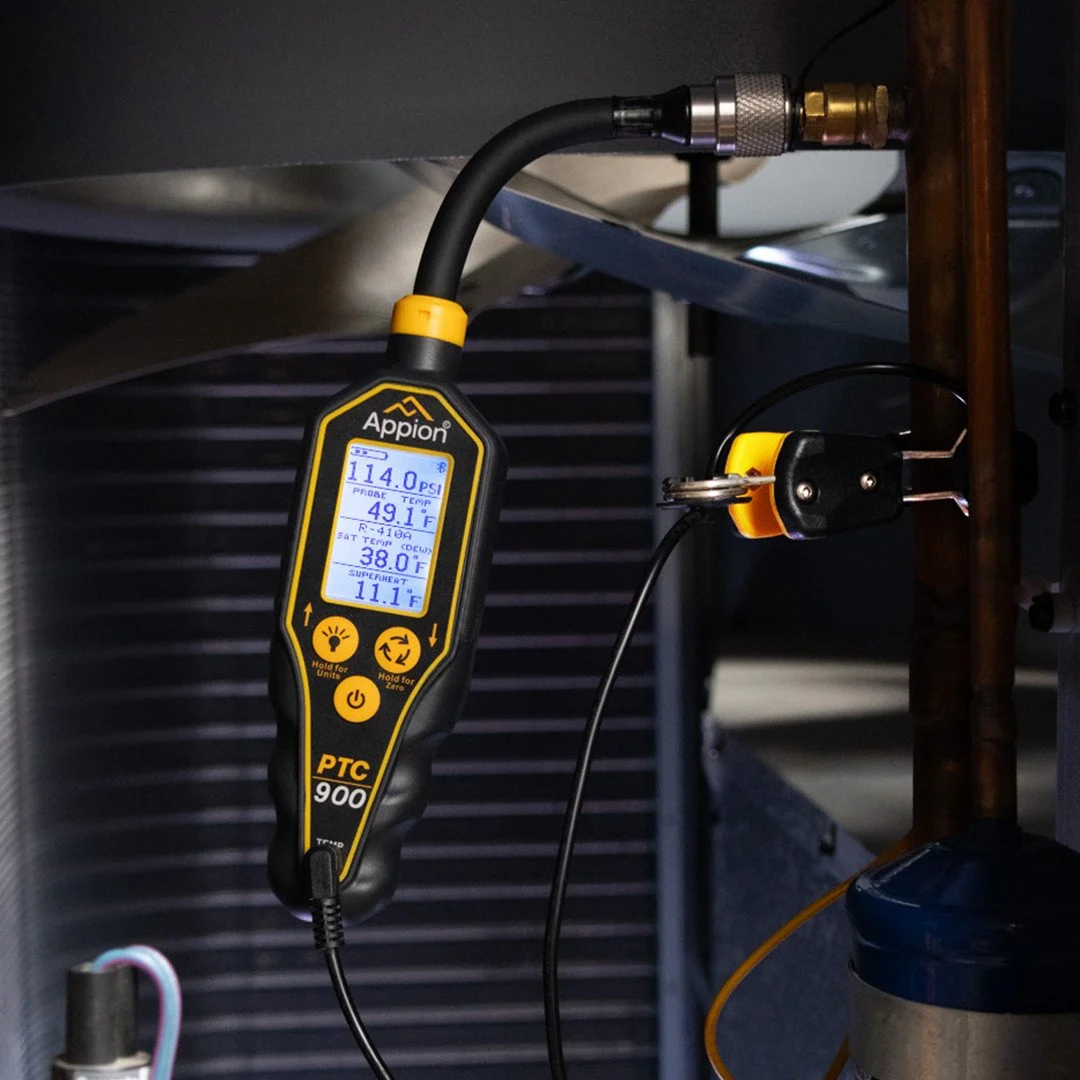

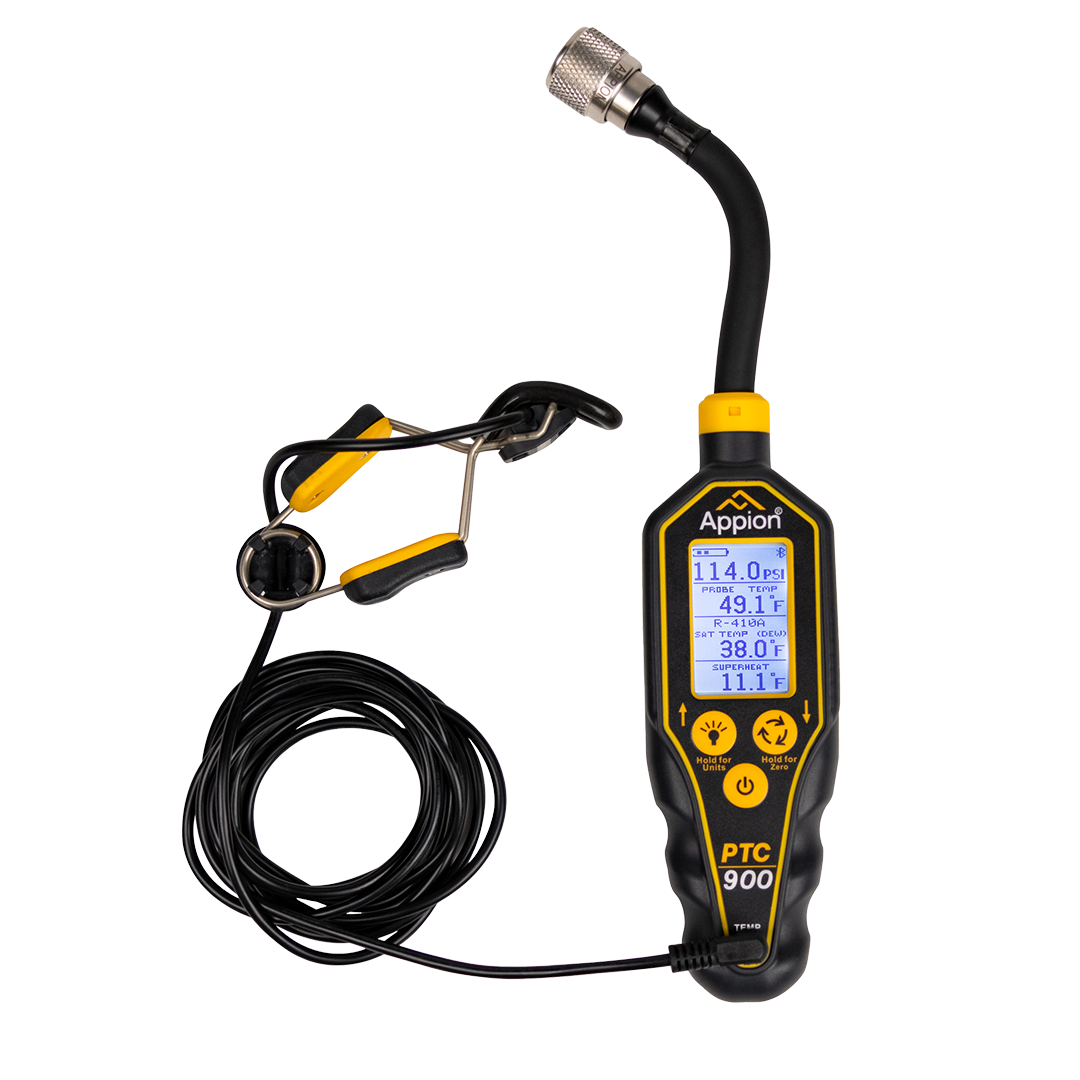

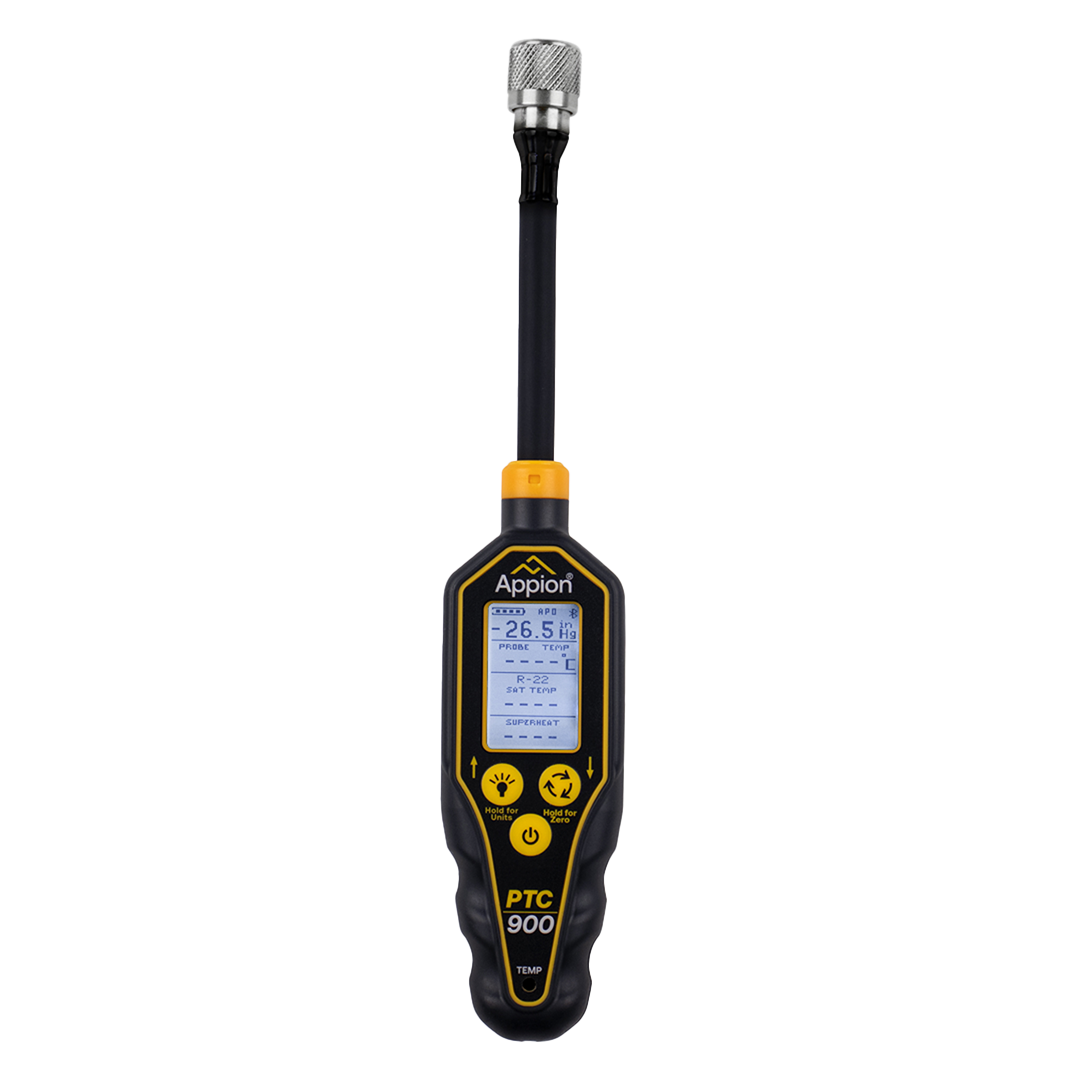

PTC900 Pressure Temperature Compound Gauge
Digital pressure and temperature compound gauge for AC/R diagnostics, superheat, subcool and saturated temperature readings without relying on a restrictive manifold.
Pressure, temperature and refrigerant calculations
View saturated temperature, superheat and subcool in real time.
The PTC900 combines compound pressure measurement with a refrigerant library of more than 160 refrigerants, allowing technicians to view saturated temperature, superheat and subcool calculations directly on the gauge.
- Compound pressure measurements for AC/R service work.
- Refrigerant library with over 160 refrigerant types.
- Real-time saturated temperature, superheat and subcool calculations.
- Pressure accuracy of ≤0.06% of full scale.
- Bluetooth® remote viewing, logging, exports and alarms through the Appion Central™ app.
Measurement details
*Specifications based on the Appion PTC900 product information and operating manual.
Appion Central™ app
Remote monitoring for pressure and temperature diagnostics.
Pair the PTC900 with the Appion Central™ app for remote real-time readings, live data logging, multiple simultaneous gauge readings, exportable results and custom alarm notifications.
This helps technicians monitor complex, high-efficiency systems while keeping refrigerant loss low by taking readings directly from system access ports instead of through long hoses and manifolds.
Find a Distributor

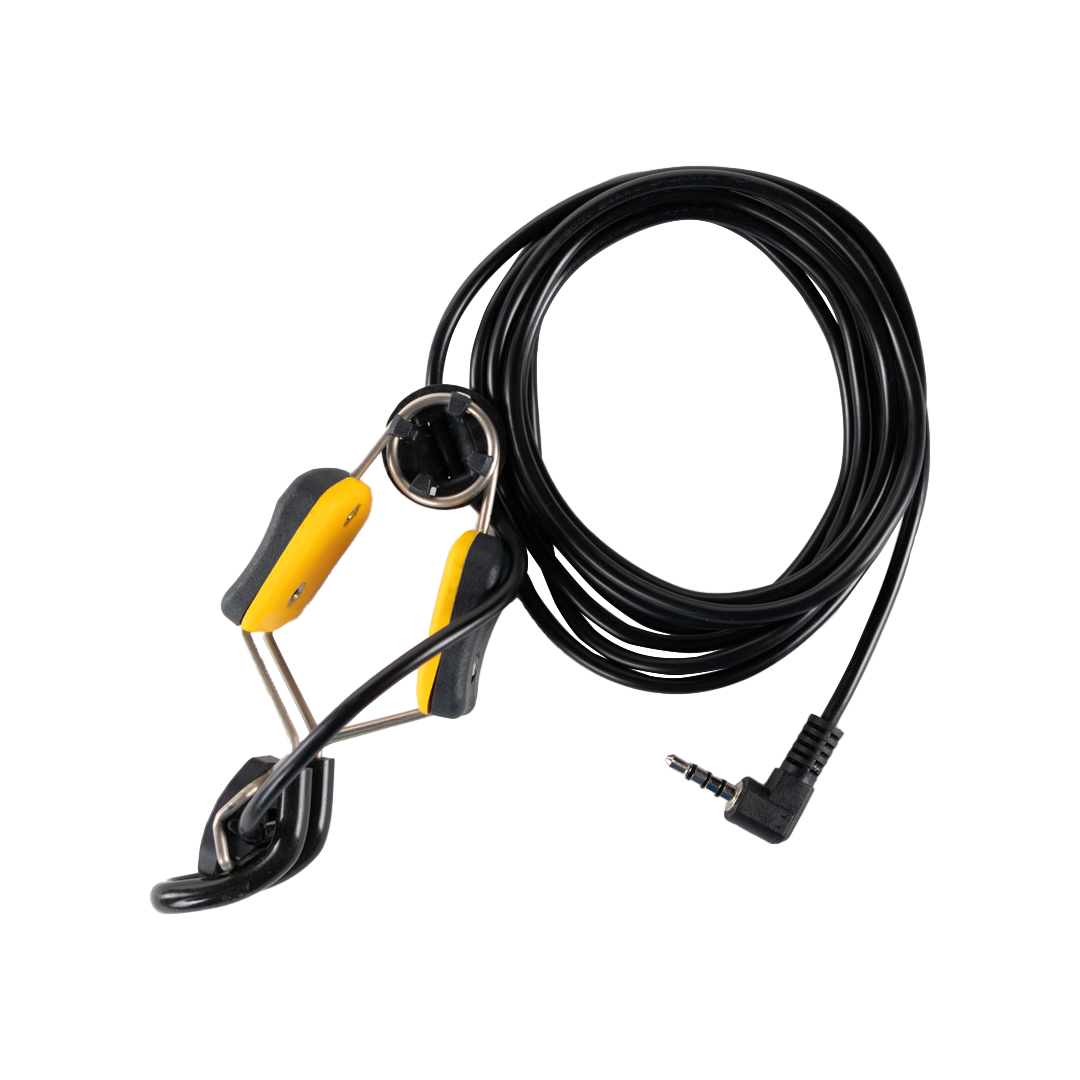

Flexible temperature clamp
Fast response temperature sensing on standard and larger pipes.

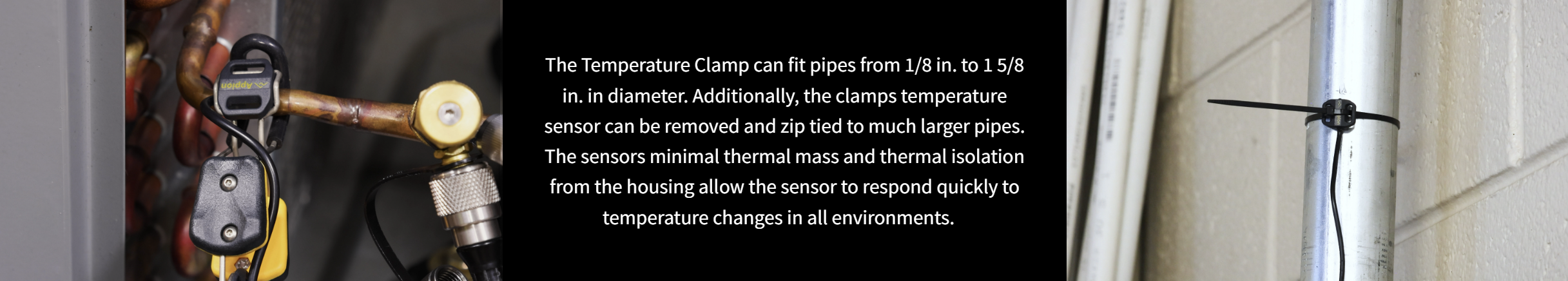

The included temperature clamp fits pipes from 1/8 in. to 1 5/8 in. diameter. The clamp’s temperature sensor can also be removed and zip tied to larger pipes, while its low thermal mass and isolated contact sensor help improve response time.
The clamp has IP67 water resistance, a 6 ft / 1.82 m cable and an 8 second sensor saturation time under typical conditions.
Useful information & technical bulletins
Official Appion PDFs for the PTC900.
PTC900 product documentation and relevant Appion technical/safety bulletins. PDF cards show only the document title and Open PDF.Useful information
Ready to source the PTC900?
Find your nearest authorised distributor.
Omni Tools supports Appion products across Australia through local distributors, service information and warranty pathways.
