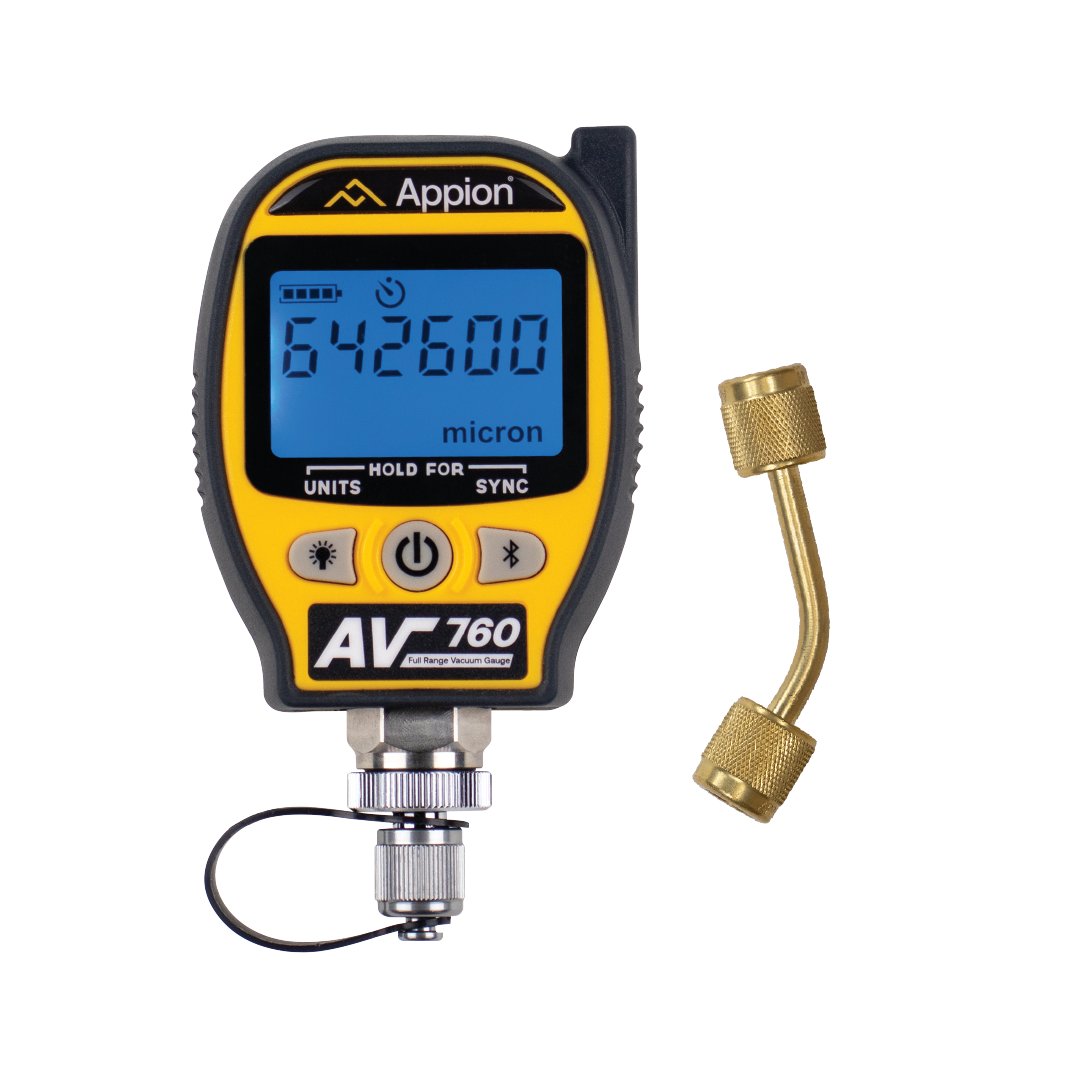

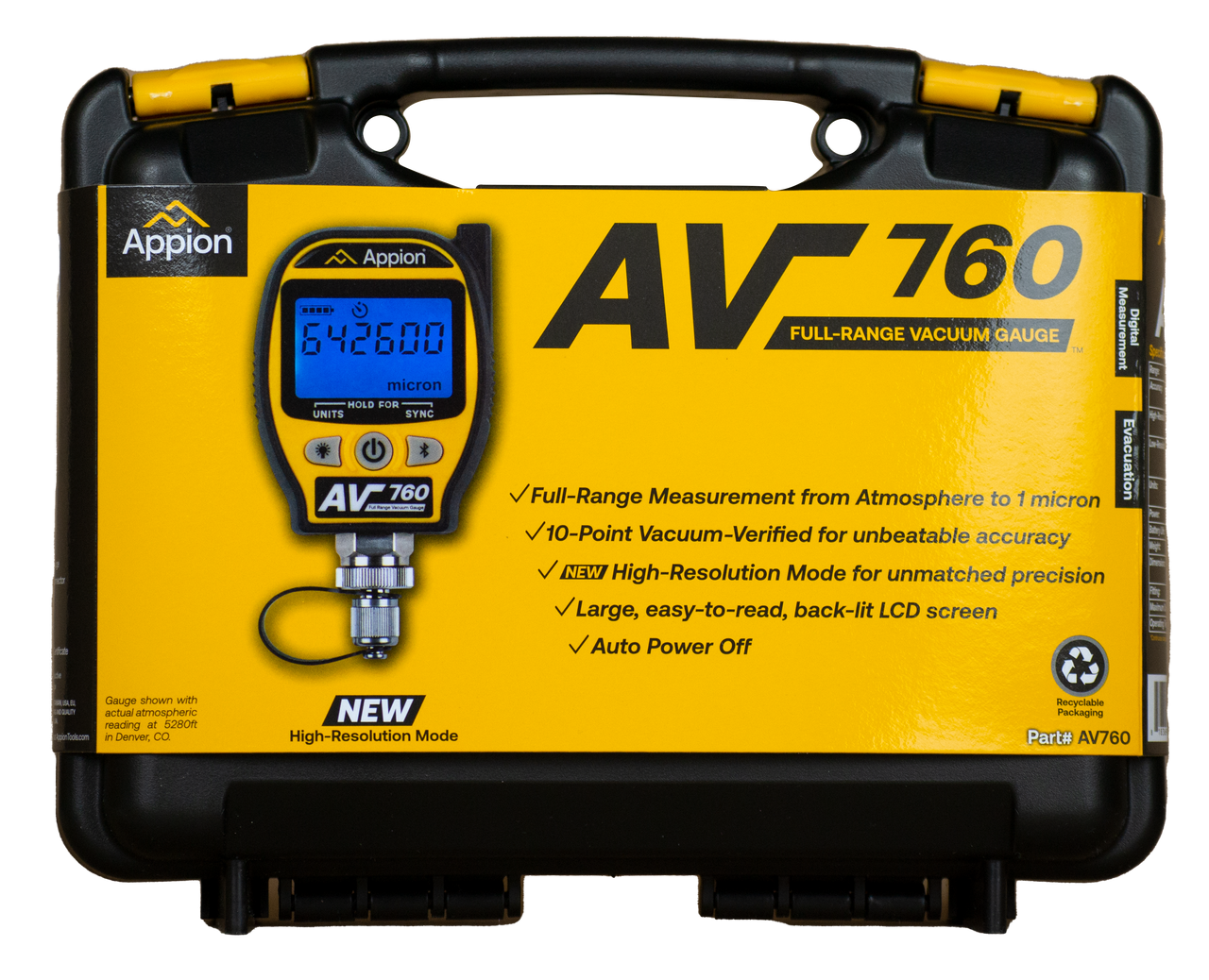

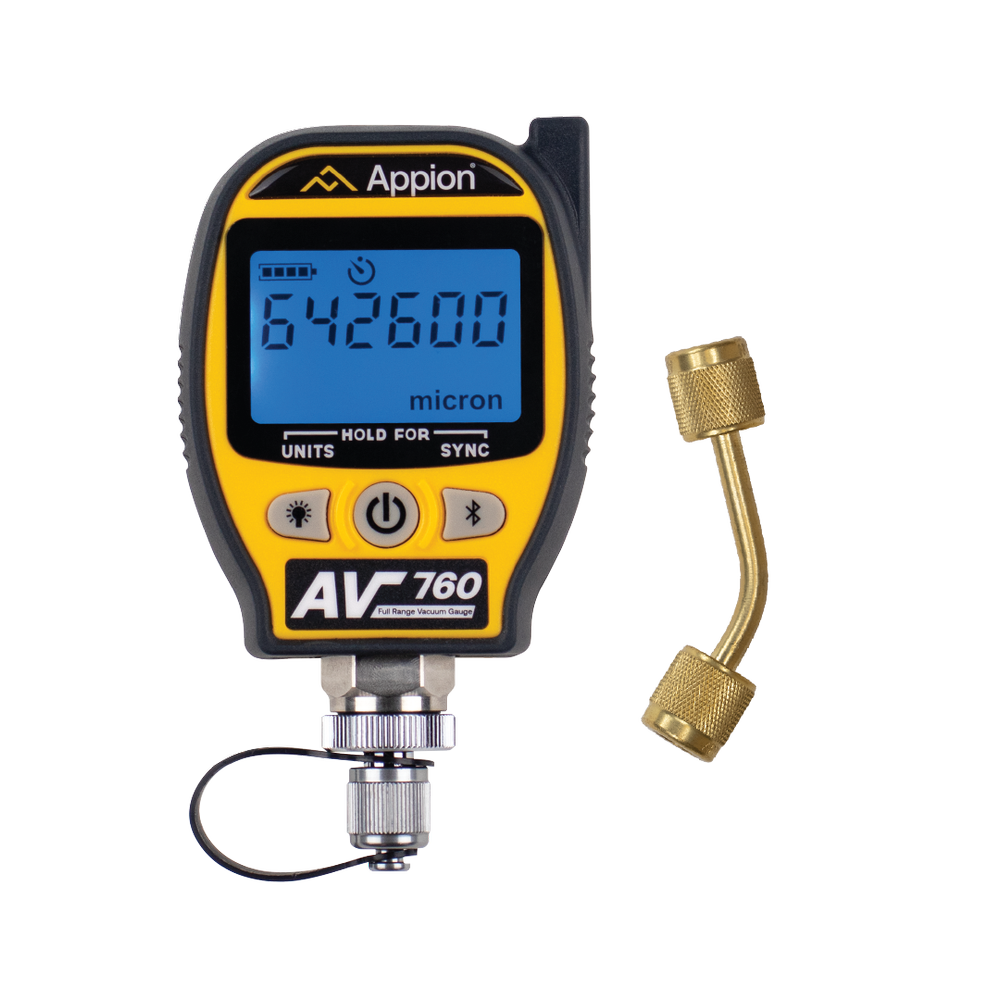

Appion AV760 full range vacuum gauge with 45 degree vacuum-rated connector Appion AV760 protective case and sleeve Appion AV760 product specifications chart
360° Product View AV760 in motion
Rotating 360 degree view of the Appion AV760 full range vacuum gauge

Appion HVAC/R Tools

AV760 - Full Range Vacuum Gauge

Wireless full-range vacuum gauge that measures the entire evacuation process from atmosphere down to 1 micron, helping technicians identify large leaks early and confirm the final deep-vacuum result.

Available exclusively through your local distributor
SKU AV760
UPC 818369010390
Range 760,000 to 1 microns
Calibration 10-point Vacuum-Verified
Resolution 1 micron / 50 micron
Bluetooth Range Up to 300 ft
IP Rating IP65
Max Overpressure 400 psi
Accuracy ±5% of reading + 10 microns (1 to 5k), ±5% of reading (5k to ATM)
Units Microns, mTorr, kPa, mBar, in/Hg, psia
Included Adapter (1) 4 in. 45° 1/4 in. Female FL to 1/4 in. Female FL Connector
Buy From Your Local Distributor Service & Warranty Related Products

Ask for Appion Part #

AV760

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Full-range vacuum measurement

Track evacuation from atmosphere to 1 micron.

Many vacuum gauges only begin measuring deep into the evacuation process. The AV760 lets technicians see the complete evacuation curve, making it easier to identify leaks, moisture, contamination or system behaviour before the final micron reading.

  • Full-range measurement from atmosphere to 1 micron.
  • 10-point Vacuum-Verified accuracy for repeatable results.
  • Wireless Bluetooth® readings through the Appion Central App™.
  • High-resolution response: 50 micron increments from atmosphere to 15,000 microns, then 1 micron resolution down to 1 micron.
  • IP65-rated housing, 400 psi maximum overpressure and oil protection to help keep the sensor clean.

Measurement details

Range 760,000 to 1 microns
High Resolution 1 micron
Low Resolution 50 micron
Bluetooth 300 ft line-of-sight
Fitting 1/4 in. Male SAE flare
Overpressure 400 psi max.

*Specifications based on the source product information.

Appion Central App™

Remote readings for advanced evacuation analysis.

Pair the AV760 with the Appion Central App™ for remote, real-time readings, multiple simultaneous gauge readings, evacuation leak test analysis, custom alarm notifications, live data logging and reporting.

This helps technicians diagnose the difference between a system leak, moisture or contaminants without standing over the system for the entire evacuation. Unlike gauges that begin reading at 25,000 microns, the AV760 gives visibility across the full evacuation curve.

Find a Distributor

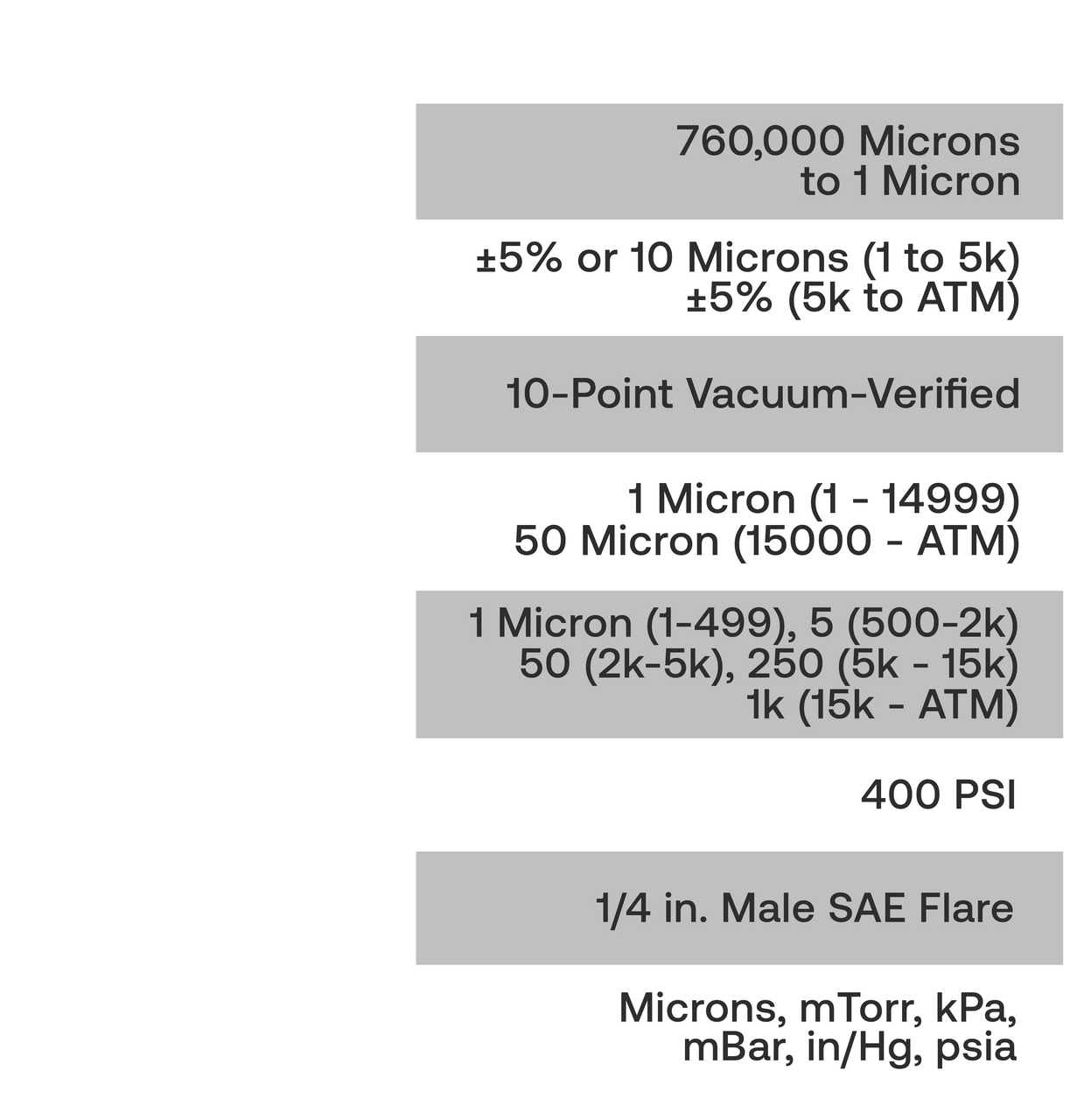

AV760 specifications chart showing range, accuracy, resolution, fitting and supported units

Useful information & technical bulletins

Official Appion PDFs for the AV760.

AV760 product PDFs and relevant Appion technical/safety bulletins. PDF cards show only the document title and Open PDF.

Useful information

AV760 Manual Open PDF AV760 Quick Tips & Care Guide Open PDF Product Brochure Open PDF

Technical & safety bulletins

Protecting Gauges from High Pressure Surges Open PDF Preventing Damage to Hose Gaskets and Seals Open PDF A2L System Evacuation Open PDF Safely Handling AC/R Tools Open PDF
