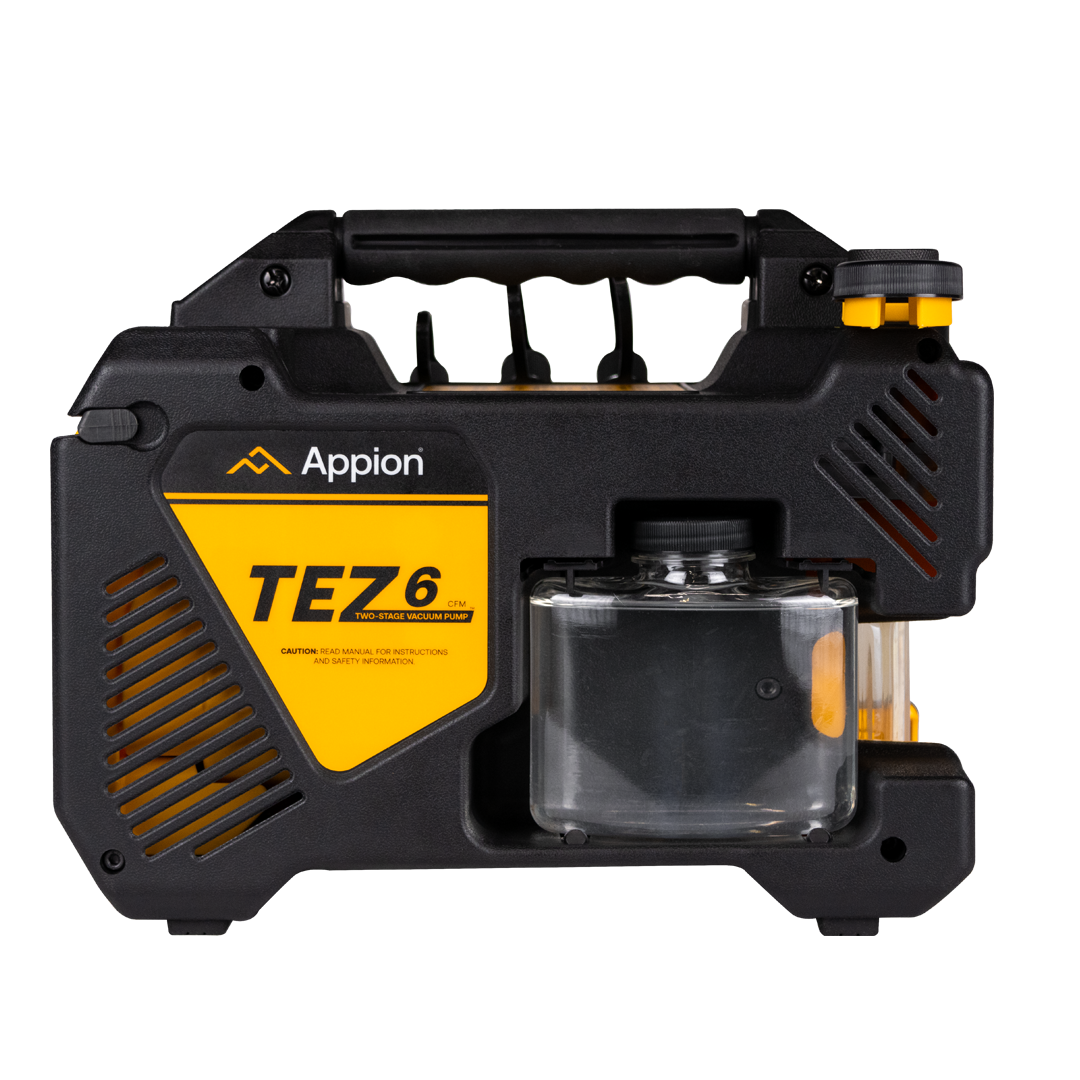

Front angled view of the Appion TEZ6 6CFM vacuum pump Right side view of the Appion TEZ6 vacuum pump showing inlet ports Left side view of the Appion TEZ6 vacuum pump Front view of the Appion TEZ6 vacuum pump and oil cartridge Back view of the Appion TEZ6 vacuum pump with power cord storage Close up of the locking IEC power cord connection on the TEZ6 Close up of the TEZ6 three input fittings showing two 3/8 inch ports and one 1/4 inch port

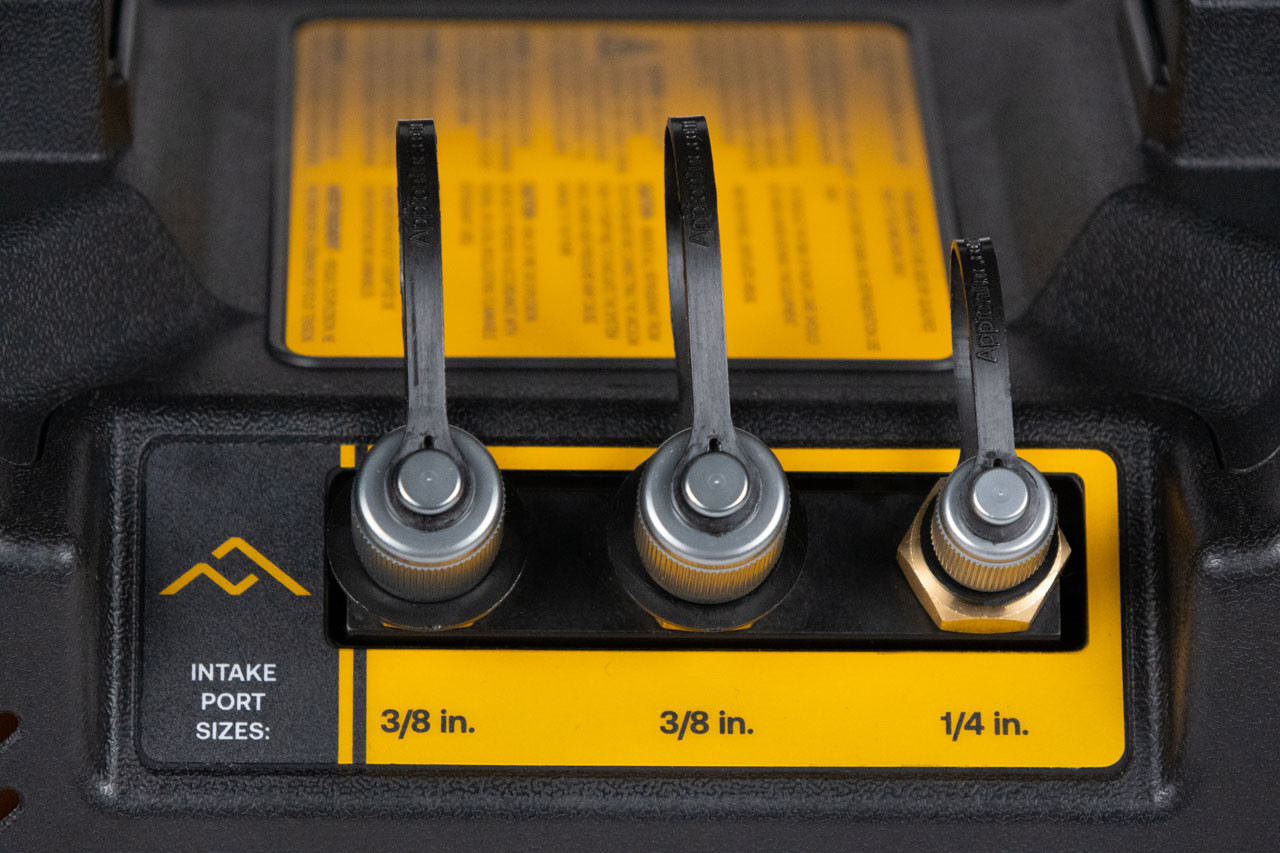

Multi-Port Input Tree Two 3/8 in. ports + one 1/4 in. port
TEZ6 multi-port input fittings showing two 3/8 inch ports and one 1/4 inch port

Appion HVAC/R Tools

TEZ6 - 6CFM Vacuum Pump

Compact two-stage vacuum pump with 5-Second Oil Change™ for fast, clean and efficient AC/R system evacuation.

Available exclusively through your local distributor
SKU TEZ6
UPC 818369011113
Weight 6.8 kg / 6,804 g
Power Auto-switching 100–240VAC, 50/60Hz
Flow 6 CFM / 170.25 L/min @ 60 Hz
Ultimate Vacuum 15 microns
Oil Capacity 8 oz / 236 ml
Pump Type Two-stage rotary vane pump
Dimensions 29.2 x 19.3 x 24.1 cm / 11.5 x 7.6 x 9.5 in.
Inlet Port Fittings Two 3/8 in. ports and one 1/4 in. port
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

TEZ6

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Compact two-stage vacuum pump

Fast evacuation without carrying a heavy pump.

The TEZ6 is designed for AC/R technicians who want serious evacuation performance in a compact, lightweight pump. It uses a high-performance 6 CFM two-stage design with three input fittings so technicians can connect multiple hoses directly to the pump and optimise evacuation efficiency.

  • Compact 6.8 kg body for easier transport on site.
  • Three input fittings: two 3/8 in. ports and one 1/4 in. port.

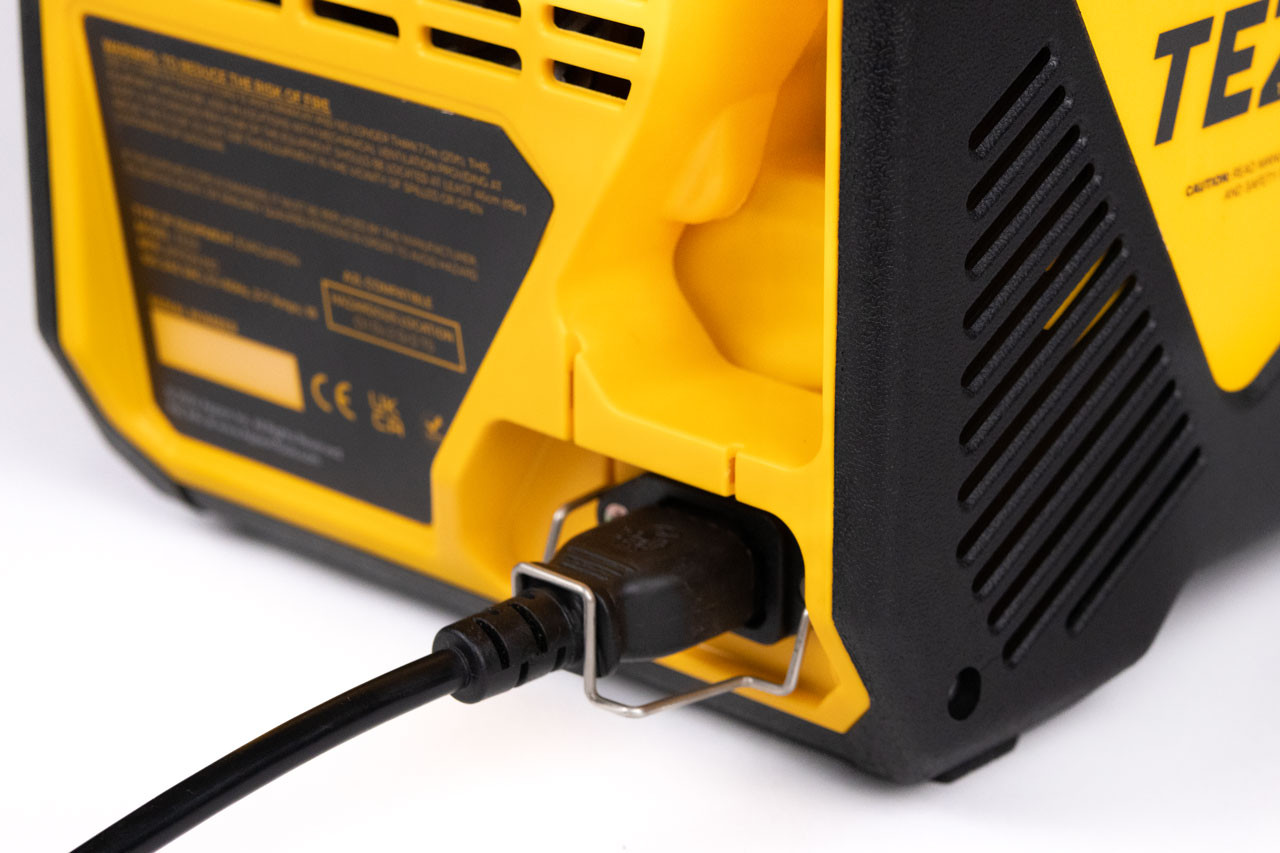

  • Auto-switching power supply with locking IEC C13/C14 connector for flexible regional power use.
  • 1 hp BLDC motor running at 2200 rpm for efficient evacuation performance.

Key performance specs

Free Air Displacement 6 CFM / 170.25 L/min
Ultimate Vacuum 15 microns
Input Tree 3/8 in. x2, 1/4 in. x1
Oil Capacity 8 oz / 236 ml
Motor 1 hp BLDC / 2200 rpm
Operating Temp. -20°C to 55°C
Oil Type Appion Ultimate Deep Seal Vacuum Pump Oil

*Specs shown using Appion TEZ6 product and manual references.

Clearly visible results

TEZOM™ oil cartridge system with 5-Second Oil Change™.

The TEZOM™ oil cartridge makes it easy to monitor oil condition during evacuation work. On-the-fly oil changes help remove moisture and dirt from the pump while keeping the job moving.

The automatic oil lockout helps keep oil changes cleaner and reduces downtime when the oil becomes discoloured or the micron level begins to stall.

The pump also includes auxiliary oil cartridge storage, cord storage and a locking IEC connector, making it practical for field use and regional plug requirements.
