Appion HVAC/R Tools
MegaFlow Basics 1/2 in. Hose Evacuation Kit with 1/4 in. Valve Core Removal Tool
High-conductance evacuation kit for 1/4 in. system fittings, combining a 1/4 in. Valve Core Removal Tool with a 6 ft MegaFlow 1/2 in. evacuation hose.
Fast evacuation made simple
Remove the valve core and let the pump actually move air.
The MGABAS kit gives technicians the core ingredients for faster evacuation on 1/4 in. systems: a vacuum-rated valve core removal tool and a large-diameter MegaFlow hose. Removing restrictive valve cores and using a larger hose helps reduce conductance loss, allowing the vacuum pump to work much closer to its real potential.

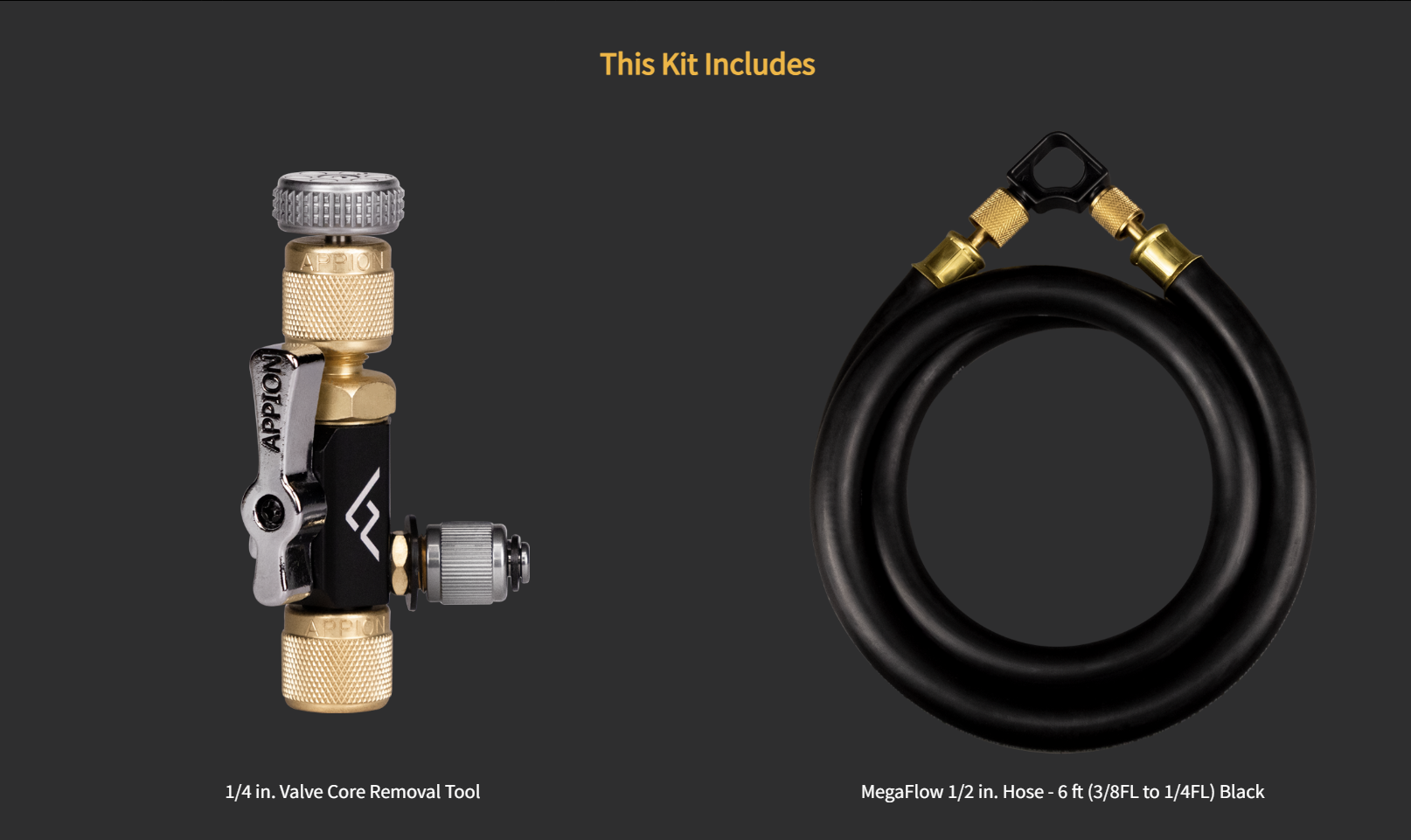

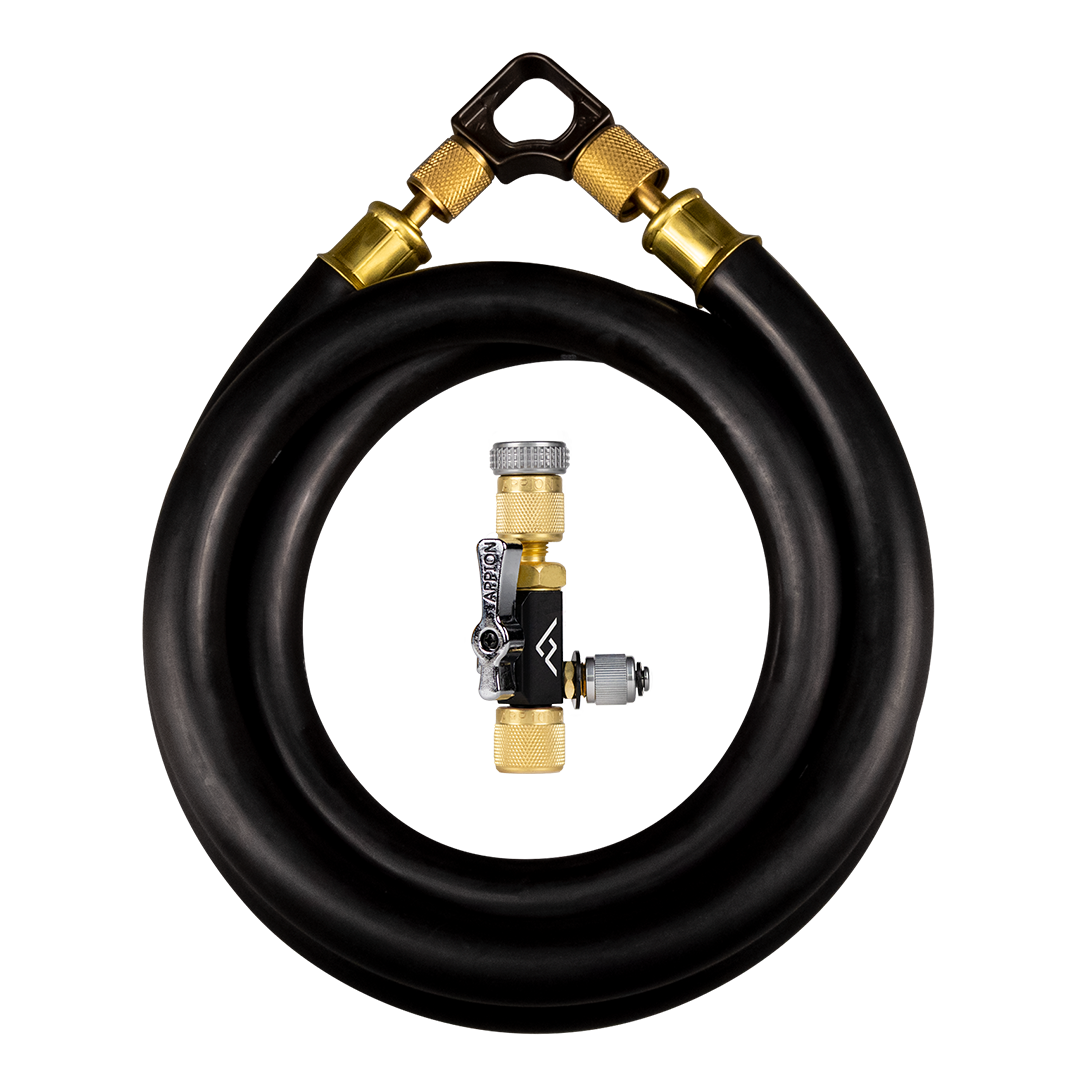

- Includes 1/4 in. Valve Core Removal Tool for removing restrictive valve cores.
- Includes 6 ft MegaFlow 1/2 in. black evacuation hose with 3/8 in. FL to 1/4 in. FL fittings.
- Helps evacuate AC/R systems faster by reducing restriction at the service port and hose.
- MegaFlow hose is vacuum-rated to 20 microns.
- Valve Core Removal Tool is vacuum-rated to 20 microns and designed for high-pressure refrigerants such as R410A.
- Large hose, core removal and vacuum-rated tools support clean, reliable evacuation work.
Key product specs
*Specifications based on Omni Tools and Appion MGABAS product information.
Evacuation comparison
A larger hose and removed core can make the difference obvious.

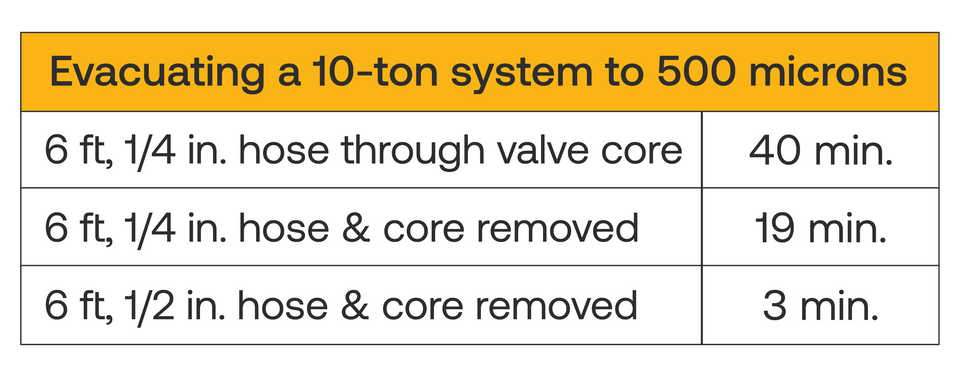

Appion’s comparison chart shows the practical effect of reducing restrictions: moving from a 1/4 in. hose through the valve core to a 1/2 in. hose with the core removed can dramatically reduce evacuation time on the same test system.
Why remove valve cores?
Valve cores restrict flow when evacuation speed matters.
Valve cores are designed to restrict flow and minimise refrigerant loss, but during evacuation that same restriction slows the job down. Removing the core maximises flow and can save serious time on larger or wetter systems.
MegaFlow hose
Use the large 1/2 in. hose to reduce evacuation restriction.
The included black MegaFlow hose gives the pump a much larger path than a typical 1/4 in. charging hose. The larger internal diameter helps improve conductance and reduce the hose as the bottleneck.
