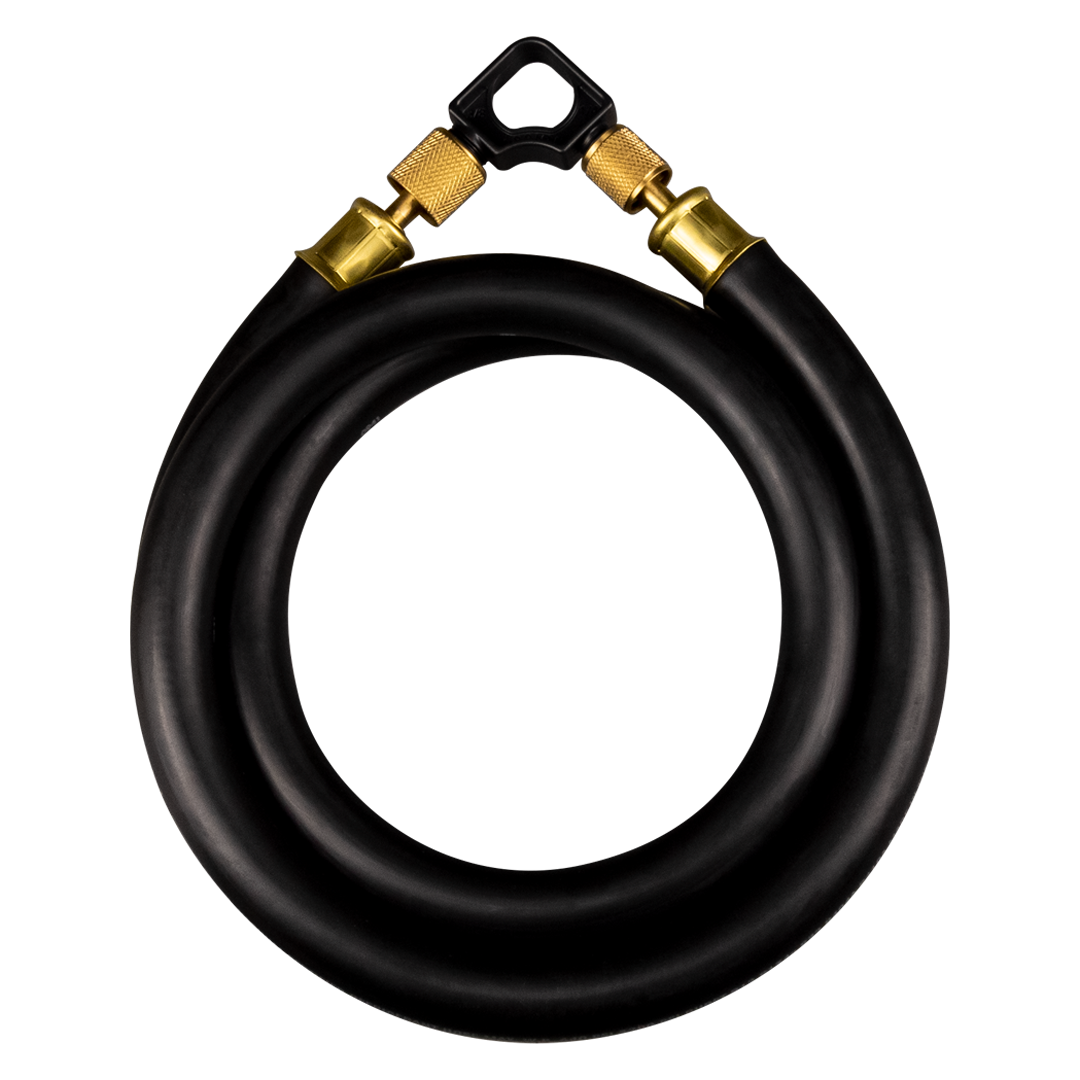

MegaFlow 1/2 in. Hose - 6 ft Black
Combined page for the two black 1/2 in. MegaFlow evacuation hose variants: the MH120006EEK with 3/8 in. Female Flare fittings at both ends, and the MH120006EAK with 3/8 in. to 1/4 in. Female Flare fittings.
High-speed evacuation hose variants
Two black 1/2 in. hoses, one cleaner product page.
Both black MegaFlow hose options use a large 1/2 in. internal diameter to reduce evacuation restriction and help technicians get closer to the true potential of the vacuum pump. The difference is the fitting layout: choose MH120006EEK for 3/8 in. connections at both ends, or MH120006EAK when one end needs a 1/4 in. service-tool connection.
- 1/2 in. internal diameter for high-conductance evacuation work.
- 6 ft black hose body for vacuum pump and evacuation setups.
- Vacuum-rated to 20 microns for deep evacuation work.

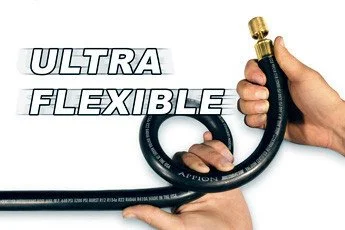

- Ultra-flexible hose construction helps with tight service access.
- Built to resist collapse and permeation under vacuum.
- Available in 3/8 in. to 3/8 in. and 3/8 in. to 1/4 in. fitting configurations.
Choose the fitting layout
*Specifications based on Omni Tools, Appion and supplied Australian reference pages for the MH120006EEK and MH120006EAK hose variants.
Variant guide
Same high-flow hose body, different end fittings.
Use this page as a combined listing for both black 1/2 in. MegaFlow hoses. The hose body and high-speed evacuation purpose are the same; the only choice the technician needs to make is which flare fitting layout best suits their pump, Speed-Y, gauge or service tool setup.
MH120006EEK
3/8 in. Female Flare to 3/8 in. Female Flare
Best when both ends of the setup are 3/8 in. flare.MH120006EAK
3/8 in. Female Flare to 1/4 in. Female Flare
Best when one end of the setup needs a 1/4 in. connection.Large internal diameter
Reduce restriction at the hose during evacuation.
A larger 1/2 in. hose gives the vacuum pump more breathing room than a standard small-diameter charging hose. That can make a meaningful difference on evacuation jobs where flow restriction is the thing slowing the process down.
Vacuum-rated hose
Built to avoid collapse and permeation in deep vacuum.
MegaFlow hoses are vacuum-rated to 20 microns, helping maintain a reliable connection when paired with compatible vacuum-rated tools, pumps and fittings.
Compatible parts & related products
Linked MH120006EEK / MH120006EAK products from Omni Tools.
Internal Omni Tools links first — compatible gasket kits, evacuation tools, Speed-Y fittings, hose storage and related MegaFlow products that naturally fit these black 1/2 in. hoses.Useful information & technical bulletins
Official and supporting resources for the black 1/2 in. MegaFlow hoses.
Product information and relevant Appion technical/safety resources. PDF cards show only the document title and Open PDF.Useful information
Ready to source the black MegaFlow 1/2 in. hose?
Find your nearest authorised distributor.
Omni Tools supports Appion products across Australia through local distributors, service information and warranty pathways.
