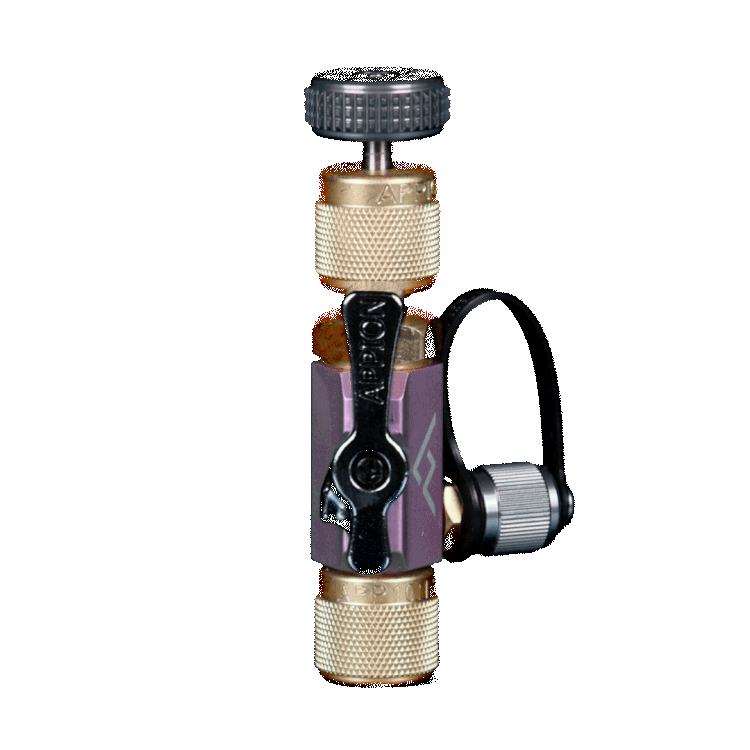

Rotating 360 degree view of the Appion MGAVCR valve core removal tool

Appion HVAC/R Tools

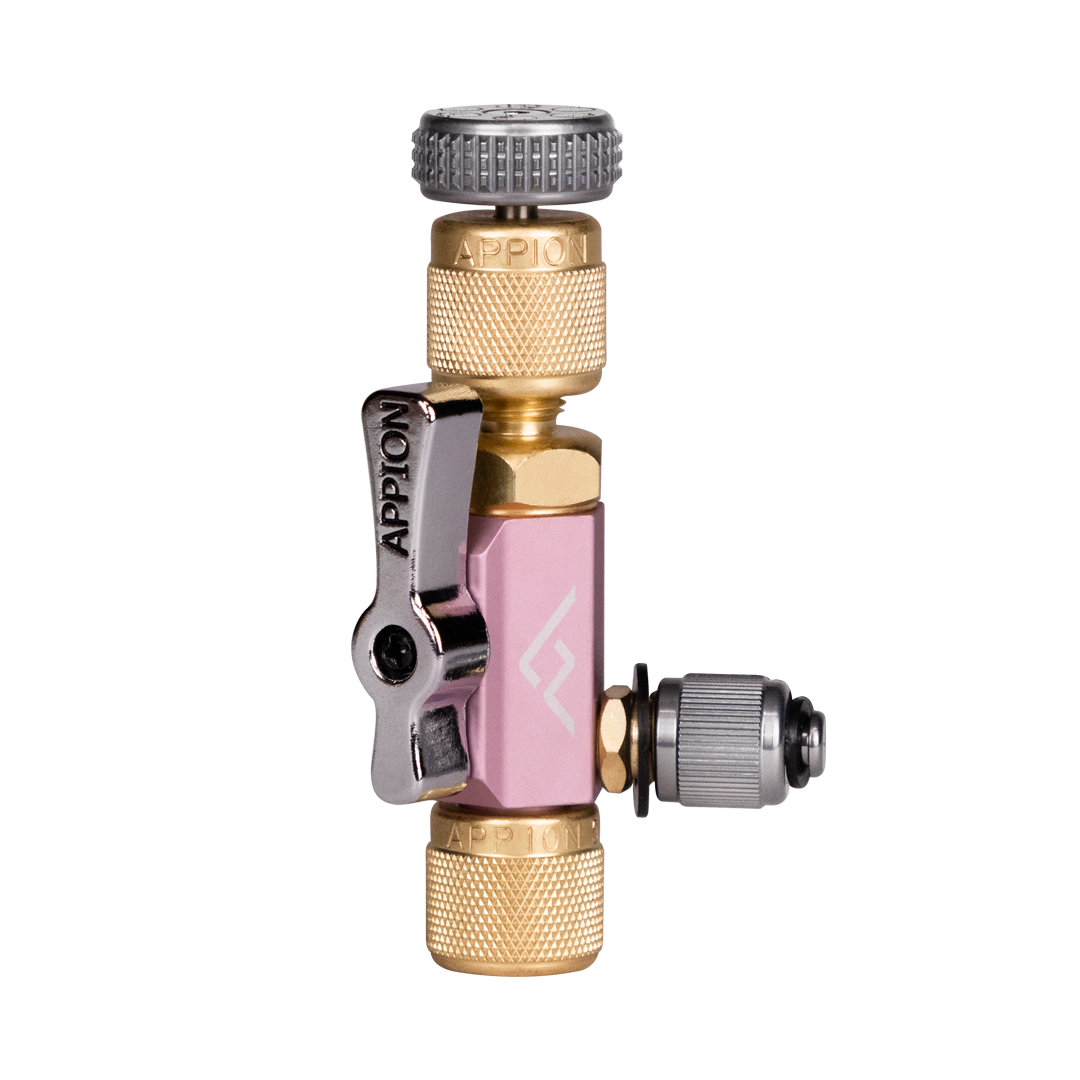

5/16 in. Valve Core Removal Tool

Vacuum-rated valve core removal tool for 5/16 in. ductless and mini split system fittings, designed to remove core restrictions and improve recovery and evacuation flow.

Available exclusively through your local distributor
SKU MGAVCR
UPC 818369010055
Fitting Size 5/16 in. Female Flare to 1/4 in. Male Flare
Application Valve core removal for ductless, mini split, recovery and evacuation work
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Side Port 1/4 in. side port for service gauges
Designed For 5/16 in. ductless system fittings, high-pressure refrigerants including R410A, deep vacuum and recovery work
Tool Features Magnetic stem base, adjustable tip, full-flow core removal and double O-ring ball valve seal
Buy From Your Local Distributor Service & Warranty Linked Parts

Ask for Appion Part #

MGAVCR

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Ductless system service

Full-flow valve core access for 5/16 in. fittings.

The MGAVCR is built for 5/16 in. ductless and mini split system service ports. Removing valve cores helps open up the access port during recovery and evacuation, reducing restriction while the tool keeps the system connection controlled.

  • Vacuum-rated to 20 microns for deep evacuation work.
  • 5/16 in. female flare system connection with 1/4 in. male flare hose connection.
  • 1/4 in. side port for service gauges.
  • Double O-ring ball valve seal for accurate blank-off vacuum testing.
  • Magnetic base and adjustable stem tip for practical field handling.

Core specs

Fitting Size 5/16 in. FFL to 1/4 in. MFL
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Tool Type Valve core removal tool
Primary Use 5/16 in. ductless systems

*Specifications based on the Appion MGAVCR product information.

Full flow service work

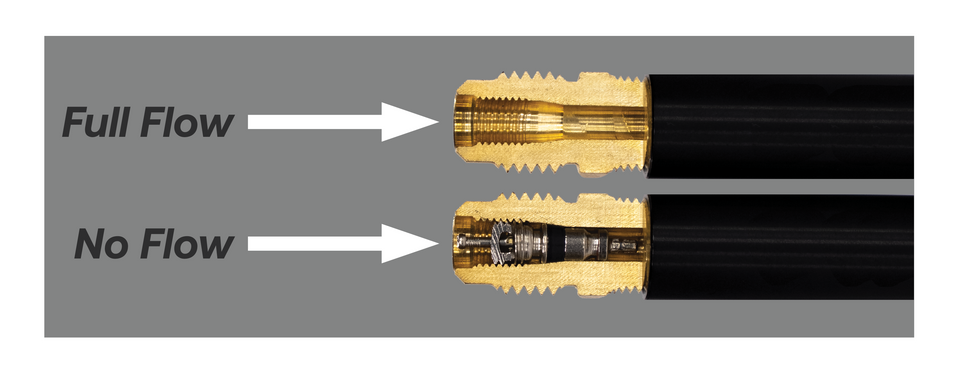

Valve cores can reduce recovery and evacuation performance.

Valve cores are designed to restrict flow and minimise refrigerant loss. During recovery and evacuation, that restriction can slow the job down significantly. Removing valve cores helps maximise flow through the system access port.

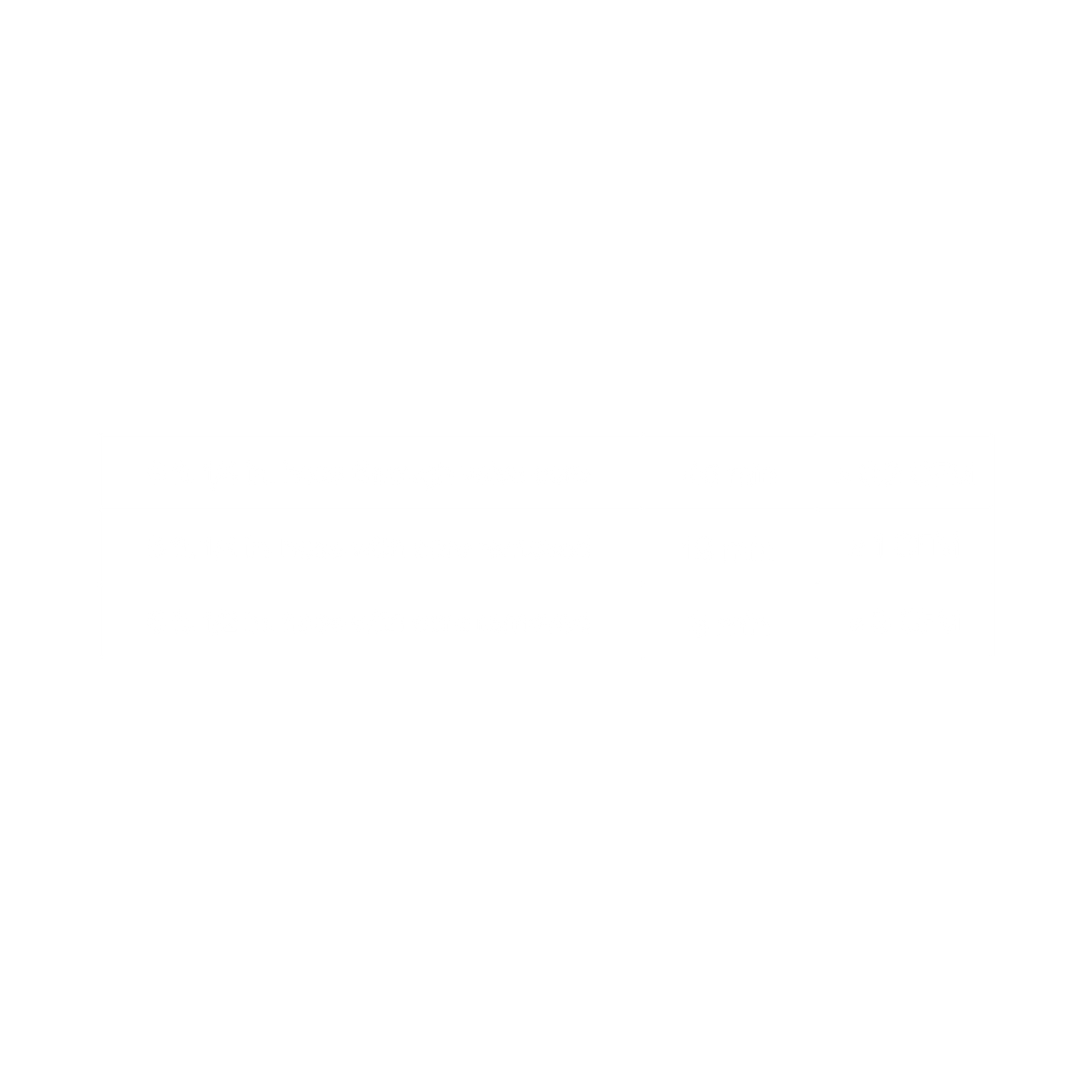

Through valve core Approx. 5.7 L/min / 0.2 CFM
Core removed Higher flow for faster evacuation

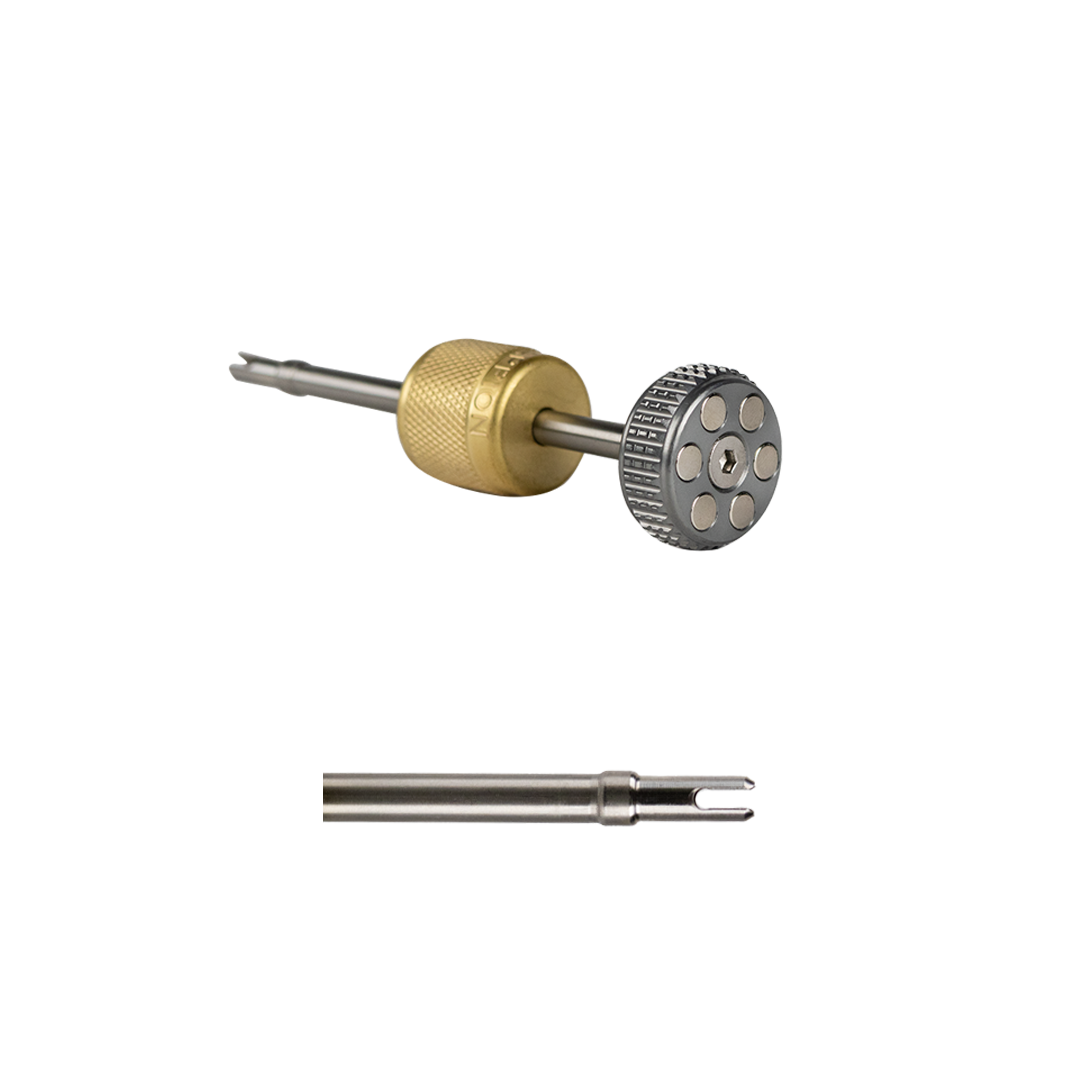

Magnetic base and adjustable tip

Built for practical field handling.

The magnetic stem base helps secure the stem to metal surfaces so it is less likely to be misplaced during service work. The adjustable tip can be tightened or loosened to suit various valve core sizes and improve grip during removal or installation.

Stem Base Magnetic
Stem Tip Adjustable
