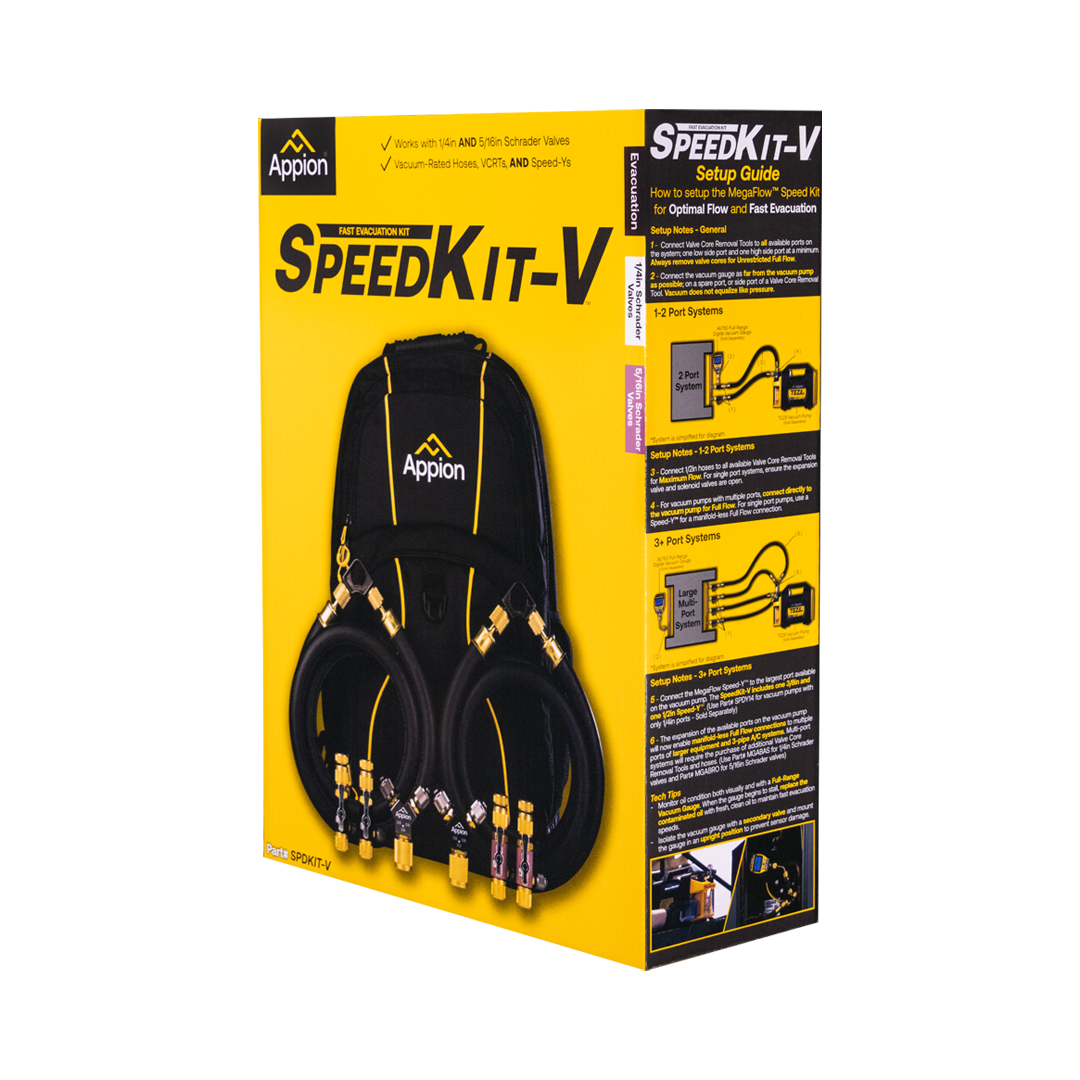

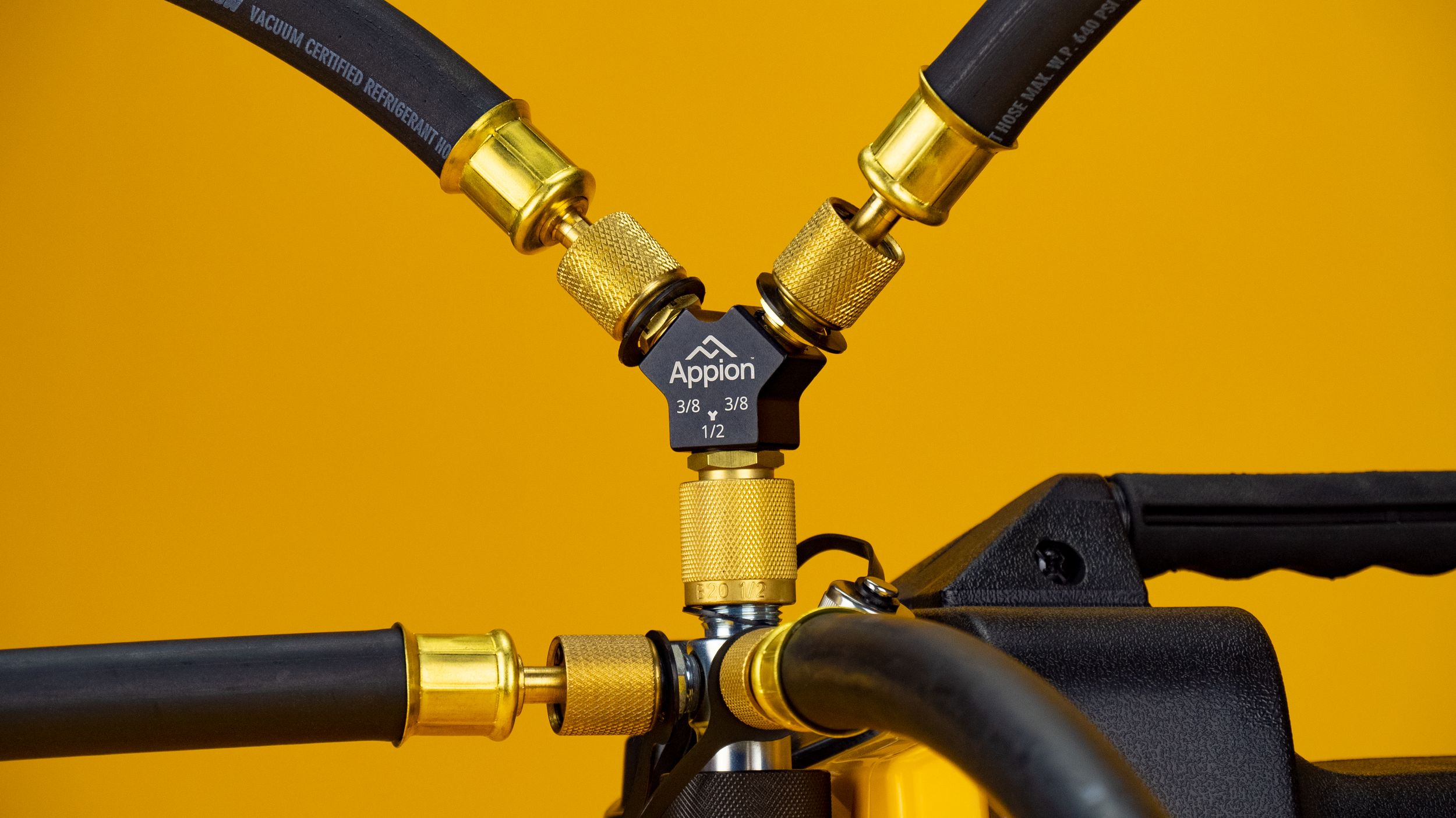

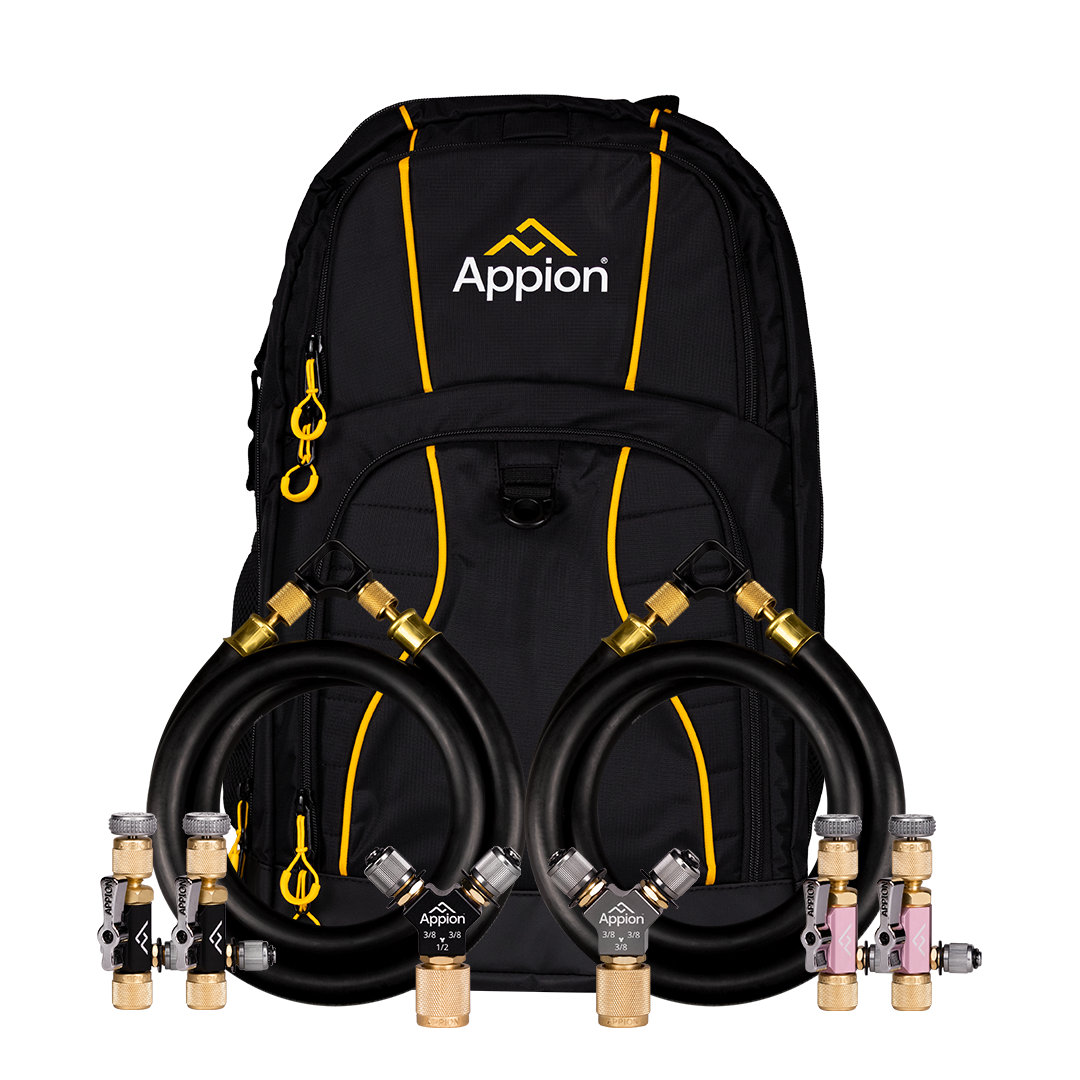

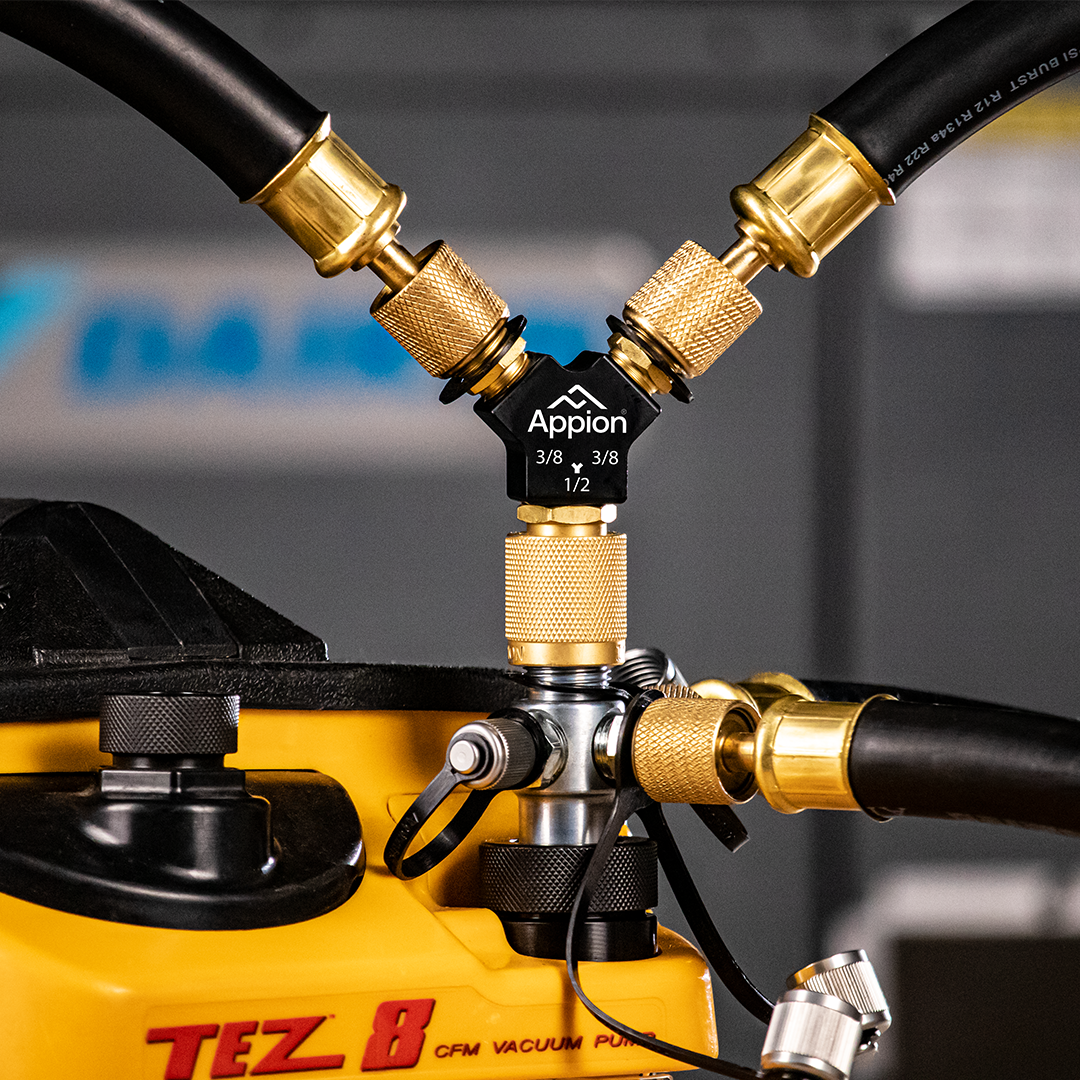

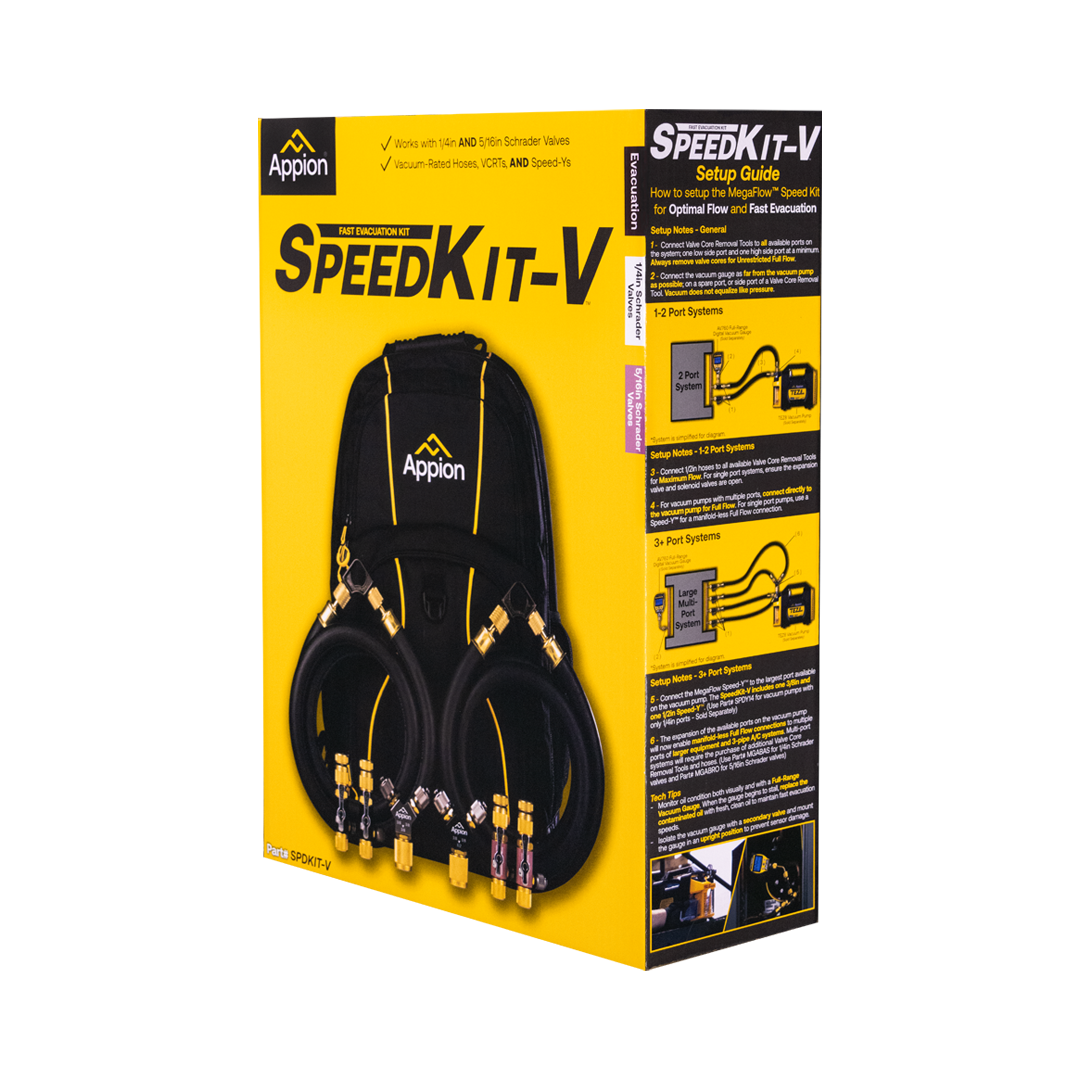

Appion SpeedKit-V vacuum speed kit with hoses, Speed-Y fittings, valve core tools and carry bag Appion SpeedKit-V setup on a TEZ8 vacuum pump showing Speed-Y and hoses connected Close up of Appion SpeedKit-V hose and fitting connections Appion SpeedKit-V product box and setup guide

Appion HVAC/R Tools

SpeedKit-V - Vacuum Speed Kit

Full-flow vacuum speed kit for fast AC/R system evacuation, built with MegaFlow vacuum-rated hoses, Speed-Y fittings and valve core removal tools to reduce manifold restrictions.

Available exclusively through your local distributor
SKU SPDKIT-V
UPC 818369010901
Application AC/R system evacuation
Hoses (2) 1/2 in. 6 ft vacuum-rated hoses
Speed-Ys 3/8 in. FL and 1/2 in. FL
Rating Vacuum-rated to 20 microns
Designed For Most vacuum pumps with 3/8 in. MFL and 1/2 in. MFL fittings
System Compatibility Standard 1/4 in. systems and ductless 5/16 in. systems
Buy From Your Local Distributor Service & Warranty Included Components

Ask for Appion Part #

SPDKIT-V

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

The greater the flow

Fast evacuation without a restrictive manifold.

The SpeedKit-V makes it easy to connect multiple simultaneous evacuation points. It uses 1/2 in. vacuum-rated hoses and two Speed-Y fittings to give technicians a full-flow setup across most vacuum pumps with 3/8 in. MFL and 1/2 in. MFL fittings.

  • Two 1/2 in. 6 ft MegaFlow vacuum-rated evacuation hoses.
  • Includes both 3/8 in. FL and 1/2 in. FL Speed-Y fittings.
  • Valve core removal tools for standard 1/4 in. systems and ductless 5/16 in. systems.
  • Up to 16x greater flow compared with evacuation through a manifold.
  • Hoses are designed not to permeate or collapse under deep vacuum.

Kit performance points

Flow Path Full-flow setup
Speed-Ys 3/8 in. + 1/2 in.
VCRT Included 4 total
Vacuum Rating 20 microns
Vacuum Pump Fit 3/8 in. MFL and 1/2 in. MFL fittings
Flow Advantage Up to 16x greater flow vs manifold evacuation

*Configuration and rating based on the source product information.

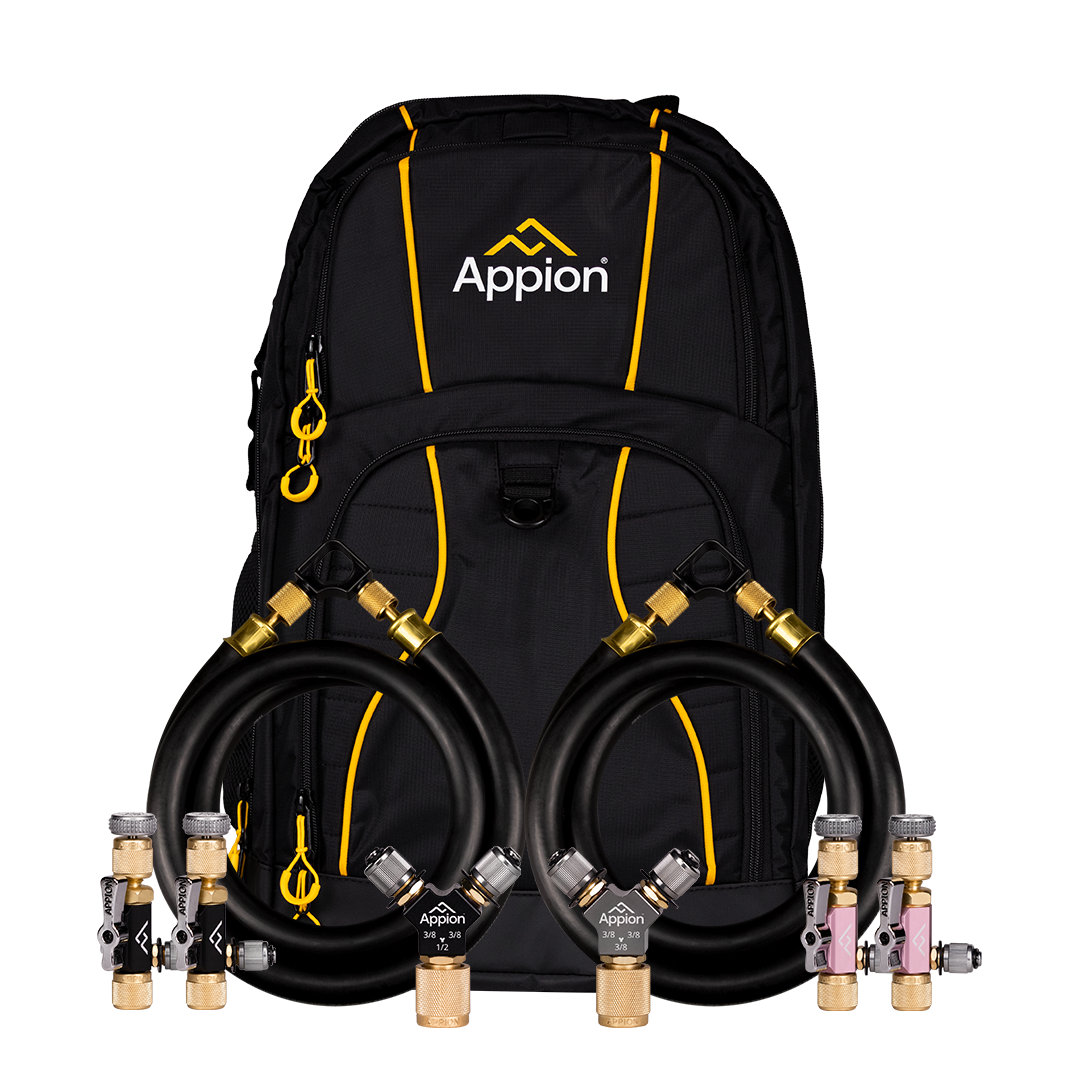

This kit includes

A vacuum speed setup for larger multi-port jobs.

The SpeedKit-V includes two large-diameter 1/2 in. vacuum-rated hoses, two Speed-Y fittings, valve core removal tools and a carry bag, helping technicians reduce flow restrictions during evacuation. Always remove valve cores for full unrestricted flow, and connect the vacuum gauge as far from the pump as practical for a more accurate system reading.

Find a Distributor
  • (2) MegaFlow 1/2 in. 6 ft Vacuum-Rated Evacuation Hoses
  • (1) MegaFlow 3/8 in. FL Speed-Y
  • (1) MegaFlow 1/2 in. FL Speed-Y
  • (2) MegaFlow Valve Core Removal Tools - 1/4 in.
  • (2) MegaFlow Valve Core Removal Tools - 5/16 in.
  • (1) MegaFlow SpeedKit Carry Bag
