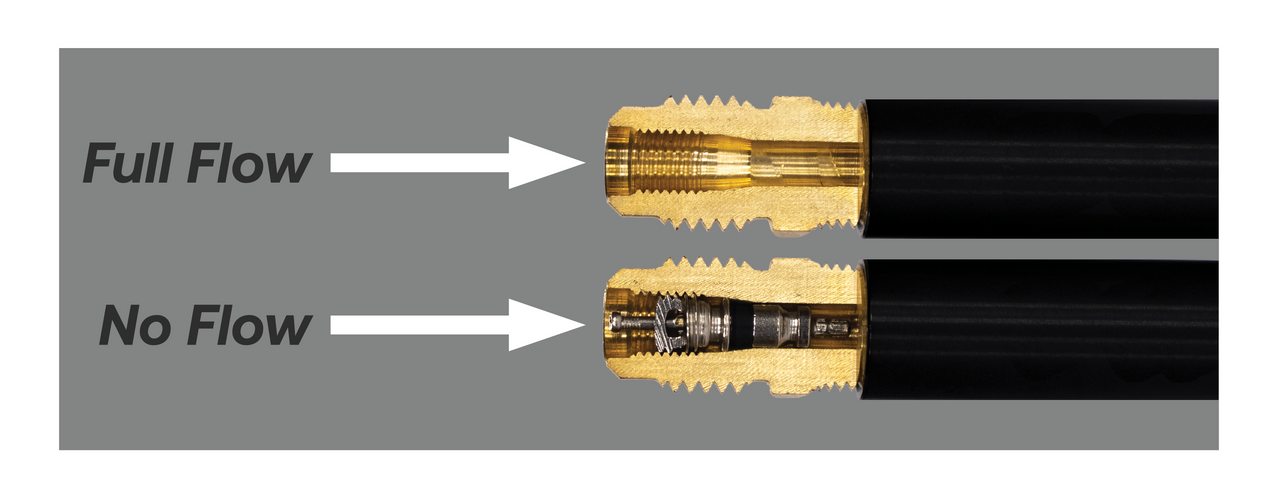

Full flow versus no flow comparison diagram showing valve core restriction

Appion HVAC/R Tools

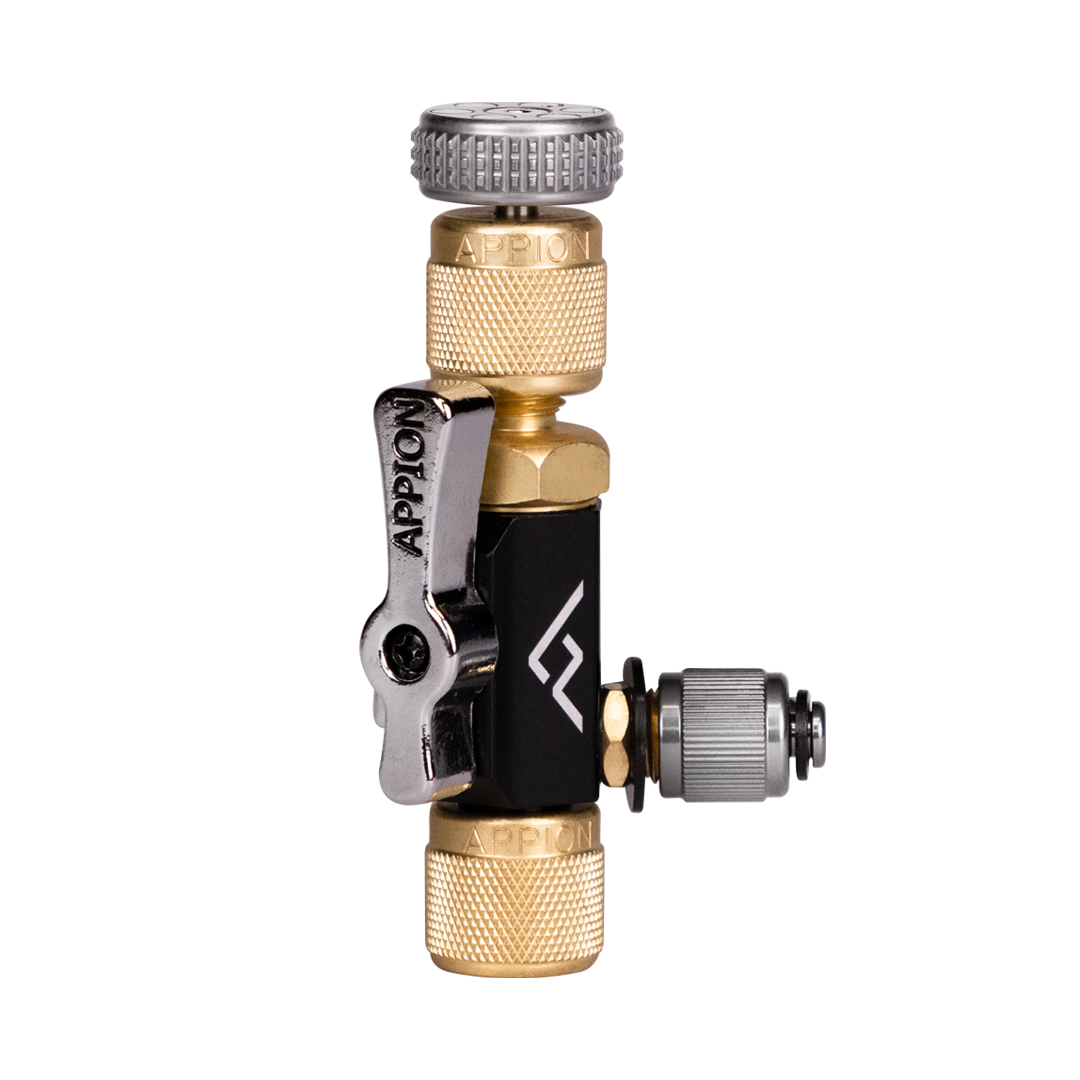

1/4 in. Valve Core Removal Tool

Vacuum-rated valve core removal tool for 1/4 in. fittings, designed to remove restrictive valve cores for faster recovery, full-flow evacuation and controlled service access.

Available exclusively through your local distributor
SKU MGAVCT
UPC 818369010048
Fitting Size 1/4 in. Female Flare to 1/4 in. Male Flare
Side Port 1/4 in. side port for service gauges
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Primary Use Recovery, evacuation and core removal
Designed For 1/4 in. system fittings, high-pressure refrigerants including R410A, deep vacuum and recovery work
Tool Features Magnetic stem base, adjustable tip, full-flow core removal and double O-ring ball valve seal
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

MGAVCT

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Full-flow service access

Remove the restriction before recovery or evacuation.

Valve cores are made to restrict flow and reduce refrigerant loss, but that same restriction can slow recovery and evacuation work. The MGAVCT lets technicians remove the valve core while keeping the system connection controlled through the tool body.

  • Vacuum-rated to 20 microns for deep evacuation work.
  • 1/4 in. female flare system connection to 1/4 in. male flare hose connection.
  • 1/4 in. side port for service gauges.
  • Double O-ring ball valve seal for accurate blank-off vacuum testing.
  • Magnetic base and adjustable stem tip for practical field handling.

Key performance specs

Fitting Size 1/4 in. FFL to 1/4 in. MFL
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Side Port 1/4 in.
Tool Type Valve core removal tool

*Specifications based on the Appion MGAVCT product information and valve core removal tool brochure.

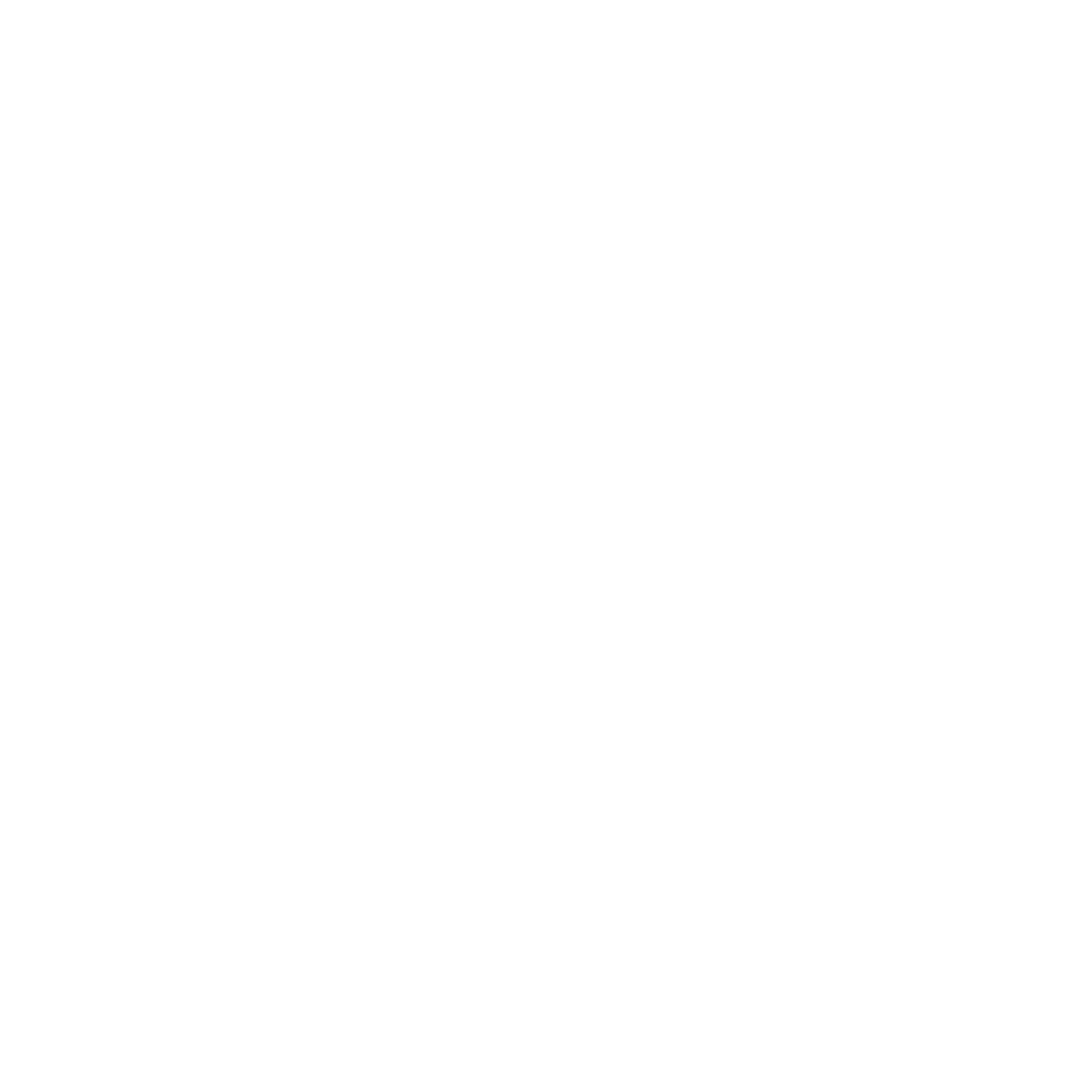

Why remove valve cores?

Valve cores can restrict up to 90% of the access port.

Removing the valve core helps maximise flow through the system access port. That can help reduce recovery and evacuation time, especially where normal core depressors and small openings become the bottleneck.

Through valve core Can restrict access port flow
Core removed Full-flow service access

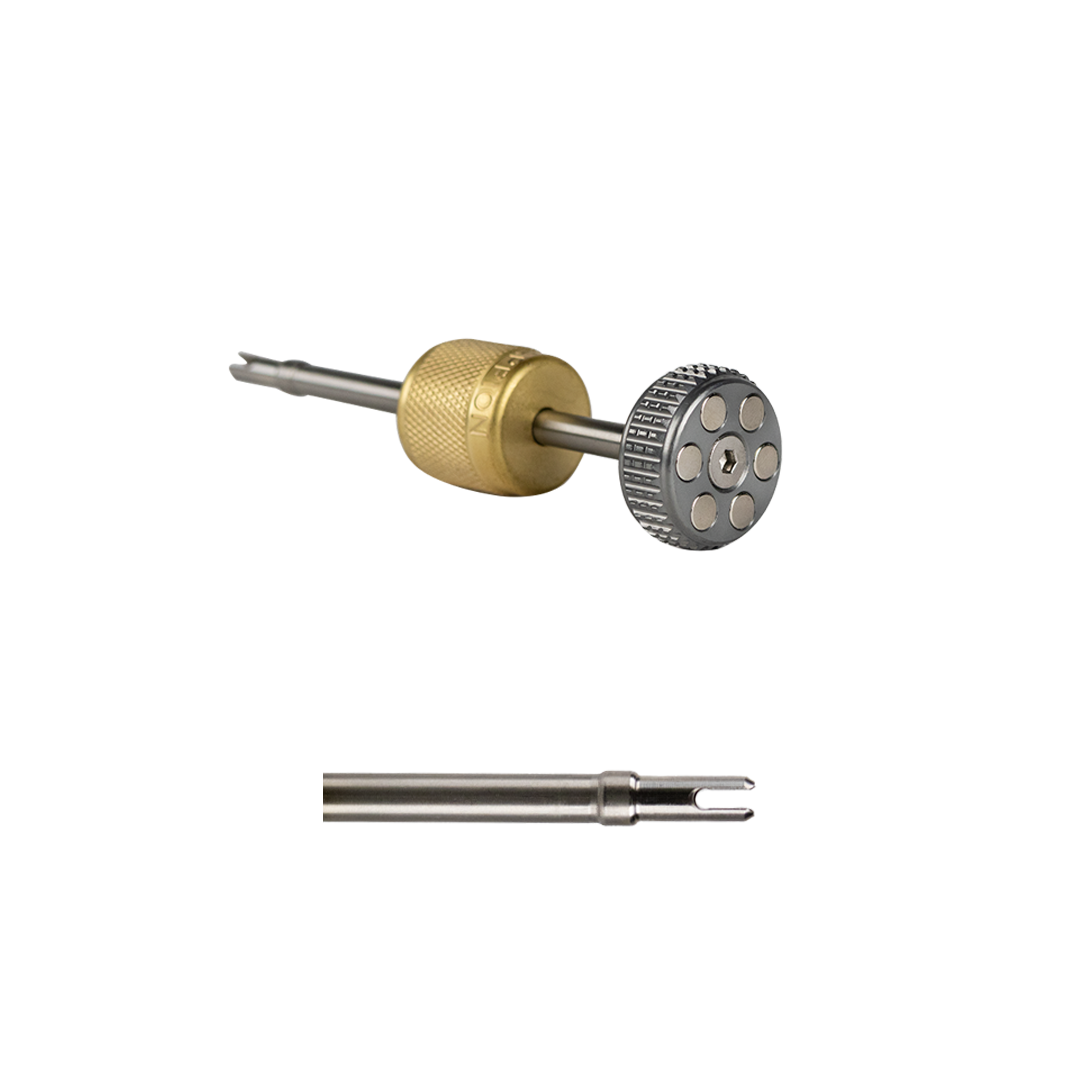

Field handling

Magnetic base and adjustable stem tip.

The magnetic stem base helps secure the stem to metal surfaces during service work, while the adjustable tip can be tightened or loosened to suit common valve core sizes and improve grip during removal or installation.

Stem Base Magnetic
Stem Tip Adjustable
