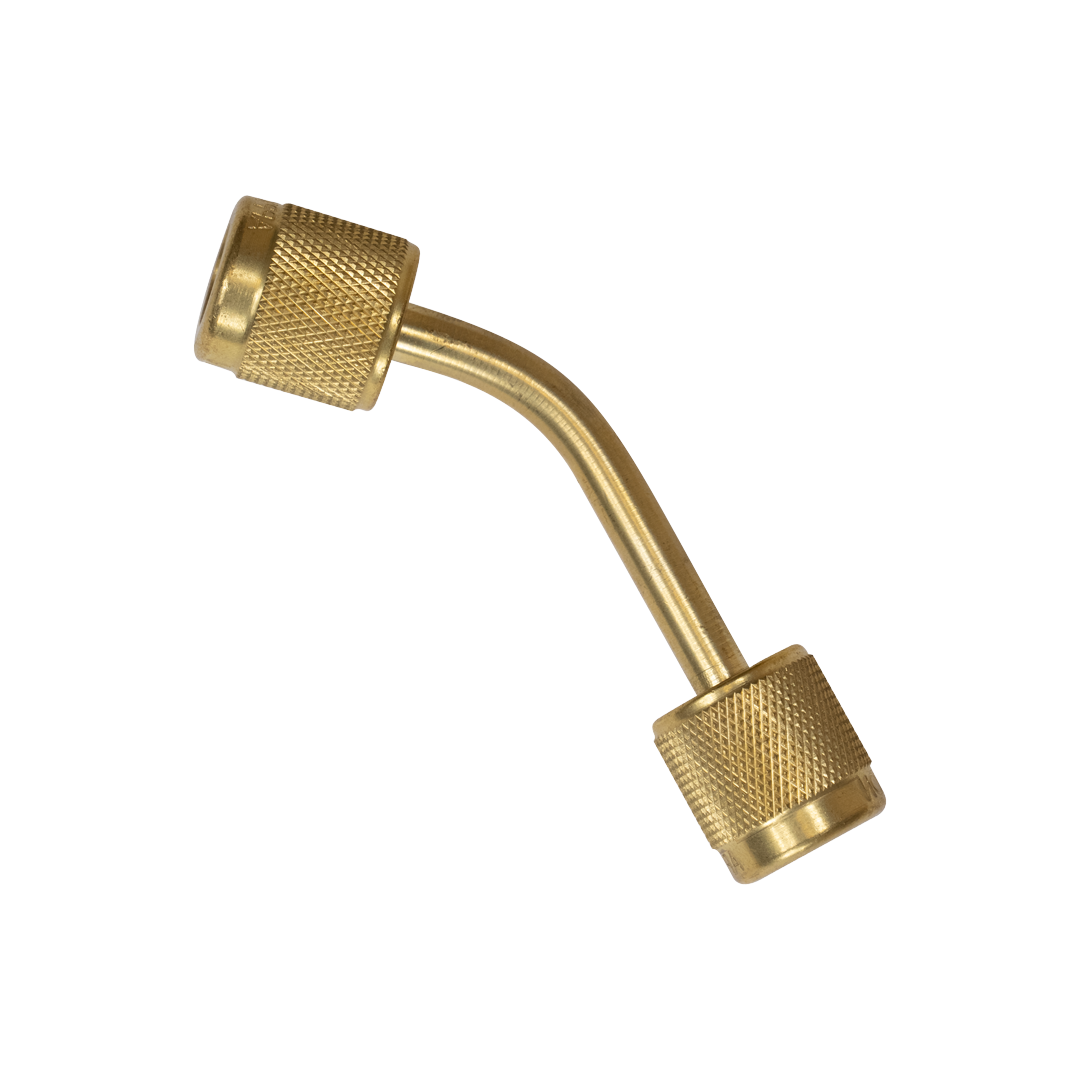

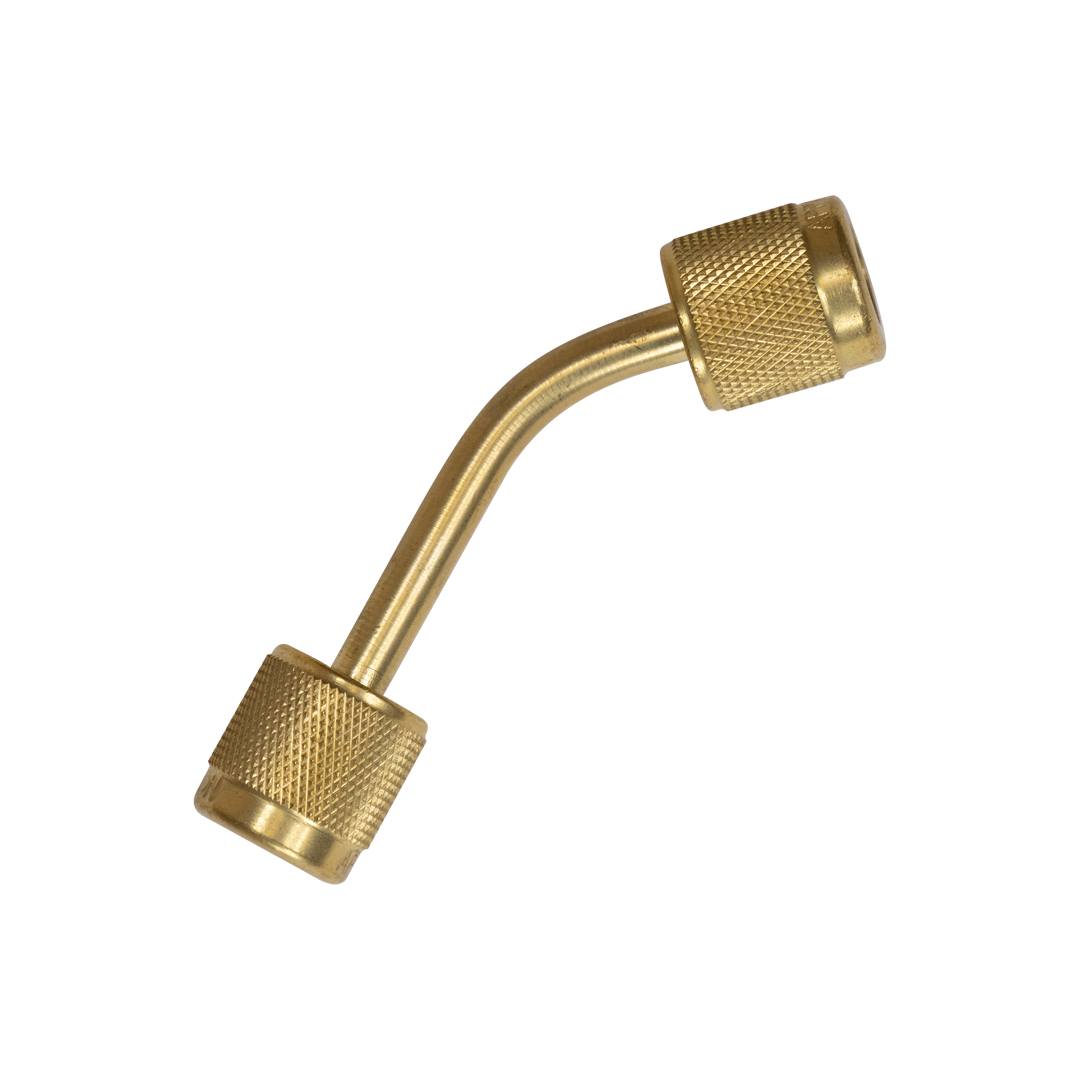

MegaSeal 4 in. 45º Vacuum-Rated Connector

45º vacuum-rated connector for reaching awkward 1/4 in. service ports while maintaining a low-volume, full-pressure connection for evacuation, diagnostics and pressure work.

Available exclusively through your local distributor
SKU VFL45L
UPC 818369010543
Fitting Size 1/4 in. Female Flare to 1/4 in. Female Flare
Length 4 in.
Bend 45º
Vacuum Rating 20 microns
Working Pressure 800 PSI
Burst Pressure 4000 PSI
Compatible Repair Kit 1/4 in. Gasket Kit / KT11AA-R
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

VFL45L

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

45º access connector

Reach tight service ports without adding unnecessary leak points.

The VFL45L MegaSeal connector is built for hard-to-reach 1/4 in. service ports where a straight hose or gauge connection can be awkward. Its 45º bend helps improve access while the seamless connector body keeps the connection simple and vacuum-ready.

  • Vacuum-rated to 20 microns for evacuation and diagnostic work.
  • Designed for high-pressure refrigerants, including R410A.
  • 45º bend helps reach 1/4 in. ports in tight areas.
  • Seamless construction helps eliminate additional leak points.
  • Ultra-low internal volume supports accurate vacuum and pressure measurement.

Key product specs

Part Number VFL45L
Fitting Layout 1/4 in. FFL to 1/4 in. FFL
Connector Length 4 in.
Bend Angle 45º
Vacuum Rating 20 microns
Working Pressure 800 PSI
Burst Pressure 4000 PSI

*Specifications based on Omni Tools and Appion VFL45L product information.

MegaSeal connection

Vacuum-rated for critical parts of the job.

MegaSeal fittings are designed for pressure and vacuum work so the connector is not the weak point during evacuation, diagnostics or recovery setup. The low-volume design helps keep readings reliable when paired with vacuum gauges.

Vacuum 20 microns
Pressure 800 PSI working

Tight access work

Use the 45º body where straight fittings get awkward.

The 4 in. body and 45º bend are useful for service ports in hard-to-reach spots, especially where the hose or gauge needs clearance from panels, housings or surrounding pipework.

Access Angle 45º bend
Port Size 1/4 in. flare
