2-Valve Spirit Aluminium Manifold Kits

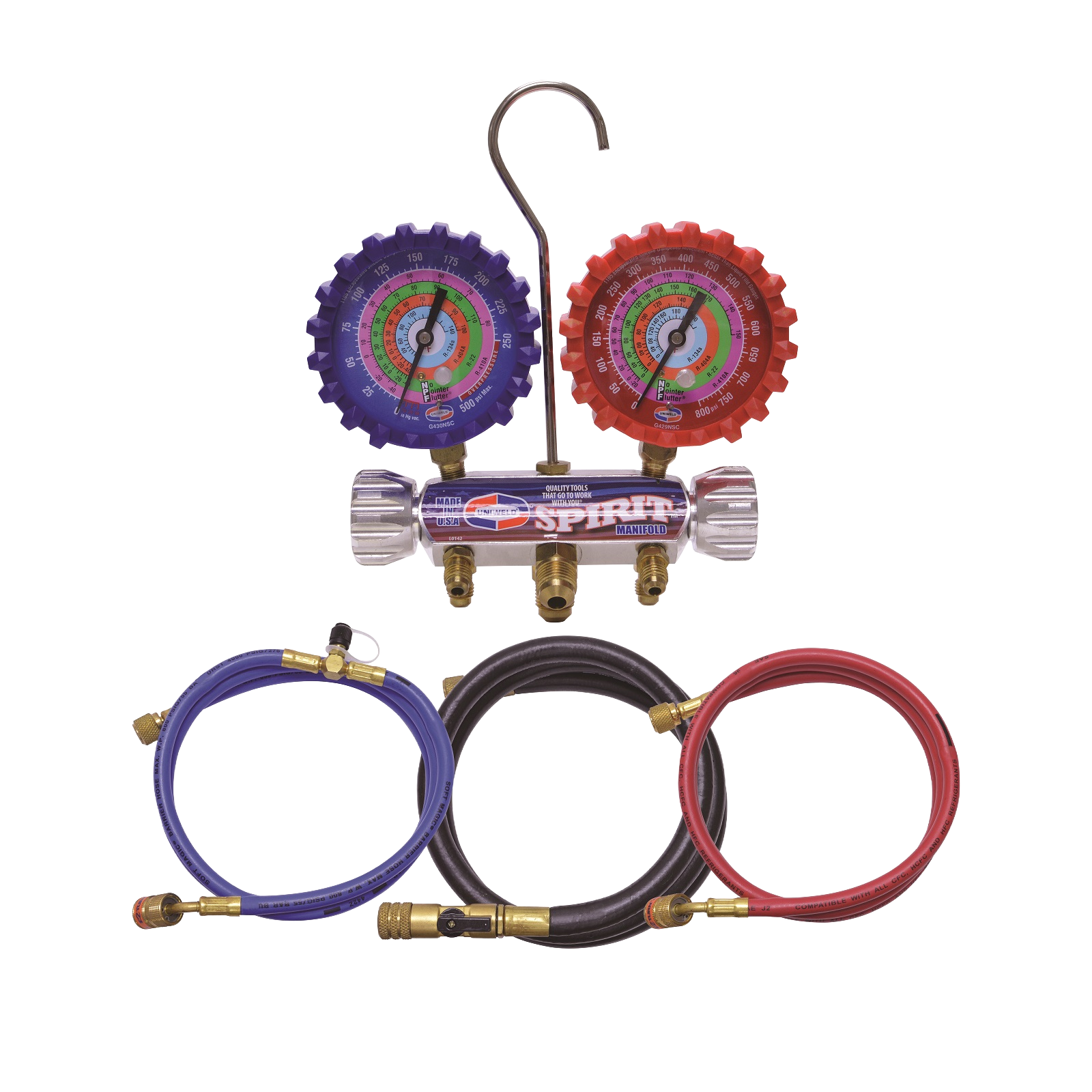

The UW-USAM3EZ range combines a lightweight Uniweld Spirit aluminium manifold, large PSI/BAR gauges and a 3 ft EZ-Turn Soft Magic® hose set for HVAC/R charging, recovery, pressure testing and diagnostic work.
Technical snapshot
Key UW-USAM3EZ manifold details.
Two refrigerant configurations are available through Omni Tools, both built around Uniweld’s lightweight Spirit aluminium manifold platform and supplied with 3 ft EZ-Turn Soft Magic® hoses.HVAC/R manifold service
Read system pressure, control flow and connect with less hose strain.
The UW-USAM3EZ range is suited to technicians who want a lightweight analogue manifold kit for everyday HVAC/R service. The aluminium body keeps the kit easier to handle, while the colour-coded gauges and hose set support familiar low-side, high-side and centre-hose workflows.
- 2-valve manifold for charging, recovery, pressure testing and system diagnostics.
- Large PSI/BAR gauges with protective colour-coded boots.
- Easy-grip manifold handles for positive valve control.
- 3 ft red, blue and yellow EZ-Turn Soft Magic® hose set.
- Choose the refrigerant scale that matches the system being serviced.
What it helps check
Use the correct model to read operating pressures, connect service hoses and manage refrigerant flow during HVAC/R servicing, installation and maintenance work.
- System pressure readings on compatible refrigerants.
- Charging and recovery hose routing through a 2-valve manifold.
- Low-side and high-side service connections with colour-coded hoses.
Manifold selection
Match the gauge scale to the refrigerant family.
Select the kit by refrigerant, then use the hose colour path to keep the service setup clear from cylinder to manifold to system.
UW-USAM3EZ410A-8
R410A / R322-valve Spirit aluminium manifold kit with PSI/BAR gauges, protective gauge boots and a 3 ft EZ-Turn Soft Magic® hose set for R410A and R32 systems.
UW-USAM3EZ-8
R134a / R404A / R22 / R407C2-valve Spirit aluminium manifold kit with 80 mm PSI/BAR gauges, gauge boots and a 3 ft EZ-Turn Soft Magic® hose set for common service refrigerants.
Service setup
Set the manifold before opening the system.
Confirm the refrigerant, inspect the hoses and check the valves before attaching to service ports. Keep the manifold stable and use the gauge readings only within the correct refrigerant and pressure limits.
Choose the R410A/R32 model or the R134a/R404A/R22/R407C model before connecting.
Check hose condition, fittings, seals and connection points before pressurising the setup.
Keep blue to low side, red to high side and yellow to the centre service path.
Open and close manifold valves gradually, and follow the system manufacturer’s service procedure.
