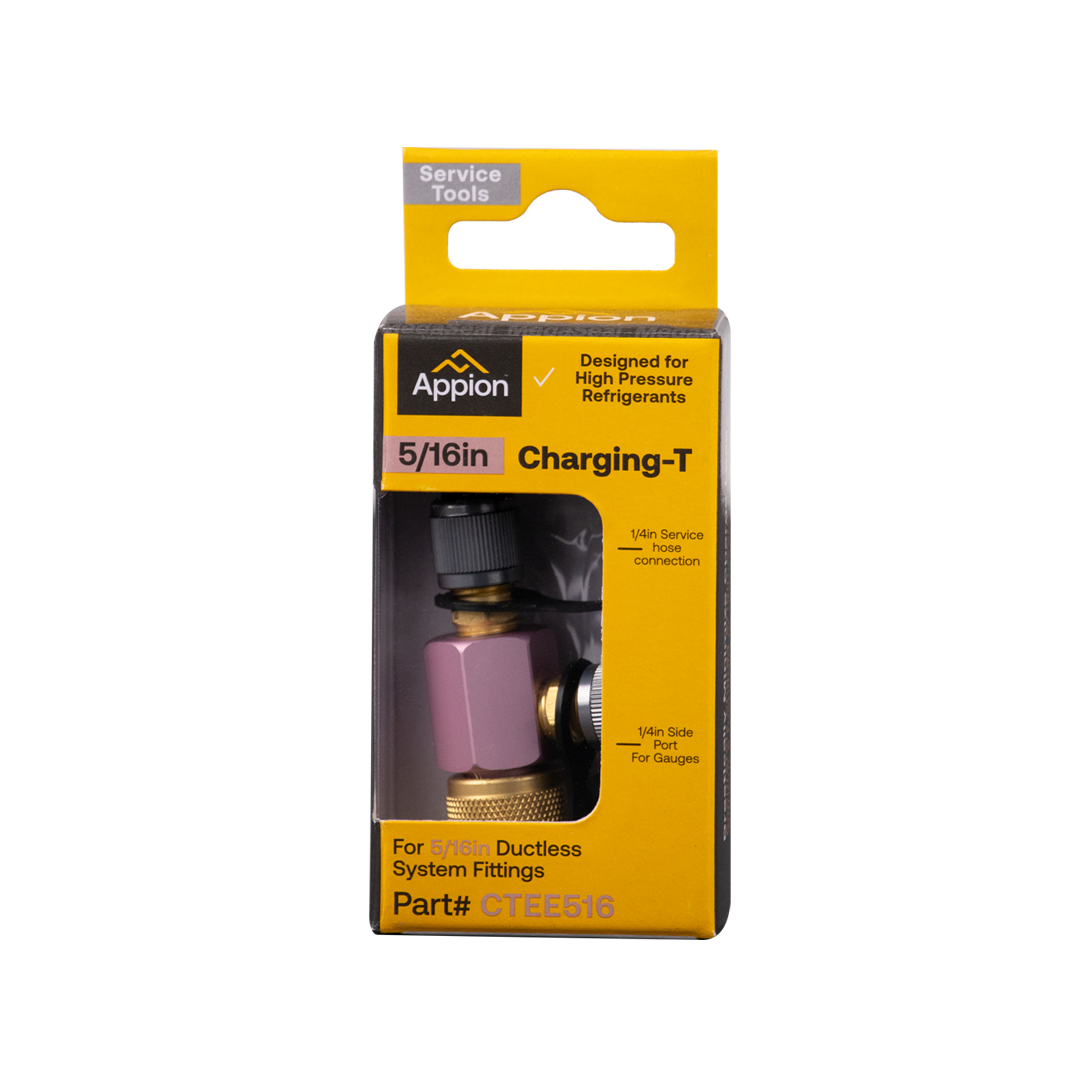

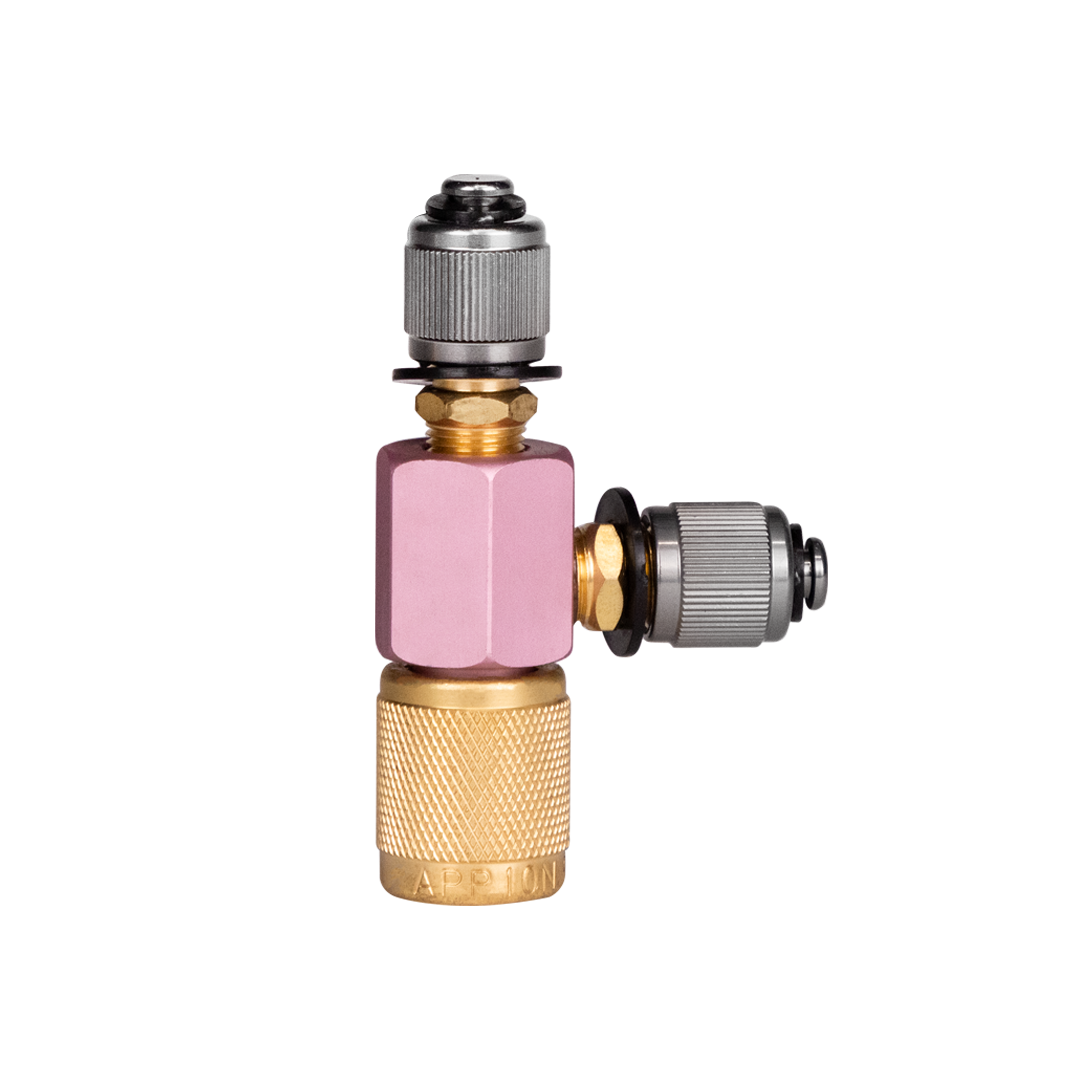

Appion CTEE516 MegaSeal Low-Loss Charging T-Fitting 5/16 inch flare Appion CTEE516 MegaSeal Low-Loss Charging T-Fitting packaging Close-up of Appion Charging-T helical barbs on the adjustable core depressor
Helical Barbs Easier core depressor adjustment
Charging-T helical barbs close-up showing the adjustable depressor design

Appion HVAC/R Tools

MegaSeal Low-Loss Charging T-Fitting 5/16 in. FL

Low-loss Charging-T for 5/16 in. service fittings, allowing refrigerant metering through one port while connecting a digital pressure/temperature gauge through the side port.

Available exclusively through your local distributor
SKU CTEE516
UPC 818369010567
Fitting Size (1) 5/16 in. Female Flare, (2) 1/4 in. Male Flare
Length 3 in.
Working Pressure 800 PSI
Burst Pressure 4000 PSI
Compatible Repair Kit 1/4 in. Gasket Kit
Side Port 1/4 in. gauge connection
Application Low-loss charging and system pressure diagnostics on 5/16 in. service fittings
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

CTEE516

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

Low-loss charging T-fitting

Take control of charging on 5/16 in. service fittings.

The CTEE516 MegaSeal Low-Loss Charging-T helps technicians meter refrigerant during the charging process without needing a full manifold or unnecessary hoses. The side port provides a simple way to connect a digital pressure/temperature gauge and monitor system pressures through the whole process.

  • Designed for 5/16 in. service fittings commonly found on ductless systems.
  • Side port allows connection of a digital pressure/temperature gauge.
  • Helps minimise refrigerant loss during charging.
  • Adjustable core depressor can be set for proper core engagement and sealing.
  • Helical barb design makes depressor adjustment easier than straight-barb designs.

Key product specs

Part Number CTEE516
Fitting Layout 1 x 5/16 in. FFL, 2 x 1/4 in. MFL
Length 3 in.
Working Pressure 800 PSI
Burst Pressure 4000 PSI
Repair Kit 1/4 in. Gasket Kit

*Specifications based on Omni Tools and Appion CTEE516 product information.

Minimise charge loss

Charge accurately without extra hoses or a manifold.

The low-loss Charging-T design helps meter refrigerant directly at the service fitting. This can reduce unnecessary hose volume and support more controlled charging on compatible 5/16 in. systems.

Charging Low-loss metering
System Port 5/16 in. service fitting

Gauge connection

Check pressure during or after charging.

The side port allows a digital pressure/temperature gauge to be connected for pressure checks and system diagnostics while the Charging-T remains installed.

Side Port 1/4 in. male flare
Adjustment Core depressor
