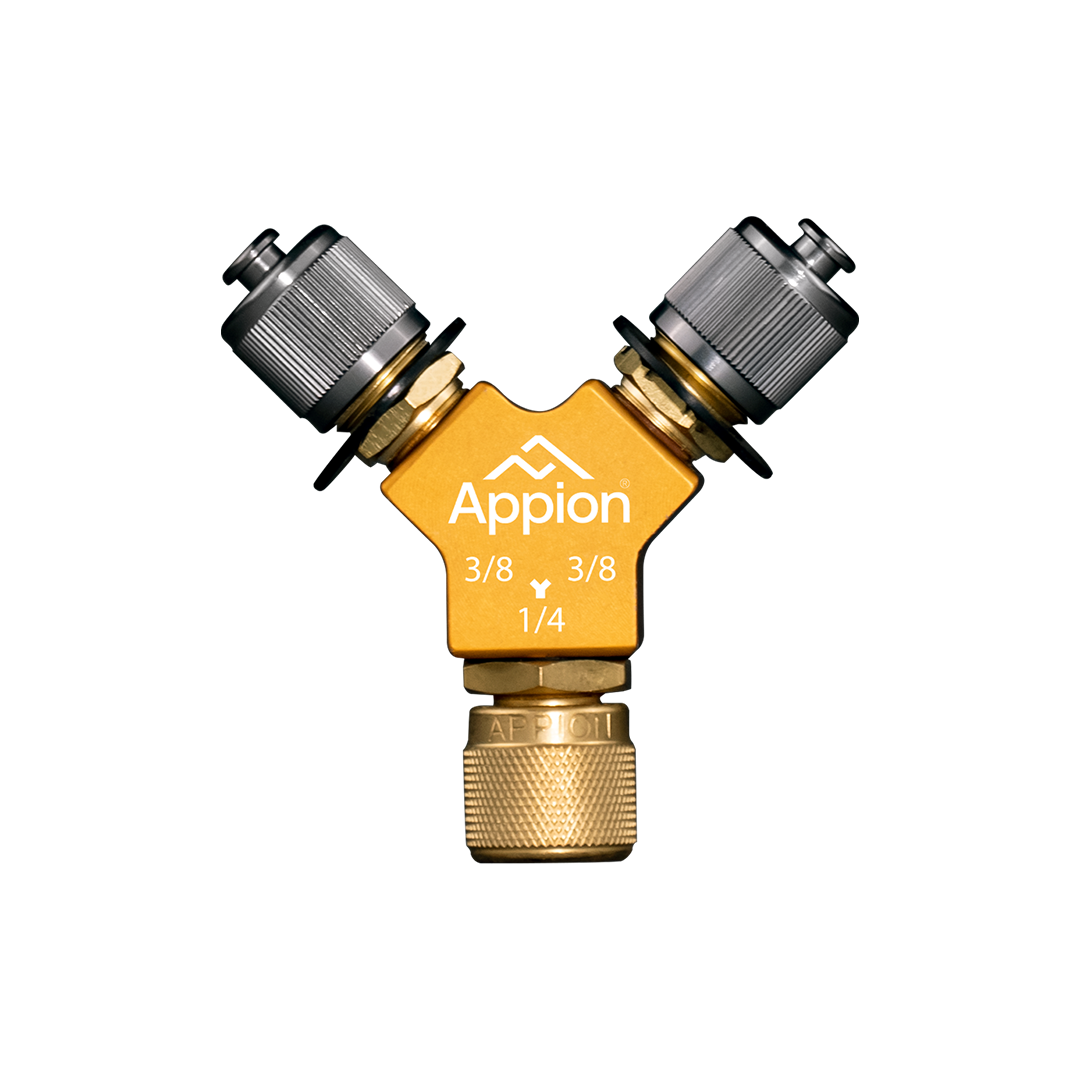

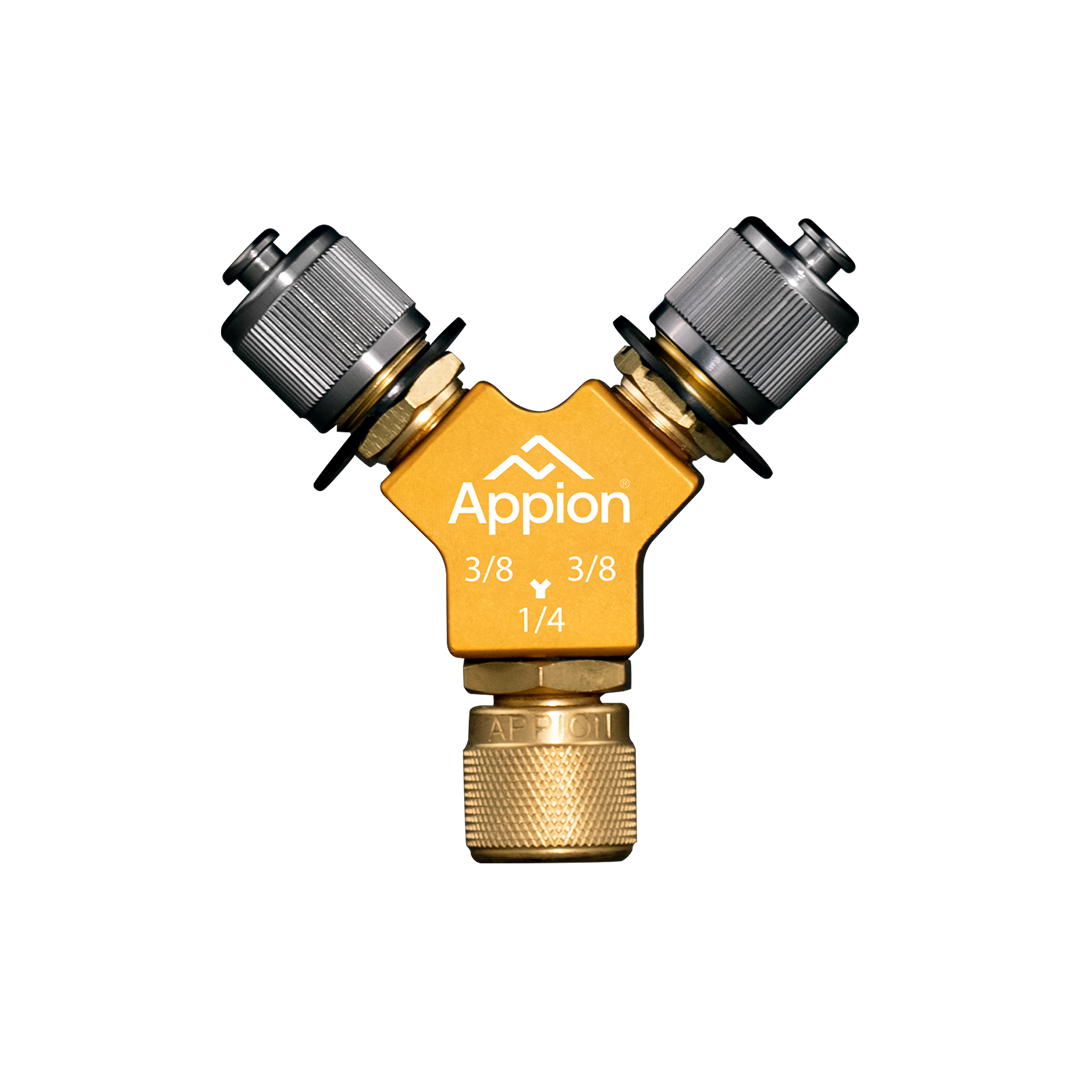

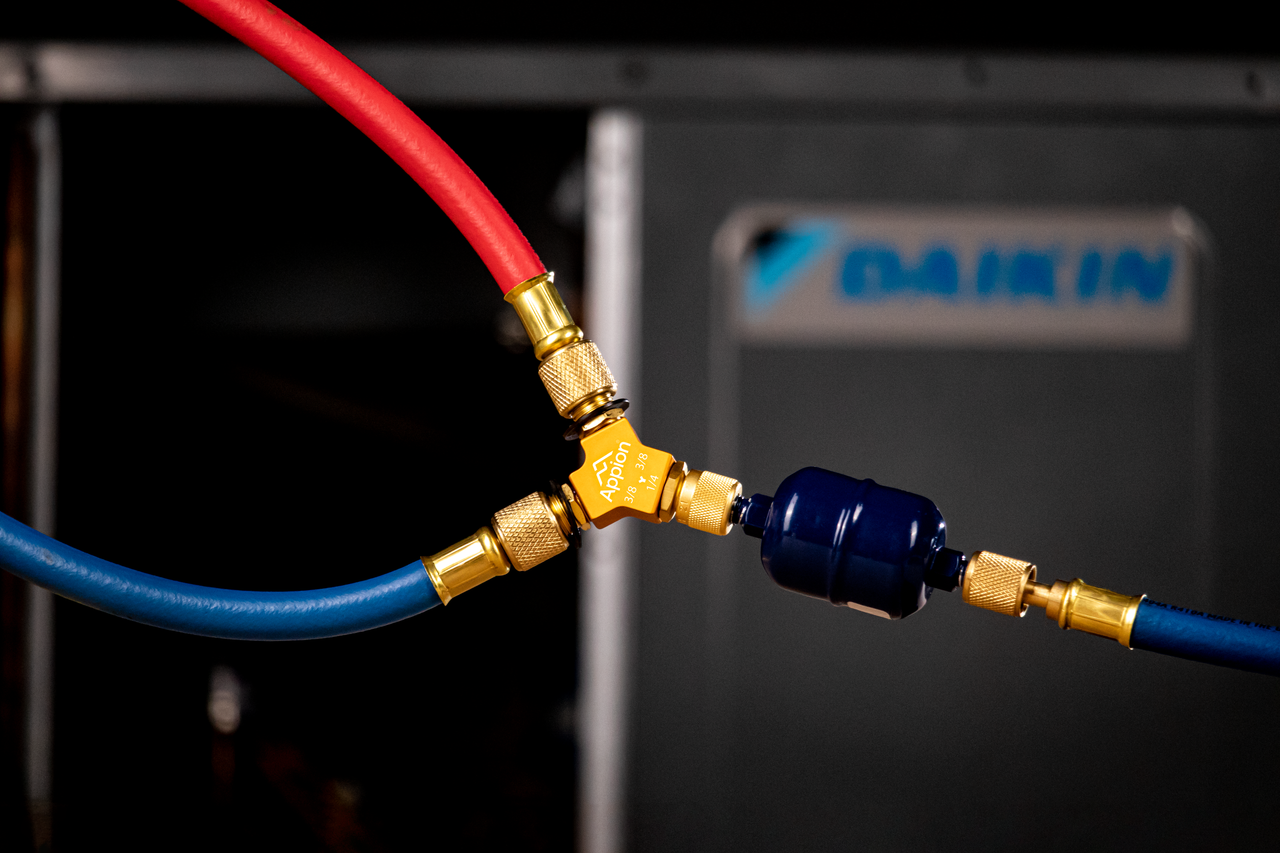

Appion SPDY14 1/4 inch Speed-Y fitting with two 3/8 inch male flare ports and one 1/4 inch female flare port Appion SPDY14 Speed-Y fitting connected to recovery hoses on an HVAC/R system Appion SPDY14 Speed-Y retail packaging
Speed-Y vs T-Fitting Why Use a Speed-Y Instead of a Manifold?
Animated Appion Speed-Y versus T-fitting flow comparison

Appion HVAC/R Tools

1/4 in. Speed-Y

High-speed Y-fitting for fast refrigerant recovery or evacuation, with two 3/8 in. male flare ports and one 1/4 in. female flare port for connecting multiple hoses to a single point.

Available exclusively through your local distributor
SKU SPDY14
UPC 818369010819
Fitting Size (2) 3/8 in. Male Flare, (1) 1/4 in. Female Flare
Tool Type MegaFlow Speed-Y fitting
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Application Recovery and evacuation
Buy From Your Local Distributor Service & Warranty Compatible Parts

Ask for Appion Part #

SPDY14

Buying from unauthorised online sellers may affect product support or warranty. For the best experience, purchase through an authorised local distributor.

Find a Distributor

High-speed Y-fitting

Split one access point into a faster full-flow setup.

The MegaFlow 1/4 in. Speed-Y makes it easy to connect multiple hoses to a single point, helping technicians improve flow during recovery or evacuation without relying on a traditional manifold layout.

  • Large inner diameter for unrestricted Full Flow.
  • Two 3/8 in. male flare ports and one 1/4 in. female flare port.
  • Vacuum-rated to 20 microns for deep evacuation work.
  • Rated for high-pressure refrigerants such as R410A.
  • Useful with vacuum pumps or recovery machines where multiple hoses improve flow.

Key performance specs

Fitting Layout 2 x 3/8 in. MFL, 1 x 1/4 in. FFL
Working Pressure 5,516 kPa / 800 PSI
Burst Pressure 27,579 kPa / 4000 PSI
Vacuum Rating 20 microns
Use Recovery or evacuation
System Type Large multi-port systems

*Specifications based on the Appion SPDY14 product information.

Large multi-port systems

Make limited pump ports less limiting.

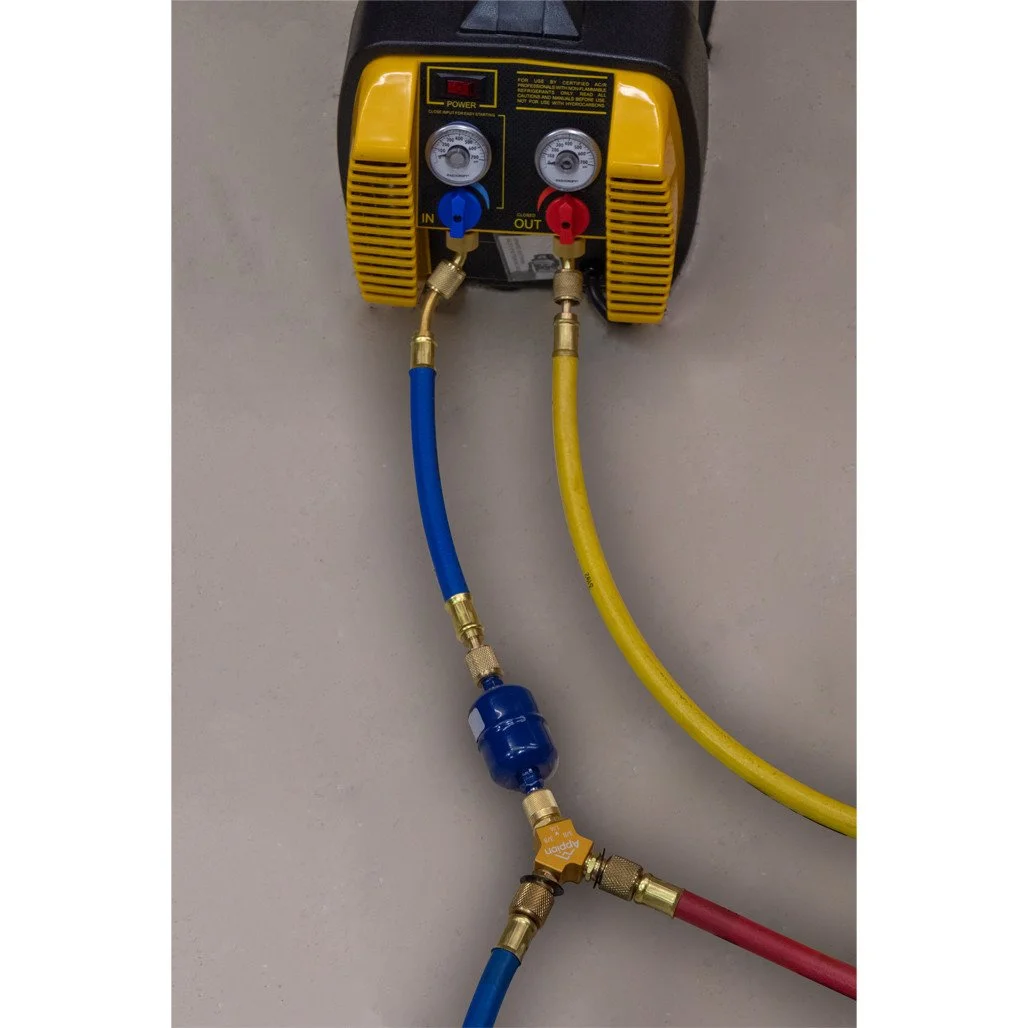

On larger systems, the Speed-Y can help make a vacuum pump or recovery setup more efficient by allowing multiple hoses to feed a single point. The goal is simple: reduce restriction and let the system move faster.

Flow Path Multiple hoses
Connection Point Single access point

Vacuum and pressure rated

Built for deep vacuum and high-pressure refrigerants.

The SPDY14 is vacuum-rated to 20 microns and rated for high-pressure refrigerants such as R410A, making it suitable for critical recovery and evacuation stages when leaks or restrictions can cost time.

Vacuum Rating 20 microns
Pressure Rating 800 PSI working
