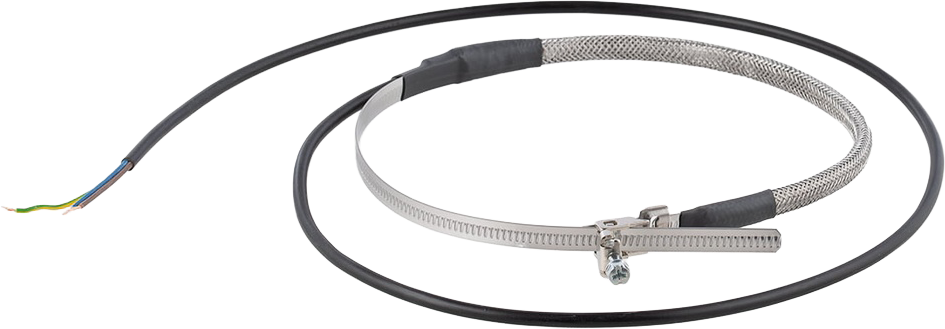

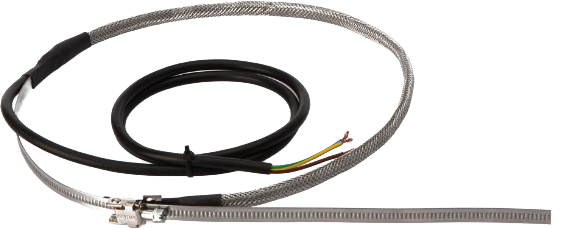

Calorflex CCCx compressor sump heater with metal clamp and braided protection Calorflex compressor crankcase sump heater with clamp, lead and braided sheath
Compressor Sump Heater Range 35W to 130W crankcase heaters for HVAC/R compressor oil protection
Calorflex CCCA0001 to CCCA0007 sump heater range banner

Calorflex

Sump Heater / Crankcase Compressor Heater Range

Calorflex CCCx sump heaters are external compressor crankcase heaters used to keep compressor oil warm during off-cycles and help reduce refrigerant migration into the oil.

Available exclusively through your local distributor
Brand Calorflex
SKU Range CCCx / CCCA0001–CCCA0007
Product Type Compressor sump / crankcase heater range
Power Options 35W, 40W, 45W, 55W, 65W, 75W and 130W
Fitment Range 110–380 mm compressor diameter
Supply Voltage 110V to 400V platform; 230V listed CCCA models
Construction Steel clamp, multi-wire metal braiding and heat-shrink insulation
Lead Length 1000 mm standard or on request
Omni Weight Varies by model
Omni Dimensions Fitment diameter listed by model
Buy From Your Local Distributor Service & Warranty Product Resources

Ask for Part #

CCCx

External compressor sump heaters for maintaining oil temperature during off-cycles, supporting smoother start-up and helping protect compressors in HVAC/R systems.

Find a Distributor

Technical snapshot

Seven listed sump-heater models from 35W to 130W.

Core CCCx range details from Omni Tools and Calorflex: compressor diameter range, wattage, clamp length, heater length, lead length and construction.
Range CCCA0001–CCCA0007 Seven listed model options
Power 35W to 130W Matched to compressor diameter
Diameter 110–380 mm Model-dependent fitment range
Clamp Length 575–1200 mm Steel clamp with screw fastening head
Heater Length 285–935 mm Heating section varies by model
Lead 1000 mm standard Grounding wire included

Compressor oil protection

Keep crankcase oil warmer during the compressor off-cycle.

A sump heater helps keep the compressor warmer than colder parts of the refrigeration circuit while the system is off. This helps reduce refrigerant condensing into the oil, supporting smoother start-up and helping lower the risk of oil dilution, foaming and wear.

  • External compressor sump / crankcase heater range for HVAC/R systems.
  • Helps maintain compressor oil temperature during off-cycles.
  • Helps reduce refrigerant migration into compressor oil.
  • Suited to refrigeration systems, air conditioning, heat pumps and chillers.
  • Metal clamp supports practical installation around the compressor body.
  • Metal braiding provides mechanical protection and supports earthing.

Where it earns its keep

Use the CCCx range when a compressor needs crankcase heating for off-cycle protection, replacement service work or maintenance on HVAC/R equipment exposed to cold ambient conditions or long off periods.

  • Condensing units, refrigeration packs and commercial refrigeration equipment.
  • Heat pumps, chillers and air conditioning compressors.
  • Service replacement where the compressor diameter and wattage must be matched.

Model selector

Match the heater to compressor diameter and wattage.

Select the model that suits the compressor body diameter, the required wattage and the available mounting position around the sump or crankcase.

Compact option

CCCA0001

35W 110–180 mm diameter

Clamp length 575 mm with 285 mm heating section.

Compact option

CCCA0002

40W 130–185 mm diameter

Clamp length 590 mm with 350 mm heating section.

Mid-size option

CCCA0003

45W 150–290 mm diameter

Clamp length 920 mm with 410 mm heating section.

Mid-size option

CCCA0004

55W 170–295 mm diameter

Clamp length 935 mm with 475 mm heating section.

Larger option

CCCA0005

65W 210–330 mm diameter

Clamp length 1045 mm with 600 mm heating section.

Larger option

CCCA0006

75W 230–380 mm diameter

Clamp length 1200 mm with 665 mm heating section.

Universal high-output option

CCCA0007

130W 315–380 mm diameter

Clamp length 1200 mm with 935 mm heating section.

1 Measure the compressor Check the compressor body diameter where the heater will sit and match it to the listed range.
2 Confirm the wattage Select the wattage required by the compressor application, site specification or service replacement requirement.
3 Check the lead and earth Confirm the connection point, 1000 mm standard lead length and correct earthing before energising.

Installation checks

Before fitting a compressor sump heater.

Fitment should suit the compressor body, electrical supply and site procedure. Confirm the heater is secured around the correct area of the compressor and is not pinched, overlapped, damaged or placed against unsuitable surfaces.

Isolate before work Follow electrical isolation and HVAC/R service procedures before installing or replacing the heater.
Secure the clamp Use the metal clamp correctly and avoid over-tightening, sharp bends or mechanical damage to the heating cable.
Keep the heater external The CCCx range is mounted outside the compressor and should be positioned according to the compressor and site requirements.
Use the correct supply Check voltage, lead routing, earthing and temperature controls before returning the equipment to service.
