Etched Foil Heater Self-Adhesive Range

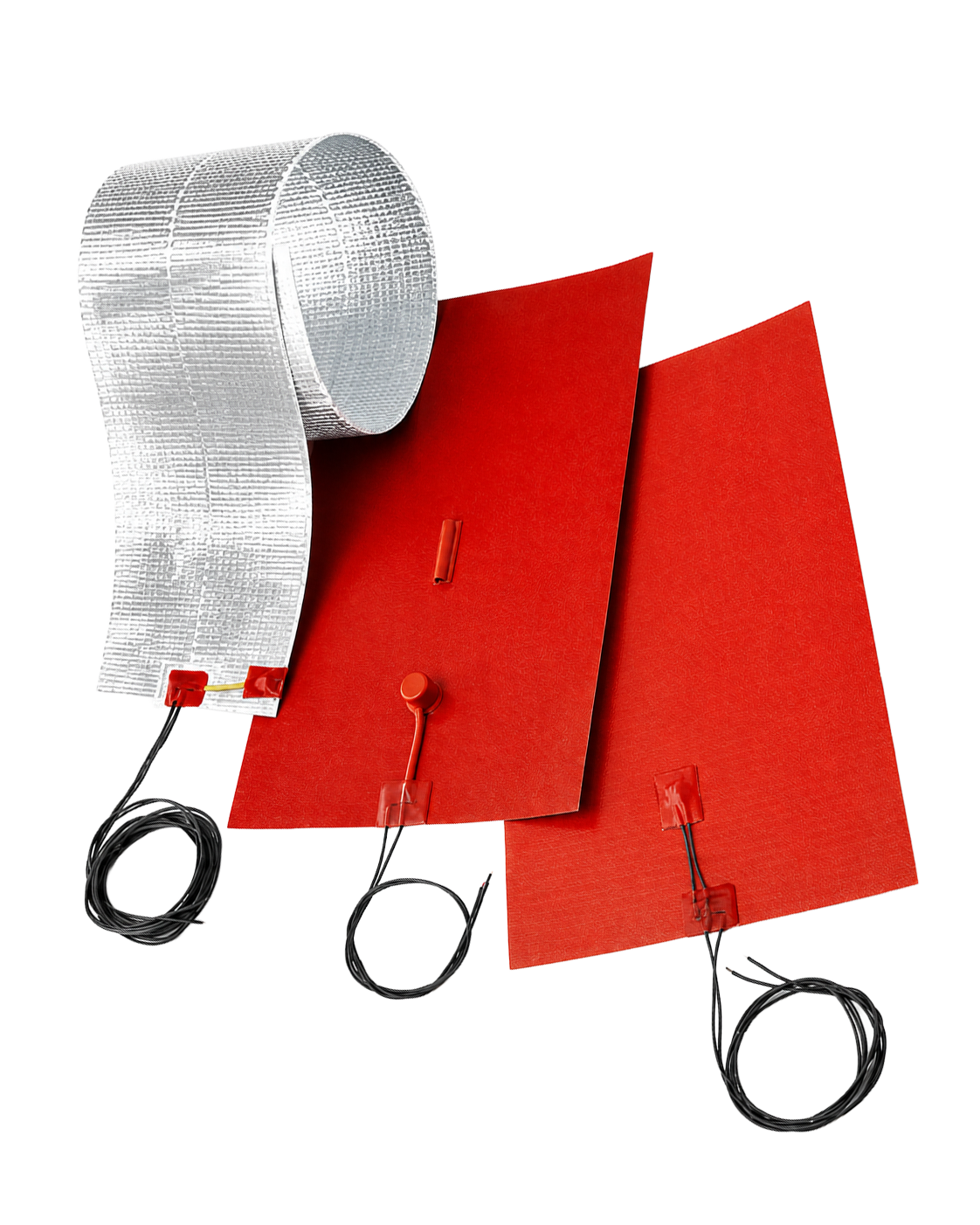

The Calorflex Etched Foil Heater range is designed for applications that require fast, even and controlled surface heating. These flexible flat heaters use printed-circuit style construction, with a nickel/chrome alloy resistive circuit enclosed between layers of insulating material. This allows the heater to deliver efficient heat transfer across a flat surface while remaining compact and adaptable for different equipment designs.

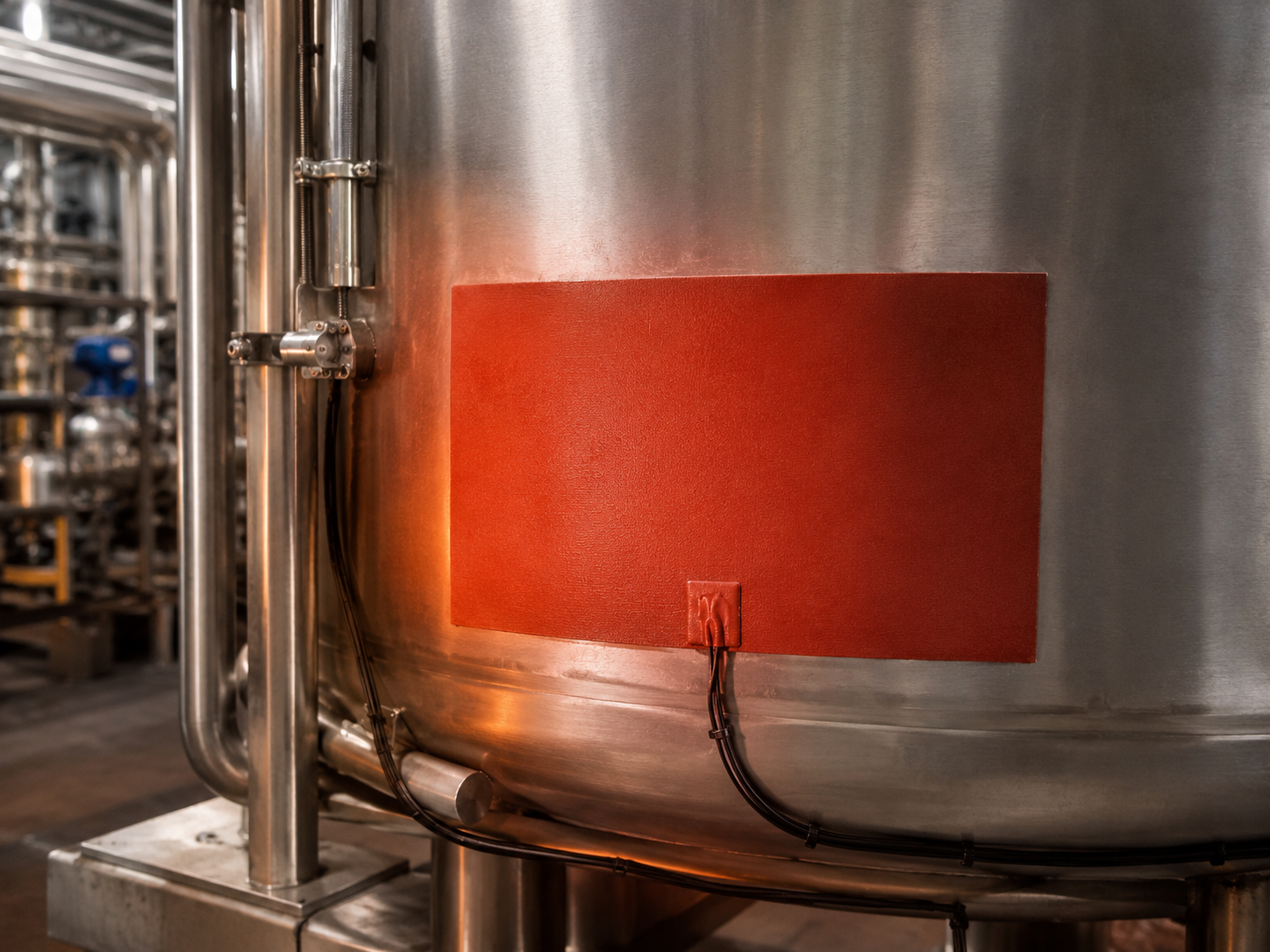

Etched foil heaters are suitable for a wide range of surface and fluid heating applications, from advanced technical industries through to catering equipment such as bain-marie units, hot plates, food warmers and heated surfaces. Calorflex also notes that different dimensions and power ratings can be produced on request after a feasibility check, making this style of heater suitable for both standard replacement and custom heating applications.

Models in the Range

CEFB0363 - 650W 275mm x 375mm
CEFB0364 - 700W 270mm x 460mm
CEFB0365 - 1200W 290mm x 470mm
CEFB0366 - 1500W450mm x 575mm

Key Features

• Flexible flat etched foil heaters

• Designed for surface and fluid heating applications

• Nickel/chrome alloy resistive circuit

• Printed-circuit style heater construction

• Suitable for hot plates, bain-marie units, heated surfaces and equipment heating

• Available from 650W to 1500W

• Sizes from 275mm x 375mm to 450mm x 575mm

• Calorflex CEFx platform supports supply voltages from 1.5V to 400V

• Maximum external dimensions up to 3000mm x 600mm

• EC certification available

• Produced and tested according to EN60335
